Misalignment Spacer 3/4 X 1/2

OVERVIEW

When you are pushing the limits of your off-road air-cooled Volkswagen, suspension travel and articulation are the names of the game. Standard rod ends and Heim joints are incredible for providing a solid, slop-free connection, but they often face physical limitations when it's time to cycle the suspension through its full range of motion. That is where the Latest Rage Misalignment Spacer comes into play. This precision-engineered component is designed to fit snugly into a 3/4-inch rod end, effectively reducing the bore to a 1/2-inch bolt size while providing the necessary clearance for the joint to pivot further than a standard mounting setup would allow. By moving the pivot point away from the mounting bracket, you eliminate the mechanical interference that leads to binding, ensuring your sand rail or Baja Bug can handle the rough stuff without snapping expensive components.

At Appletree Automotive, we know that reliability in the dunes or on the trail starts with the small details. These misalignment spacers are manufactured to exacting tolerances to ensure a perfect fit every time. Whether you are building a custom long-travel front end, a heavy-duty steering linkage, or a rear trailing arm setup, these spacers provide the professional-grade finish your project deserves. They are built to withstand the high-stress environments of off-road racing and recreational thrashing alike. Don''t let limited joint rotation hold back your vehicle''s performance; upgrade your fabrication project with these essential spacers and experience the smooth, bind-free articulation that separates the podium finishers from the rest of the pack.

FITMENT

While this is a universal fabrication part, it is most commonly utilized in the following air-cooled VW and off-road applications:

• Custom Sand Rails: Ideal for suspension links and steering tie-rods.
• Baja Bugs: Used in modified front beams and rear suspension pivots.
• Dune Buggies: Perfect for Manx-style or tube-chassis builds requiring high-angle articulation.
• Off-Road Race Cars: Standard equipment for Class 1, Class 5, and Class 10 builds.
• Woods Buggies: Essential for navigating tight, uneven terrain where suspension flex is critical.
• Custom Steering Systems: Fits 3/4-inch Heim joints used in heavy-duty rack and pinion setups.

SPECS

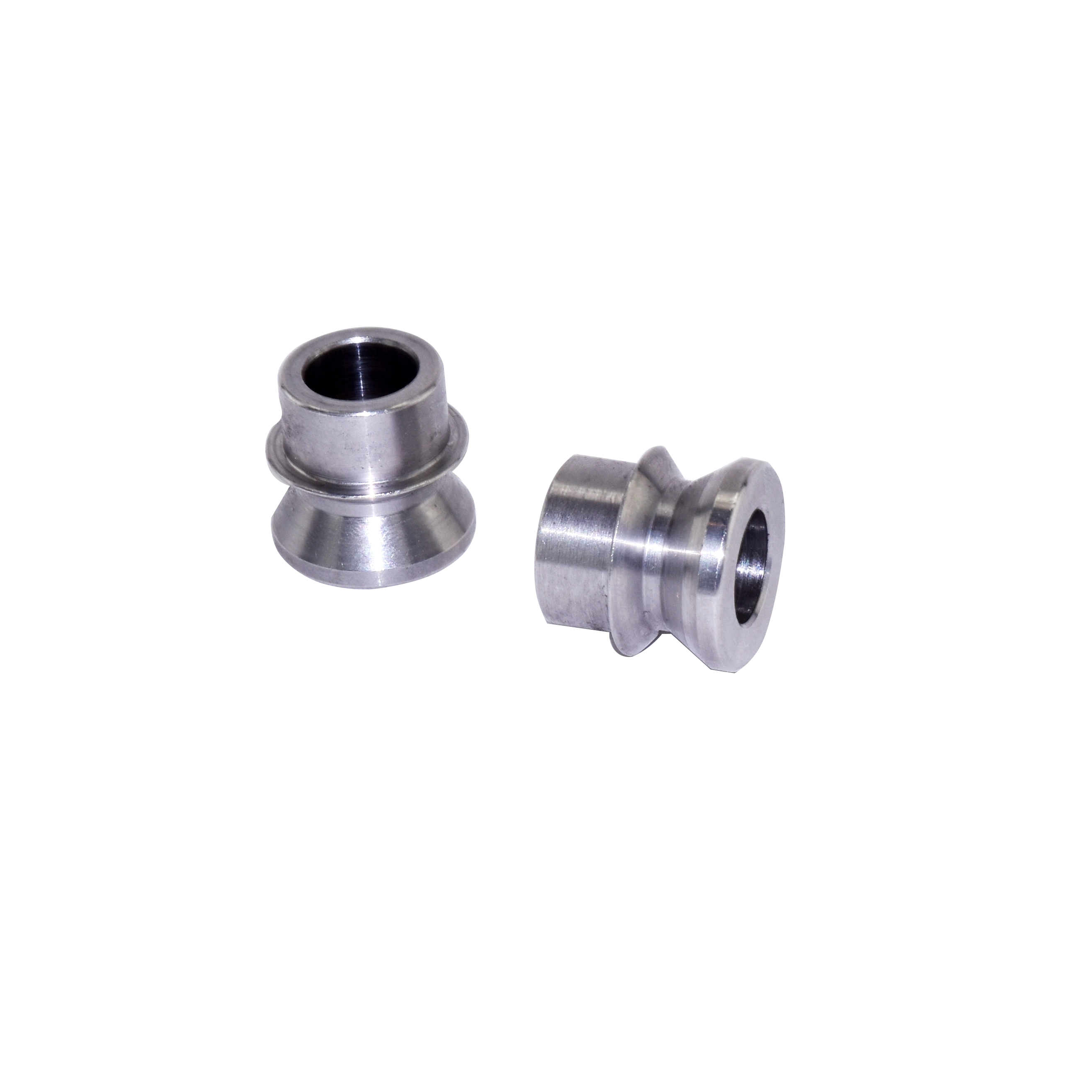

• Outer Diameter (OD): 3/4 Inch (Designed to fit 3/4-inch ID Rod Ends).
• Inner Diameter (ID): 1/2 Inch (Accepts a 1/2-inch Grade 8 Bolt).
• Height / Extension: 1/2 Inch deep.
• Material: High-strength machined steel for maximum durability.
• Finish: Zinc plated for superior corrosion resistance in harsh environments.
• Manufacturer: Latest Rage.
• Part Number: FAB-4035.
• Quantity: Sold individually (Each).

PRO TIPS

1. Always Check Your Degrees of Articulation

When installing these misalignment spacers, it is crucial to cycle your suspension or steering through its entire range of motionfrom full "bump" to full "droop"before finalizing your mounts. While these spacers significantly increase the angle a Heim joint can achieve, you must ensure that the body of the rod end does not still make contact with your mounting tabs at the extremes. If you find it is still binding, you may need to adjust the angle of your mounting brackets or utilize a different spacer height to achieve the clearance necessary for a safe and functional setup.

2. Use Grade 8 Hardware for All Suspension Connections

A misalignment spacer is only as strong as the bolt holding it in place. Because these spacers reduce the hole size to 1/2 inch, you are concentrating a significant amount of force on that hardware. We always recommend using high-quality Grade 8 bolts with hardened washers and nyloc nuts. This ensures that the clamping force remains consistent and that the bolt can handle the shear loads associated with high-travel off-road suspension. Never settle for hardware store Grade 5 bolts when your safety and the integrity of your VW are on the line.

3. Maintenance and Inspection Intervals

Off-roading is incredibly hard on spherical bearings and spacers. Every time you prep your car for a trip, take a moment to inspect the spacers for any signs of "egging" or deformation. Ensure that the spacer is still seated tightly within the rod end and that there is no excessive play. If you play in the mud or salt air, the zinc plating on these FAB-4035 spacers will help prevent rust, but a light coating of dry lubricant can keep the joint moving freely and prevent grit from grinding down the mating surfaces, extending the life of both the spacer and the Heim joint.
