JayCee Mag-Plate Sump Drain With O-Ring, Silver

OVERVIEW

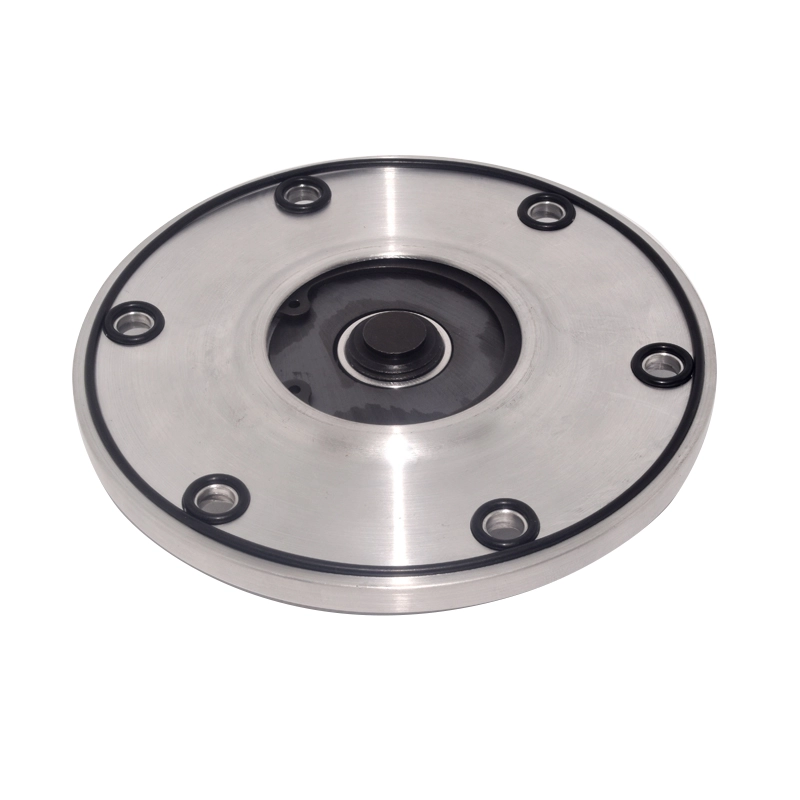

When it comes to the longevity of your air-cooled engine, the smallest details often make the biggest difference. The JayCee Mag-Plate Sump Drain is a precision-engineered masterpiece designed to replace the flimsy, leak-prone factory stamped steel plates. Crafted from high-grade 6061 T6 billet aluminum and finished in a striking silver anodize, this plate does more than just look good. It utilizes a high-quality Buna rubber O-ring seal, which effectively eliminates the need for messy, unreliable paper gaskets that are notorious for weeping oil. By providing a rigid, flat mating surface, the JayCee Mag-Plate ensures a rock-solid seal that can withstand the vibrations and thermal expansion cycles common in high-performance Volkswagen engines.

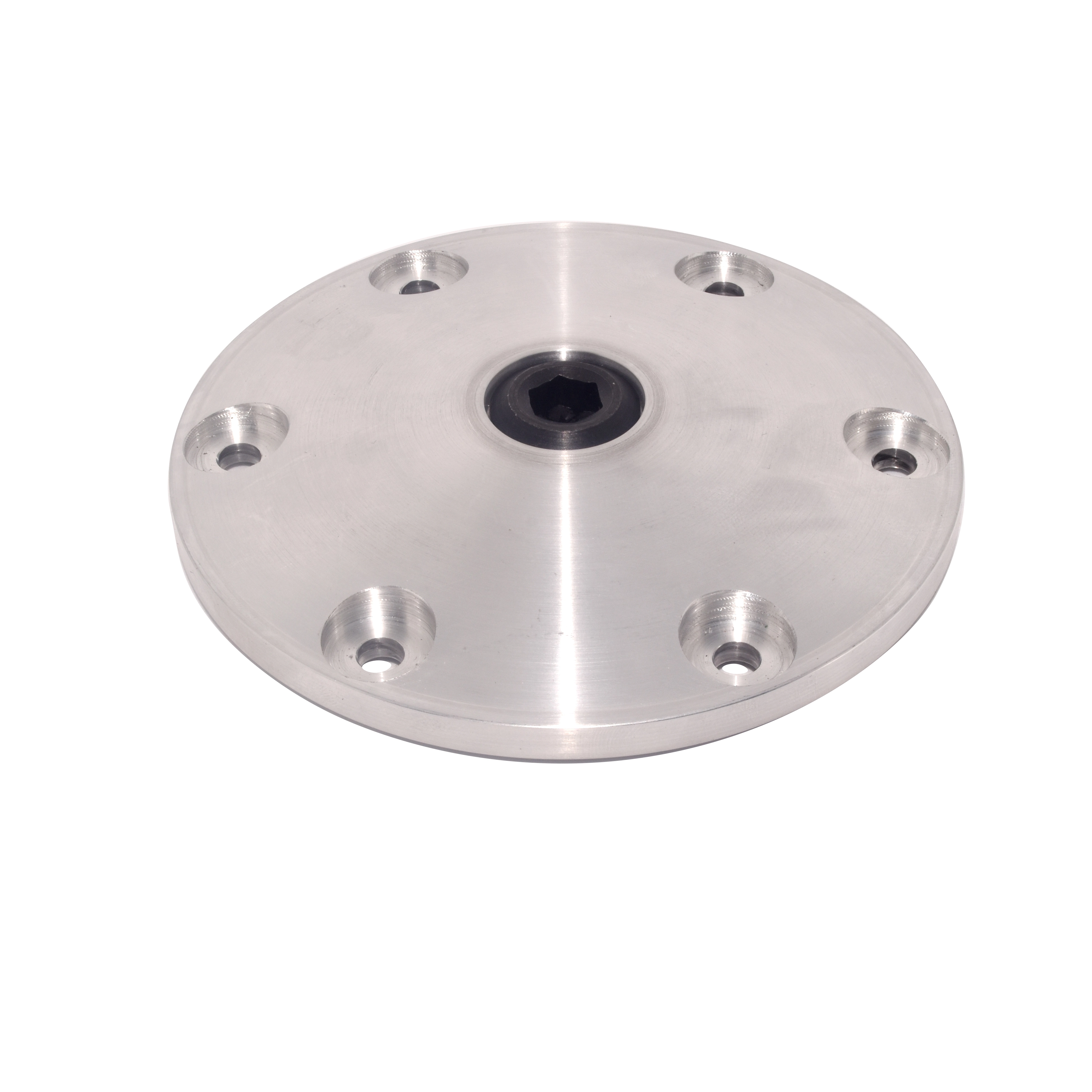

Beyond its superior sealing capabilities, the Mag-Plate serves as a critical diagnostic tool for your engine. It features a powerful, snap-ringed magnet that is strategically positioned to trap ferrous metal particles circulating in your oil. By capturing these contaminants before they can enter the oil pump or reach your bearings, you are adding an essential layer of protection to your rotating assembly. During every oil change, the flush-mount Allen-head drain plug allows for a clean and efficient drain, while the magnet provides an immediate visual report on the internal health of your engine. If you see metal "fuzz" on the magnet, you know exactly what is happening inside your case before a minor issue turns into a catastrophic failure.

FITMENT

This JayCee Mag-Plate is designed for all standard 6-bolt VW Type 1, 2, and 3 engine cases including:

• Volkswagen Beetle: 1950 through 1979 (All Type 1 engines)
• Volkswagen Karmann Ghia: 1956 through 1974
• Volkswagen Bus / Transporter: 1950 through 1971 (Type 1 and Type 2 upright engines)
• Volkswagen Thing (Type 181): 1973 through 1974
• Volkswagen Type 3 (Squareback, Fastback, Notchback): 1962 through 1973
• Aftermarket Cases: Fits most AS41 and AS21 performance engine cases.

SPECS

• Material: CNC Machined 6061 T6 Billet Aluminum
• Finish: Silver Anodized for corrosion resistance and aesthetics
• Seal Type: Replaceable Buna Rubber O-ring (No gasket required)
• Magnet: High-strength, secured with a stainless steel snap-ring
• Drain Plug: Flush-mount Allen-head design for maximum ground clearance
• Bolt Pattern: Standard Volkswagen 6-bolt sump pattern
• Country of Manufacture: Proudly Made in the USA

PRO TIPS

Tip 1: Preparation is Key for a Leak-Free Seal

While the JayCee Mag-Plate is designed to be a "gasket-less" system, its performance depends on the condition of your engine case. Before installation, use a plastic scraper or solvent to completely remove any remnants of old paper gaskets or RTV silicone from the case mating surface. Even a tiny piece of leftover debris can prevent the Buna O-ring from seating perfectly. Once the surface is clean and dry, apply a very light film of fresh engine oil to the O-ring itself. This helps the O-ring slide into place without binding or pinching as you tighten the nuts, ensuring a lifetime of leak-free operation.

Tip 2: Reading the Magnet During Oil Changes

The magnet in your Mag-Plate is your engine''s "black box" recorder. Every time you remove the plate or the drain plug, pay close attention to what the magnet has collected. A very fine, greyish "paste" is generally considered normal wear from the piston rings and cylinder walls. However, if you find distinct silver flakes, needles, or larger chunks of steel, this is an early warning sign of lifter, camshaft, or bearing failure. Catching these particles on the Mag-Plate prevents them from being sucked into the oil pump, which could otherwise score the pump gears and drop your oil pressure. It is much cheaper to replace a camshaft than it is to replace a destroyed engine case.

Tip 3: Proper Torque and Hardware Maintenance

When installing your new Mag-Plate, remember that you are tightening steel nuts onto relatively soft 6mm studs embedded in an aluminum or magnesium case. It is very easy to over-torque these and pull the studs right out of the case. Always use a criss-cross (star) pattern to tighten the nuts in small increments, ensuring even pressure across the entire plate. We highly recommend using new copper washers and fresh nylock nuts or acorn nuts to prevent them from vibrating loose. If your case studs are stretched or the threads are damaged, replace them before installing this high-end billet piece to ensure the O-ring is compressed evenly.
