Oil Pressure Switch, Fits All Aircooled VW Engines, Each

OVERVIEW

In the world of air-cooled Volkswagens, few components carry as much weight for their size as the oil pressure switch. Often referred to as the sentinel of your engine''s health, this EMPI oil pressure switch is a critical piece of hardware designed to trigger the dashboard warning light the moment oil pressure drops below a safe operating threshold. Unlike modern liquid-cooled vehicles that may have complex sensors and digital readouts, your classic VW relies on this simple yet effective mechanical-to-electrical transducer to prevent catastrophic internal damage. This switch is engineered to meet or exceed original equipment specifications, ensuring that your Beetle, Bus, or Ghia remains protected during long summer cruises or high-rpm highway runs where oil thinning and pressure fluctuations are most common.

Replacing an aging or leaking oil pressure switch is one of the most cost-effective insurance policies you can buy for your flat-four or flat-six air-cooled powerplant. Over decades of heat cycles, the internal diaphragm of an original switch can become brittle, leading to slow response times or the dreaded "seepage" where oil begins to leak through the electrical spade terminal itself. This EMPI replacement features a robust zinc-plated body and a high-temp composite insulator designed to withstand the harsh environment of the engine tin. Whether you are performing a concourse-level restoration or simply keeping your daily driver sand rail on the road, installing a fresh switch ensures that your "idiot light" is actually providing accurate data when it matters most. Don''t risk a multi-thousand-dollar engine rebuild over a component that costs less than a gallon of high-quality zinc-rich oil.

FITMENT

This oil pressure switch is designed for universal application across the air-cooled Volkswagen lineup. It features the standard M10 x 1.0 tapered thread used on virtually all factory VW engine cases. Detailed fitment includes:

• VW Beetle (Standard & Super): All years from 1946 through 1979.
• VW Bus / Transporter / Kombi: 1950 through 1979 (Type 2 Air-cooled models).
• VW Karmann Ghia: All years from 1956 through 1974.
• VW Type 3 (Squareback, Fastback, Notchback): All models from 1961 through 1973.
• VW Thing (Type 181): 1973 and 1974 US models and international variants.
• VW Type 4 (411 & 412): 1968 through 1974.
• Custom Applications: Fits all aftermarket AS41 and AS21 magnesium or aluminum cases, including those used in Dune Buggies, Sand Rails, and Trikes.

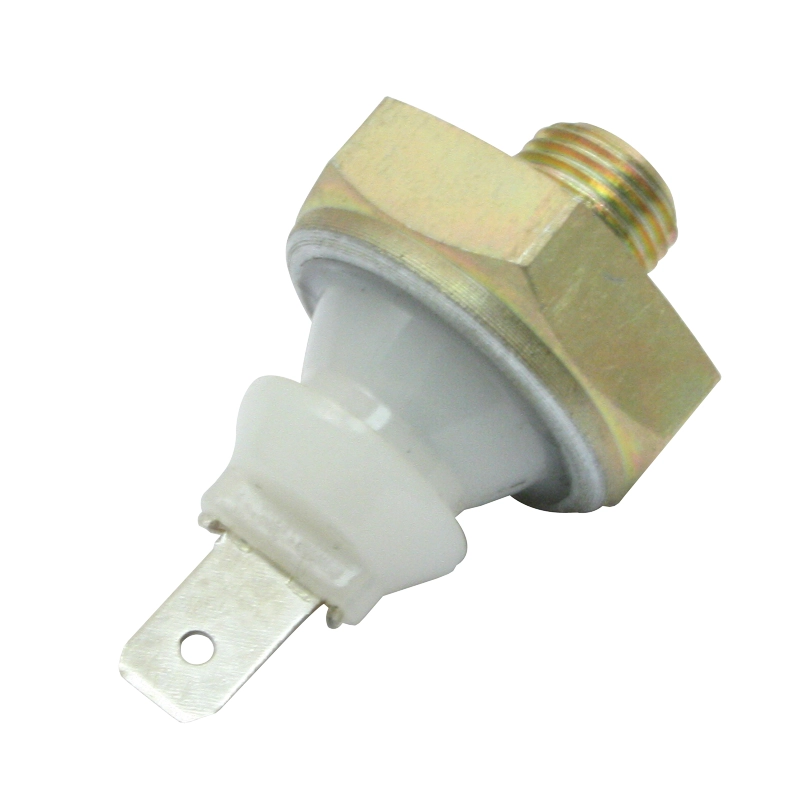

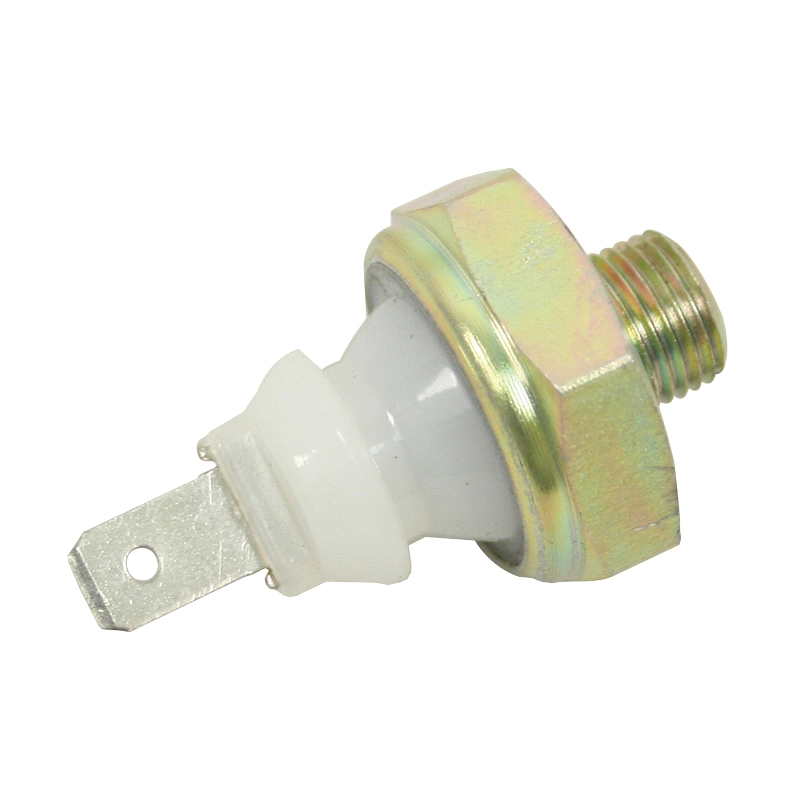

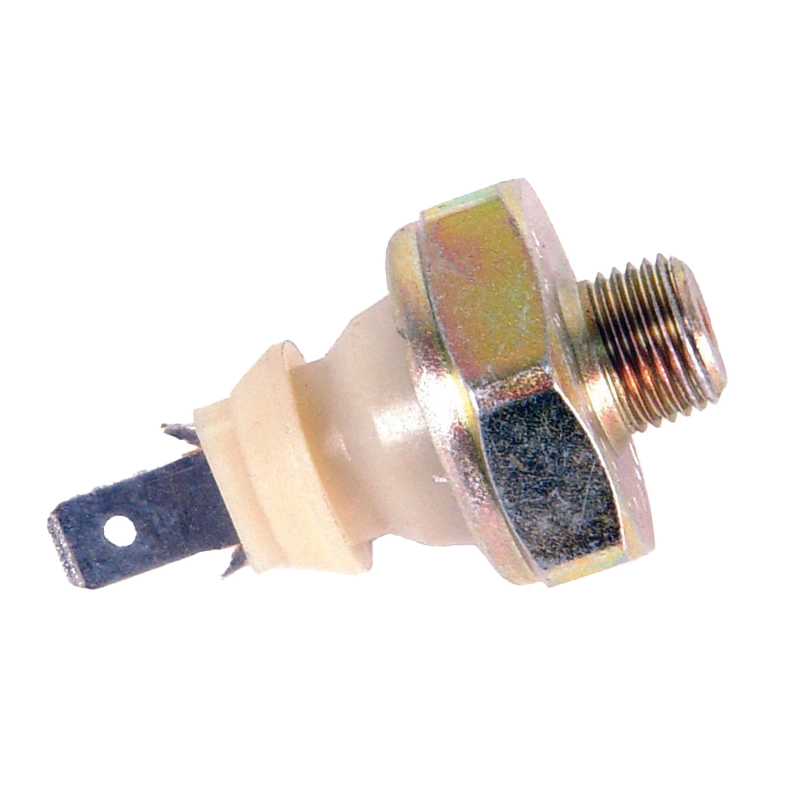

SPECS

• Part Number: 021-919-081B
• Manufacturer: EMPI
• Thread Size: M10 x 1.0 (Tapered)
• Pressure Activation Range: Approximately 0.15 to 0.45 Bar (2.1 to 6.5 PSI)
• Terminal Style: 6.3mm Male Spade / Blade Terminal
• Housing Material: Zinc-Plated Corrosion Resistant Steel
• Internal Mechanism: Spring-loaded pressure diaphragm
• Installation Hex Size: 24mm (Standard socket or wrench)
• Unit Quantity: Sold Individually

PRO TIPS

Tip 1: Troubleshooting the "Flickering Light"

If you notice your oil pressure light flickering at a hot idle, don''t panic immediately, but do not ignore it. First, verify that your idle speed isn''t set too low (factory spec is usually 850-900 RPM). If the idle is correct, the switch might be failing or your oil might be thinning out too much. Always test with a mechanical oil pressure gauge to confirm the actual PSI before assuming the engine is "tired." If the mechanical gauge shows 10+ PSI at idle but the light is still flickering, your switch is likely out of calibration and needs this replacement. Remember, the light should always come on when the key is in the "On" position but the engine is not running; if it doesn''t, check your bulb and the ground at the switch.

Tip 2: Proper Sealing and Grounding

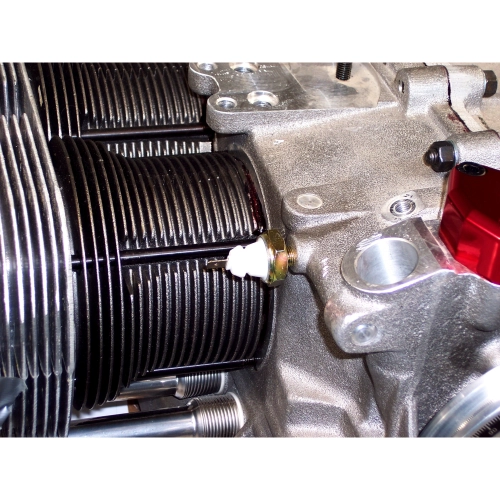

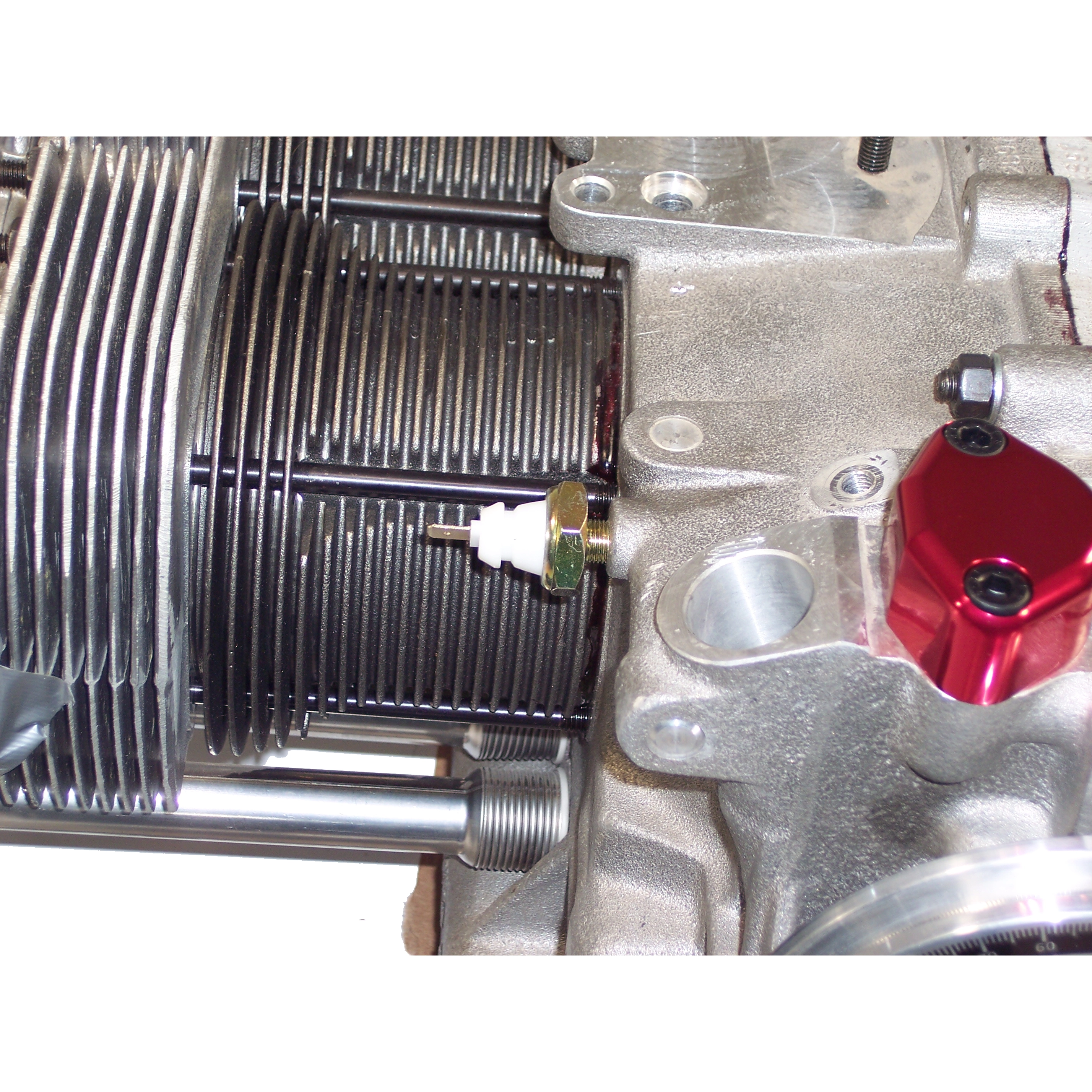

The oil pressure switch uses a tapered thread, which means it seals as it gets tighter. However, many builders make the mistake of over-tightening it, which can crack the engine case near the oil gallerya mistake that is very difficult to repair. Use a small amount of liquid thread sealant or a very thin wrap of Teflon tape on the threads, but leave the first two threads bare. The switch requires a metal-to-metal connection with the engine case to complete the electrical ground circuit. If you use too much tape and insulate the threads entirely, your oil light will never turn on because the circuit cannot find a path to ground through the engine block.

Tip 3: The "Oily Boot" Warning Sign

During your regular oil change or valve adjustment, always pull back the rubber boot (if equipped) covering the spade terminal of your oil pressure switch. If you find wet oil inside that boot or around the electrical connector, the switch has failed internally. Pressure switches typically fail by leaking through the center of the plastic insulator rather than the threads. Even if your light is still functioning, an oily terminal is a "smoking gun" indicating that the internal diaphragm is ruptured. Replacing it immediately prevents a messy engine bay and ensures that a sudden total failure doesn''t leave you stranded with oil spraying onto your pushrod tubes and heater boxes.
