JayCee Oil Control System, Black

OVERVIEW

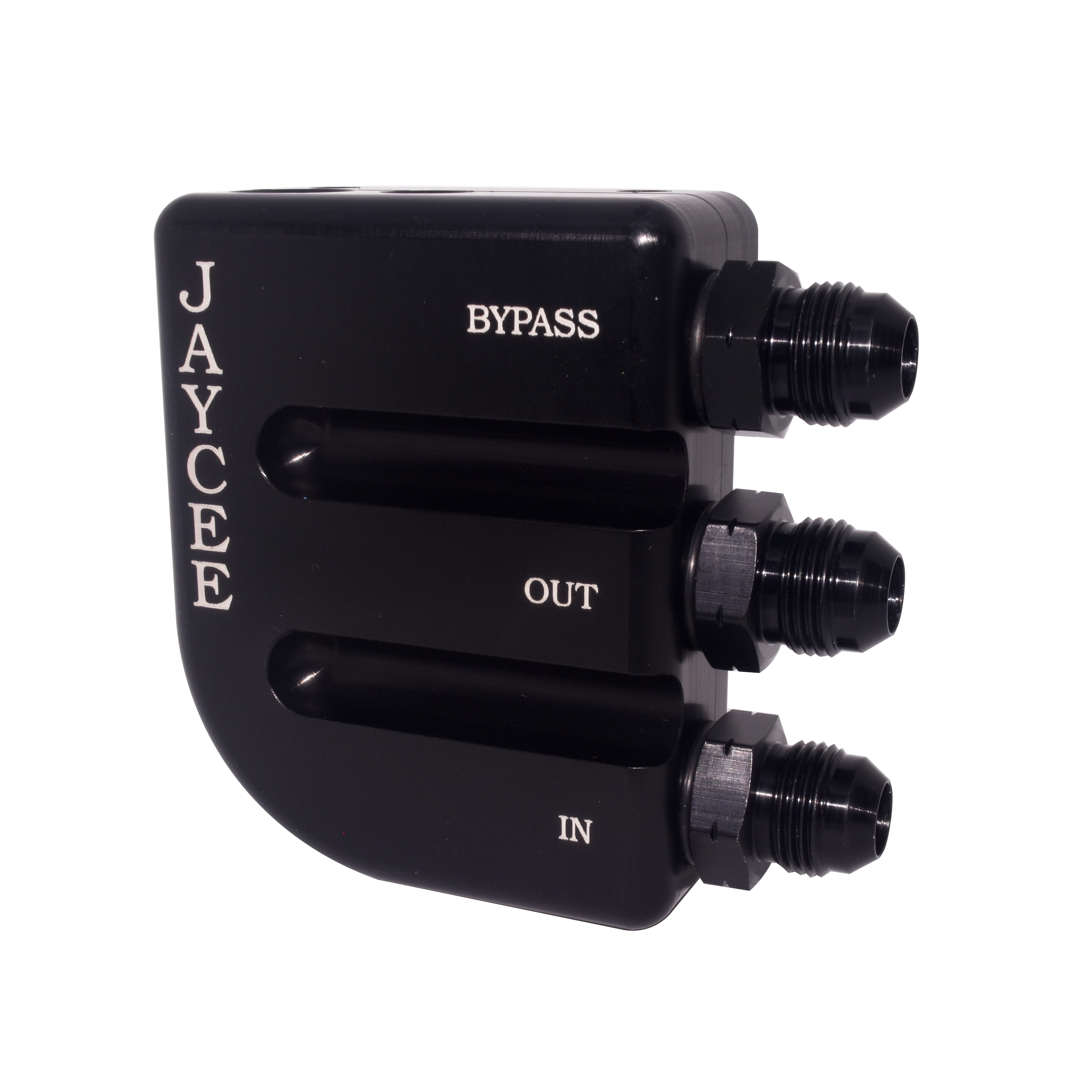

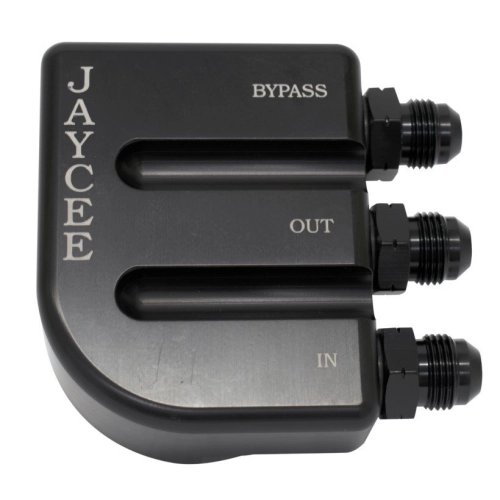

When it comes to high-performance air-cooled engines, oil pressure management is the difference between a long-lasting powerhouse and a catastrophic failure on the track or trail. The JayCee Oil Control System in Black (JC21160) represents the pinnacle of engineering for the serious Volkswagen enthusiast. JayCee has completely revolutionized the traditional external bypass setup by eliminating the cumbersome, heavy brass bypass valve and machining the relief mechanism directly into the 6061 billet aluminum manifold housing. This streamlined approach not only saves weight and space in a cramped engine bay but also provides a much cleaner, professional aesthetic that matches the high-caliber builds seen in the competitive drag racing and off-road scenes. By integrating the bypass internally, you reduce the number of potential leak points and ensure a more direct, reliable path for your lubricant.

Precision is at the heart of the JayCee Oil Control System. Every unit is meticulously calibrated to 80psi, ensuring that your engine maintains optimal pressure even under extreme thermal stress. The system utilizes a high-flow relief piston and a double-ground precision spring to provide lightning-fast response times to pressure spikes, which is critical for protecting your external oil cooler from bursting during cold starts or high-RPM bursts. Complemented by sleek black anodized #8 AN fittings, this system is ready to plumb into your existing high-performance oiling circuit. Whether you are building a weekend warrior Beetle or a dedicated sand rail, this oil control system provides the peace of mind that your oiling system is regulated by the best hardware in the industry, finished in a durable black anodize that resists corrosion and looks incredible for years to come.

FITMENT

The JayCee Oil Control System is designed for universal application on air-cooled Volkswagen engines equipped with external oil cooling systems. It is ideally suited for the following models and applications:

• Volkswagen Type 1: Beetle, Bug, and Super Beetle (All years with performance builds).
• Volkswagen Type 2: Bus, Transporter, Kombi, and Microbus (1950-1979).
• Volkswagen Type 3: Fastback, Squareback, and Notchback.
• Volkswagen Karmann Ghia: All years and models.
• Off-Road Applications: Sand rails, Dune Buggies, Manx-style buggies, and Baja Bugs.
• Engine Configurations: Specifically designed for 1600cc to 2400cc+ performance builds using external oil pumps and remote filters.

SPECS

The technical specifications of the JC21160 showcase JayCee''s commitment to quality and performance-driven design:

• Material: CNC Machined 6061 Billet Aluminum.
• Finish: Hard Anodized Black for superior corrosion resistance and heat dissipation.
• Pressure Calibration: Factory preset to 80 PSI.
• Internal Components: Includes a high-flow relief piston and a double-ground precision-wound spring.
• Fittings: Equipped with two #8 AN (8AN) black anodized male fittings.
• Design Type: Integrated internal bypass manifold (Eliminates external brass bypass valves).
• Mounting: Compact footprint designed for inline plumbing between the pump and the cooler/filter.
• Manufacturer Part Number: JC-2116-0.

PRO TIPS

1. Protect Your Cooler During Cold Starts

One of the most common causes of oil cooler failure in performance VW engines is the massive pressure spike that occurs during a cold start, especially when using high-viscosity racing oils. The JayCee Oil Control System is your primary line of defense. By calibrating the bypass to 80psi, it ensures that excess pressure is bled off before it can reach the thin-walled aluminum fins of your external oil cooler. We always recommend installing this unit as close to the oil pump outlet as possible in your plumbing sequence. This ensures that the pressure is regulated immediately before it travels through the rest of the external lines, providing the maximum level of safety for your entire cooling circuit.

2. Optimize Your Plumbing with Proper AN Hose Selection

While the JayCee system comes with #8 AN fittings, it is vital to ensure your entire oiling system is sized correctly to prevent cavitation or flow restriction. For most high-performance street and strip applications, #8 AN (1/2 inch ID) is the industry standard for a balance of flow and pressure. When installing the JC21160, always use high-quality braided stainless steel or nylon-reinforced rubber hoses with matching AN swivel ends. Avoid using sharp 90-degree elbows directly at the manifold if possible; instead, use 45-degree or sweeping 90-degree fittings to maintain high flow velocity and reduce turbulence within the oiling system.

3. Maintenance and Inspection of the Relief Piston

Even though the JayCee Oil Control System is designed for longevity, a master builder knows that every moving part requires occasional inspection. During your annual engine teardown or a major service interval, it is a smart practice to remove the internal relief piston and spring to check for any debris or scoring. Because the system manages unfiltered oil (if placed before the filter), small metal particles from engine break-in can sometimes find their way into the relief bore. Ensure the piston slides freely within the 6061 housing and that the spring hasn''t lost its tension. A light coat of assembly lube on the piston during reassembly will ensure it continues to react instantly to pressure changes.
