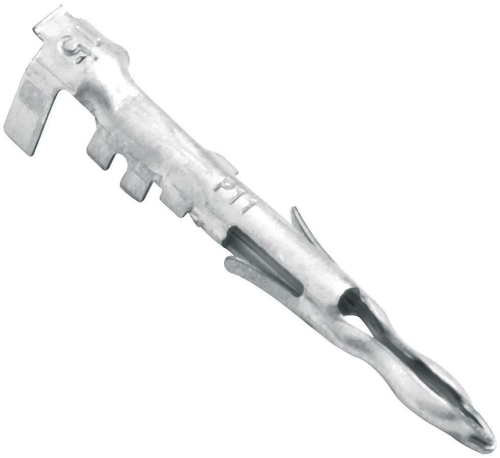

Male Terminals 16-14ga 10pk ALL76276
* Snap lock feature ensures a positive connection.
* Rated up to 20A at 12v DC.
* Fits 16-14 gauge wires.
* Comes in a pack of 10.
OVERVIEW
When it comes to the electrical system of your vintage Volkswagen or custom off-road machine, reliability is the name of the game. These Allstar Performance Male Terminals are the professional choice for builders who refuse to let moisture, dirt, or vibration compromise their wiring. Specifically designed for use with Weather Pack connector housings, these terminals provide an OEM-grade seal that is essential for the harsh environments found in air-cooled engine bays and rugged off-road trails. Whether you are rewiring a classic Beetle or plumbing a high-performance Sand Rail, these 16-14 gauge terminals ensure that your critical circuitsfrom ignition triggers to lighting systemsremain protected against the elements. The snap-lock design ensures a positive mechanical connection that won''t rattle loose, yet allows for clean and easy separation when maintenance is required.
Modernizing a VW''s wiring loom often involves moving away from the brittle, exposed spade connectors of the past and toward a modular, weather-proof solution. These male terminals are crafted from high-quality conductive materials to minimize voltage drop and maximize current flow, supporting up to 20 amps at 12 volts DC. For the dune buggy enthusiast or the Baja Bug racer, using these Allstar Performance terminals means you can pressure wash your rig or blast through a creek bed without worrying about short circuits or corroded pins. By utilizing a 10-pack of these precision-engineered terminals, you gain the consistency needed for a professional-grade harness that looks as good as it performs. Don''t settle for "universal" crimps that fail under pressure; invest in the components that top vehicle manufacturers have trusted for decades to keep their electrical systems running bone-dry and trouble-free.
FITMENT
These male terminals are universal components designed for use with Weather Pack connector systems, making them ideal for a wide range of air-cooled and custom applications including:
- Volkswagen Beetle: All years and models (Standard and Super Beetle).
- Volkswagen Karmann Ghia: 1955-1974.
- Volkswagen Bus/Transporter: Type 2 models (Split Window and Bay Window).
- Volkswagen Type 3: Notchback, Squareback, and Fastback models.
- Volkswagen Thing (Type 181): All production years.
- Custom Off-Road: Dune Buggies, Sand Rails, Manx-style bodies, and Baja Bugs.
- Performance Racing: Any 12V DC system requiring a 16-14 gauge weather-proof connection.
SPECS
- Terminal Type: Male Weather Pack Pin.
- Wire Gauge Range: 16-14 AWG (American Wire Gauge).
- Pack Quantity: 10 Terminals per package.
- Amperage Rating: Rated up to 20 Amps at 12V DC.
- Connection Style: Snap-lock for secure housing retention.
- Material: High-conductivity tin-plated brass for corrosion resistance.
- Compatibility: Designed for use with Allstar and standard Weather Pack connector bodies.
- Part Number: ALL76276.
PRO TIPS
1. Use the Correct Crimping Tool
To achieve a truly weather-proof seal, you must use a dedicated Weather Pack crimping tool. Standard electrical crimpers will crush the terminal and fail to wrap the "wings" around the wire and the silicone seal correctly. A proper ratcheting crimper ensures a "cold-weld" style mechanical bond on the wire while simultaneously securing the terminal to the silicone weather seal. This prevents moisture from wicking up through the wire strands, which is the primary cause of internal wire corrosion in many VW electrical projects.
2. Orient the Silicone Seal Properly
Before you crimp the terminal onto the wire, don''t forget to slide the silicone wire seal onto the insulation first. Ensure the smaller, ribbed end of the seal is facing toward the terminal. When you perform the crimp, the rear set of wings on the male terminal should wrap firmly around the neck of the seal, not the wire itself. This creates the primary barrier against water ingress into the connector housing. If the seal isn''t seated perfectly within the crimp, the connector won''t be truly weather-proof, and you''ll risk an intermittent connection down the road.
3. Use Dielectric Grease for Maximum Longevity
While Weather Pack connectors are designed to be dry, applying a small amount of dielectric grease to the male terminal pins before assembly can provide an extra layer of protection. This grease doesn''t conduct electricity but rather seals out oxygen and moisture, preventing the micro-corrosion that can occur over years of heat cycles in an air-cooled engine compartment. It also acts as a lubricant, making it much easier to snap the male and female connectors together and pull them apart later without damaging the plastic locking tabs on your housings.
