Weather Pack Pin Tool ALL76264

OVERVIEW

When you are deep into a custom wiring project on your air-cooled VW or off-road machine, nothing stalls progress faster than struggling with stubborn electrical connectors. The Allstar Performance Weather Pack Pin Tool (ALL76264) is an essential addition to any specialist''s toolbox, specifically designed to take the headache out of terminal removal. Whether you are rewiring a classic Beetle for modern reliability or building a high-performance sand rail from the ground up, this tool ensures that you can depin both male and female terminals from Weather Pack housings without causing the slightest bit of damage to the delicate plastic internals. At Appletree Automotive, we know that the integrity of your electrical system is paramount, and using the correct extraction tool is the difference between a professional-grade harness and a hack job held together by electrical tape.

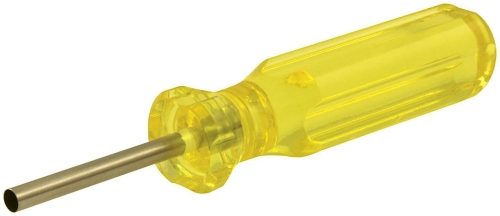

Precision-engineered for durability, this tool features a hollow-tip design that slides perfectly over the terminal to depress the locking barbs simultaneously. Weather Pack connectors are the gold standard for moisture-proof, vibration-resistant connections in the Volkswagen community, especially for those running EFI conversions or complex lighting arrays on Baja Bugs. However, without this specific tool, attempting to remove a wire usually results in a ruined connector housing or a snapped terminal. This Allstar tool is built to withstand the rigors of a professional shop environment while remaining affordable enough for the weekend warrior. Don''t risk your project''s electrical reliability by prying with miniature screwdrivers; use the tool the pros use to maintain a clean, serviceable, and reliable wiring loom.

FITMENT

While Weather Pack connectors are an aftermarket upgrade for classic Volkswagens, this tool is compatible with all Delphi-style Weather Pack systems used across the following applications:

• VW Beetle (All Years): Perfect for custom harnesses, EFI swaps, and electronic ignition upgrades.
• VW Bus / Type 2 (1950-1979): Ideal for cleaning up auxiliary battery circuits and modern lighting.
• VW Karmann Ghia: Ensures clean terminal extraction during full restorations.
• VW Thing (Type 181): A must-have for maintaining moisture-sealed off-road wiring.
• Dune Buggies & Sand Rails: The standard tool for servicing the heavy-duty connectors found on all custom off-road looms.
• Baja Bugs: Designed to handle the grit-filled connectors common in desert racing environments.
• General Automotive: Compatible with any 20-12 AWG Weather Pack terminal system.

SPECS

• Manufacturer: Allstar Performance
• Part Number: ALL76264
• Tool Type: Terminal Release / Depinning Tool
• Application: Male and Female Weather Pack Terminals
• Material: High-Strength Steel Shaft with Comfort Grip
• Finish: Corrosion-resistant coating for long-term shop use
• Compatibility: Works with 1, 2, 3, 4, 6, and 22-pin Weather Pack housings
• Weight: 0.06 lbs (Ultra-lightweight for precision handling)
• GTIN: 848238039603

PRO TIPS

The "Push-Then-Pull" Technique

One of the most common mistakes when using the ALL76264 is trying to pull the wire while inserting the tool. For the smoothest release, you should actually push the wire forward into the connector housing first. This removes the tension from the locking barbs, allowing the tool to slide over them and depress them fully. Once the tool is seated, the terminal will slide out the back of the housing with almost zero resistance. If you feel it snagging, stop immediately, reset the wire, and try again to avoid bending the internal locking tabs.

Combatting Desert Grit and Grime

In the world of air-cooled VW off-roading, your connectors are constantly bombarded with silt, sand, and mud. Before inserting your pin tool into a used connector, we highly recommend blowing out the housing with compressed air and a quick shot of electronic contact cleaner. If sand is trapped behind the locking barbs, the tool won''t be able to seat properly, which can lead to tool breakage or a permanent jam. A clean connector ensures the tool can do its job and preserves the life of the tool''s precision-machined tip.

Terminal Inspection and Re-tensioning

Every time you use this tool to remove a terminal, take a moment to inspect the small metal "wings" or barbs on the pin itself. Occasionally, the extraction process can flatten these barbs more than intended. Before re-inserting the terminal into a new or cleaned housing, use a small pick or your fingernail to slightly flare those barbs back out. This ensures that when the terminal is pushed back into the connector, it "clicks" firmly into place and won''t back out during the high-vibration environments typical of a VW engine bay or a rough trail ride.
