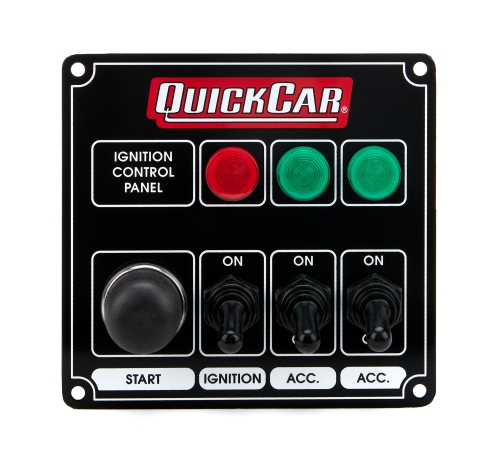

Black Plate, 3 Switches & 1 Button w/ Lights 50-825

OVERVIEW

When you''re tearing through the dunes in a high-performance Baja Bug or launching off the line in a built street Beetle, the last thing you want to worry about is a flimsy, unreliable electrical system. The QuickCar Racing Products Black Plate Switch Panel (Part 50-825) provides the professional-grade control and rugged durability that air-cooled VW enthusiasts demand. This isn''t just a basic panel; it''s a comprehensive cockpit command center featuring a dedicated ignition toggle, a high-torque starter button, and two additional accessory switches for your fuel pump, cooling fans, or auxiliary lighting. The sleek black finish provides a period-correct racing aesthetic that looks right at home in a vintage Volkswagen interior or a custom sand rail dash.

Quality is paramount in the world of air-cooled performance, and QuickCar delivers by ensuring every connection on this panel is professionally crimped, soldered, and protected with heat-shrink tubing. This meticulous attention to detail prevents the vibration-induced failures common in off-road environments and high-revving VW engines. The inclusion of colored indicator lights ensures you know exactly which circuits are hot at a glance, while the heavy-duty rubber boots protect the toggle switches from dust, grit, and moisture. Whether you''re rewiring a vintage Type 1 from scratch or building a dedicated drag car, this pre-wired assembly saves hours of fabrication time and provides a level of reliability that "DIY" wiring simply cannot match.

FITMENT

While this is a universal high-performance racing component, it is a favorite for the following Air-Cooled VW applications:

• VW Beetle (Standard & Super): 1950-1979
• VW Karmann Ghia: 1956-1974
• VW Bus / Transporter (Type 2): 1950-1979
• VW Type 3 (Fastback, Squareback, Notchback): 1961-1973
• VW Thing (Type 181): 1973-1975
• Custom Sand Rails & Dune Buggies: All Years (Meyers Manx, Berrien, etc.)
• Baja Bugs & Off-Road Race Cars: All Years

SPECS

• Plate Material: High-grade aluminum with a durable black finish.
• Width: 4-5/8 Inches.
• Height: 4-3/8 Inches.
• Ignition Switch: 1 heavy-duty double-pole toggle switch.
• Starter Button: 1 high-momentary push-button starter.
• Accessory Switches: 2 heavy-duty double-pole toggle switches.
• Switch Protection: Includes black waterproof/dustproof rubber boots.
• Indicator Lights: Integrated colored lights for visual circuit confirmation.
• Wiring Construction: Professionally crimped, soldered, and heat-shrunk connections.
• Pre-Wired: Ready for installation into your existing or custom loom.
• Compatibility: Direct plug-and-play for QuickCar 50-200 (ignition box) or 50-201 (HEI) wiring harnesses.
• Mounting: Pre-punched mounting holes for easy installation.

PRO TIPS

1. Ensure a Rock-Solid Grounding Path

In many air-cooled VW builds, especially fiberglass dune buggies and sand rails, the chassis isn''t always a reliable ground. When installing this switch panel, don''t rely on the mounting screws for grounding the indicator lights. Run a dedicated 14-gauge ground wire from the panel directly to the negative terminal of the battery or a central grounding block. This prevents flickering lights and ensure that your ignition and accessory circuits operate at full voltage without resistance-induced heat buildup.

2. Use Relays for High-Amperage Accessories

While these switches are incredibly robust, we always recommend using the accessory toggles to trigger a relay rather than powering high-draw items like electric fans or high-output fuel pumps directly through the switch. By using the QuickCar panel to switch the "coil" side of a relay, you preserve the life of the switch contacts and ensure your components receive maximum current directly from the battery source. This is especially critical in 12V converted vintage Volkswagens where wire runs can be long.

3. Protect Your Investment from Vibration

Air-cooled engines are notorious for harmonic vibrations, and off-road racing adds even more stress to your electrical components. When mounting the 50-825 panel to your dashboard, consider using small rubber grommets or "well-nuts" to provide a slight cushion between the plate and the dash. Additionally, ensure the wiring harness behind the panel is properly secured with zip ties to a structural member. This prevents the weight of the harness from pulling on the soldered connections during hard landings or high-RPM runs, ensuring your VW stays running when it matters most.
