4-Wire Weather Pack Connector Kit Flat ALL76268

OVERVIEW

When you are pushing your air-cooled Volkswagen through the dusty trails of the Mojave or cruising down a humid coastal highway, the last thing you want to worry about is an electrical failure. The Allstar Performance 4-Wire Weather Pack Connector Kit (Flat Style) is the definitive solution for enthusiasts who demand professional-grade reliability and a moisture-proof seal. Originally developed by major automotive manufacturers for heavy-duty industrial and marine environments, these connectors have become the gold standard for custom VW wiring, Baja bugs, and sand rails. The flat 4-wire configuration is particularly useful for streamlining your harness, allowing you to run multiple circuits through a single, secure junction that resists vibration, dirt, and the corrosive effects of the elements. Whether you are rewiring a classic Beetle or plumbing the electronics on a custom tube-chassis buggy, this kit ensures your connections remain bone-dry and conductive.

What sets the ALL76268 kit apart is its rugged nylon construction and integrated silicone seals. Unlike standard spade or butt connectors that leave copper exposed to the air, these Weather Pack connectors fully encapsulate the terminal pins. The snap-lock design provides a tactile click, giving you the confidence that the connection is seated and won''t vibrate loose during high-RPM runs or off-road excursions. Rated for up to 20 amps at 12 volts DC, this flat 4-wire kit is versatile enough to handle everything from taillight assemblies and turn signals to auxiliary cooling fans and ignition triggers. At Appletree Auto, we know that a clean wiring job is the hallmark of a master builder, and using these connectors gives your project that factory-finished look while providing a level of protection that standard hardware simply cannot match.

FITMENT

This universal 4-wire flat connector kit is ideal for a wide range of air-cooled and custom applications, including but not limited to:

• Volkswagen Beetle: All years and models (Standard and Super Beetle).
• Volkswagen Bus / Type 2: Split-window, Bay-window, and Vanagon conversions.
• Volkswagen Karmann Ghia: All years for custom lighting or engine harnesses.
• Volkswagen Type 3: Notchback, Squareback, and Fastback models.
• Volkswagen Thing (Type 181): Perfect for exposed military-style wiring.
• Dune Buggies & Sand Rails: Essential for off-road environments where mud and water are constant factors.
• Baja Bugs: Ideal for roof-mounted light bars and auxiliary engine sensors.
• Custom Trailers: Excellent for 4-flat trailer wiring hookups on VW-powered tow rigs.

SPECS

This comprehensive kit includes everything needed to create a high-performance, weather-tight 4-wire junction:

• Part Number: ALL76268
• Connector Style: Flat 4-Wire Configuration
• Current Rating: Rated up to 20 Amps at 12V DC
• Housing Material: High-impact, heat-stabilized Nylon
• Seal Material: Chemical-resistant Silicone (Green/Gray)
• Terminal Type: Pin and Socket (Tinned Brass/Copper)
• Locking Mechanism: Dual-locking snap-secure tabs
• Compatibility: Suitable for 14-18 AWG wire sizes

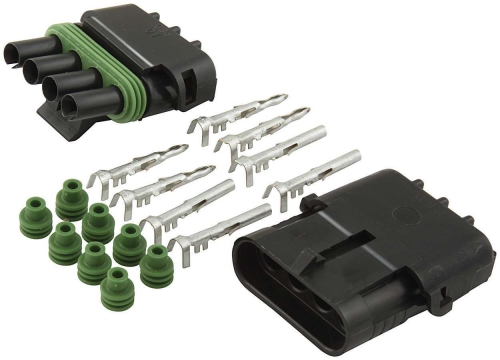

• Kit Contents: (1) Male housing, (1) Female housing, (4) Male terminals, (4) Female terminals, and (8) Silicone wire seals

PRO TIPS

1. Use the Correct Crimping Tool

To ensure a professional-grade connection that won''t pull apart, avoid using standard hardware store crimpers. Weather Pack terminals require an "open-barrel" or "double-crimp" tool. One crimp secures the bare wire to the terminal for electrical conductivity, while the second, larger crimp secures the terminal to the silicone seal and the wire insulation for mechanical strength and moisture resistance. Taking the time to use the right tool prevents the wire from pulling out under the heavy vibration typical of a VW flat-four engine.

2. Lubricate Your Seals

While these connectors are designed to be weather-tight, a tiny dab of dielectric grease on the silicone seals and the terminal faces can go a long way. This not only makes the connectors easier to snap together and pull apart later for maintenance, but it also provides an extra layer of protection against "wicking," where moisture can travel up the inside of a wire. This is especially critical for dune buggies or Baja bugs that are frequently power-washed or driven through water crossings.

3. Plan for Serviceability

When installing the 4-wire flat kit, always leave a small "drip loop" in the wire leading into the connector. This prevents gravity from pulling moisture directly into the back of the plug. Additionally, always mount the female (socket) side of the connector on the "hot" or power-supply side of the circuit. This ensures that if the connector is unplugged, the energized pins are recessed within the housing, preventing them from accidentally grounding out against your VW''s metal chassis or engine tin.
