Oil Temp Mech 2 5/8 100-340D

OVERVIEW

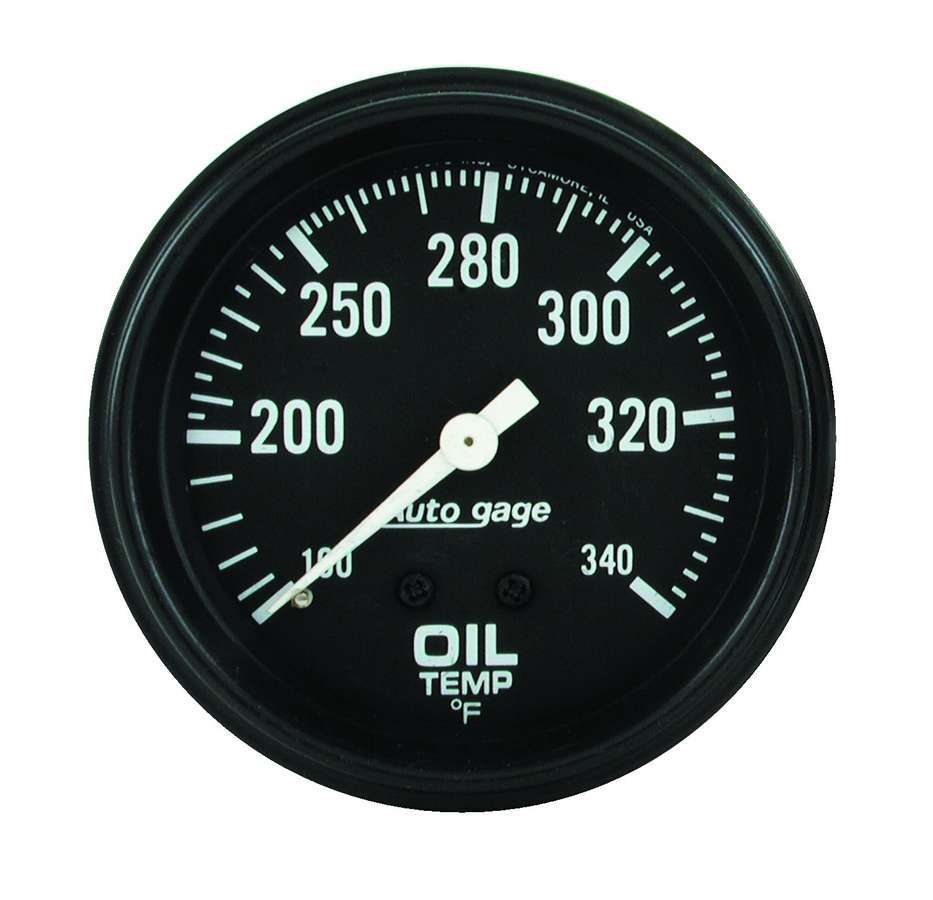

Monitoring your engine''s oil temperature is not just a luxury; it is an absolute necessity for anyone serious about the longevity of an air-cooled Volkswagen. Unlike water-cooled modern vehicles, your VW relies heavily on its oil to dissipate heat from the internal components that the air shroud cannot reach. This AutoMeter Mechanical Oil Temperature Gauge (Part #2314) provides the professional-grade accuracy required to keep tabs on your engine''s health, whether you are traversing hot desert dunes in a sand rail or cruising the highway in a vintage Beetle. The large 2 5/8-inch face offers superior visibility compared to standard 2 1/16-inch gauges, making it the preferred choice for racers and off-road enthusiasts who need to glance at their vitals without distraction. Built with AutoMeter''s legendary Bourdon tube movement, this mechanical gauge offers unmatched response and durability, ensuring you know exactly when to back off the throttle before a heat-related catastrophe occurs.

This mechanical gauge operates using a liquid-filled capillary tube, meaning it functions independently of your vehicle''s electrical system for temperature sensing. This is a massive advantage in the world of air-cooled VWs, where electrical interference or aging wiring harnesses can often lead to "bouncing" needles or inaccurate readings on electronic gauges. The 100 to 340-degree Fahrenheit range is perfectly calibrated for performance VW engines, where oil temperatures often climb higher than standard passenger cars during spirited driving. At Appletree Automotive, we understand that "oil is the lifeblood of the engine," and this AutoMeter unit is the gold standard for protecting that investment. The kit comes complete with a 6-foot lead and the necessary NPT adapters to get you up and running quickly, providing a rugged, reliable, and aesthetically classic look to any dashboard or gauge pod setup.

FITMENT

This is a universal high-performance gauge commonly utilized in the following air-cooled Volkswagen applications:

• VW Beetle / Bug: 1946 through 1979 (Standard and Super Beetle)
• VW Karmann Ghia: 1955 through 1974
• VW Bus / Type 2: 1950 through 1979 (Split Window and Bay Window)
• VW Type 3: 1961 through 1973 (Squareback, Fastback, Notchback)
• VW Thing / Type 181: 1973 through 1975
• Custom Applications: Ideal for Sand Rails, Dune Buggies, Meyers Manx, and Baja Bugs using Type 1, Type 4, or upright conversion engines.

SPECS

• Brand: AutoMeter
• Product Number: 2314
• Gauge Diameter: 2 5/8 Inches (66.7mm)
• Gauge Type: Mechanical (Liquid-filled capillary)
• Temperature Range: 100 Degrees to 340 Degrees Fahrenheit
• Display Sweep: Full 270-Degree Sweep for maximum resolution
• Tubing Length: 6 Foot heavy-duty capillary tubing included
• Adapters Included: 3/8 Inch NPT and 1/2 Inch NPT fittings
• Lighting: Perimeter incandescent lighting (Bulb and socket assembly included)
• Face Color: Classic Black with High-Contrast White increments
• Bezel: Chrome finish for a timeless performance look

PRO TIPS

1. Protect the Capillary Tube at All Costs

The most critical aspect of installing a mechanical oil temperature gauge is the handling of the 6-foot capillary tube. This tube is filled with a specific ether gas/liquid and is permanently sealed to the gauge head. If you kink, pinch, or snap this tube, the gauge is permanently ruined and cannot be repaired. When routing the line from the dashboard to the engine case, use large, sweeping bends and ensure it passes through a rubber grommet at the firewall to prevent vibrations from chafing the metal line. Never attempt to cut or shorten this line, as it will immediately vent the sensing fluid.

2. Choosing the Best Sensing Location

For the most accurate representation of the oil temperature entering your bearings, we recommend mounting the sensing bulb in the oil pressure relief plug area or using a specialized "T" fitting at the oil pressure sender port. However, many air-cooled builders prefer mounting it directly into the oil sump using a custom drain plug adapter. Whichever location you choose, ensure the sensing bulb is fully submerged in the oil flow path rather than tucked away in a "dead" pocket of the engine case, which could result in readings that are significantly lower than the actual internal engine temperature.

3. Avoid Teflon Tape on Sensing Threads

When installing the NPT adapters into your engine case or oil pump cover, be extremely careful with the use of thread sealants. We strongly recommend against using white Teflon tape, as small shreds can break off and migrate into your oil galleries, potentially plugging an oil passage and causing engine failure. Instead, use a high-quality liquid thread sealant or "pipe dope" specifically rated for high-temperature automotive fluids. Ensure the sensing bulb itself has a metal-to-metal seat within the adapter to prevent leaks under the high-pressure conditions found in performance VW engines.
