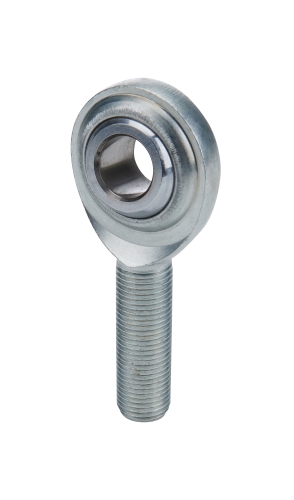

Rod End RH 1/2 Male Steel ALL58008

OVERVIEW

When it comes to building a reliable off-road machine or a precision-tuned street VW, the hardware you choose defines the longevity and safety of your build. The Allstar Performance RH 1/2-inch Male Steel Rod End (ALL58008) is a foundational component for any enthusiast diving into custom suspension geometry, steering linkages, or specialized throttle assemblies. Whether you are bracing a sand rail for the dunes or dialing in the shift linkage on a performance Baja Bug, this steel heim joint provides the necessary pivot point to handle articulation without the binding often found in traditional rubber or polyurethane bushings. As a master air-cooled specialist, I have seen countless builds fail due to subpar hardware, which is why we stock these Allstar unitsthey offer a perfect balance of high-strength steel construction and economical pricing for projects requiring multiple pivot points across the chassis.

This specific fabrication heim joint features a right-hand male thread, making it an essential part of adjustable linkage systems when paired with a left-hand counterpart to create a turnbuckle effect. The 1/2-inch sizing is a standard in the industry, allowing for easy integration with common chrome-moly tubing and threaded bungs used in the VW community. For off-road heim joint applications, durability is paramount; the steel-on-steel design ensures that even under the vibration-heavy environment of a high-revving flat-four engine and rugged desert terrain, your alignment settings remain consistent. This rod end is designed for those who demand a robust solution for their mid-travel suspension setups or custom steering racks, providing a smooth range of motion that keeps your tires planted and your steering responsive during high-speed maneuvers.

FITMENT

This is a universal fabrication component commonly used in the following Volkswagen and off-road applications:

• VW Baja Bug: Ideal for custom steering tie rods and rear suspension limit straps.
• Sand Rails & Dune Buggies: Perfect for shift linkages, throttle cables, and light-duty A-arm pivots.
• VW Type 1 Beetle: Used in custom steering conversions and adjustable front beam supports.
• VW Type 2 Bus: Excellent for custom gear selector rods and heavy-duty throttle conversions.
• VW Type 3 (Squareback/Fastback): Applicable for custom rear suspension leveling links.
• Karmann Ghia: Often utilized in precision steering rack-and-pinion conversions.
• Meyer''s Manx & Clones: A staple for chassis bracing and custom pedal assembly links.

SPECS

Detailed technical specifications for the ALL58008 rod end include:

• Thread Diameter: 1/2 inch.
• Thread Pitch: 1/2-20 (Fine Thread).
• Thread Direction: Right Hand (RH).
• Bore Diameter: 1/2 inch (Inner ball diameter).
• Housing Material: High-grade carbon steel for maximum tensile strength.
• Ball Material: Hardened steel for wear resistance and reduced friction.
• Thread Type: Male.
• Series: Standard Series (Non-PTFE lined, steel-on-steel).
• Finish: Natural steel (Recommended to paint or coat after installation to prevent surface oxidation).

PRO TIPS

1. Ensure Proper Thread Engagement for Maximum Safety

When installing a 1/2-inch male steel rod end into your linkage, you must ensure that the thread engagement is at least 1.5 times the diameter of the shank. For a 1/2-inch rod end, this means you should have at least 3/4 of an inch of the thread buried inside your bung or coupler. Using less than this significantly increases the risk of thread stripping or "pull-out" under heavy suspension loads. Always use a high-quality jam nut to lock the rod end in place; without a jam nut, the constant vibration of an air-cooled engine will cause the rod end to back out, leading to catastrophic steering or suspension failure. Don''t cut corners on thread depthit is the only thing holding your suspension geometry together.

2. Maintenance and Lubrication for Steel-on-Steel Joints

Since the ALL58008 is a steel-on-steel rod end without a PTFE (Teflon) liner, it requires regular maintenance to prevent premature wear and annoying "squeaking." In the dusty environment of a sand rail or Baja Bug, dirt can act as an abrasive inside the ball race. I recommend using a dry-film lubricant rather than a heavy grease, as grease tends to attract and hold onto grit which will grind away the metal. Periodically clean the joint with a quick-evaporating solvent and re-apply a dry lubricant. If you notice any "slop" or vertical movement in the ball, it is time to replace the joint immediately. A worn heim joint can lead to "death wobble" in steering systems, which is particularly dangerous in short-wheelbase VWs.

3. Using the Turnbuckle Method for Easy Adjustments

To make your life easier when building steering or shift linkages, always use a Right-Hand (RH) thread rod end like this one on one side of the tube and a Left-Hand (LH) thread rod end on the opposite side. This creates a turnbuckle system that allows you to adjust the length of the link simply by rotating the center tube without having to disconnect either end from the vehicle. This is critical for dialing in your toe-in on a front beam or finding the perfect "neutral" on a custom mid-engine shifter setup. Make sure to mark your LH and RH ends clearly during fabrication so you don''t accidentally try to force the wrong thread into your bungs, which will ruin the threads instantly.
