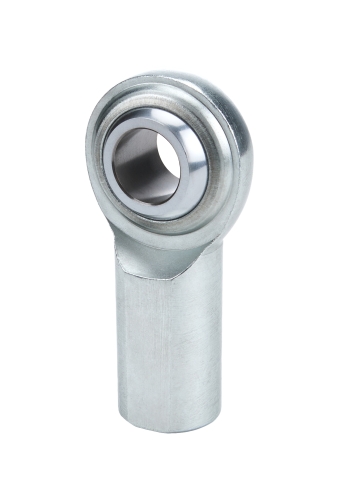

Rod End RH 3/4 Female Steel AL

OVERVIEW

When you are pushing your air-cooled VW or custom off-road rig to the limit, the factory rubber bushings and ball joints simply cannot provide the precision or durability required for high-performance maneuvers. The ALLSTAR PERFORMANCE Standard Series 3/4-inch Female Right-Hand Thread Steel Rod End is a critical component for builders who demand a rigid, reliable connection in their steering and suspension geometry. Whether you are fabricating a custom tie rod for a long-travel Baja Bug or setting up the radius arms on a dedicated sand rail, this rod end (often referred to as a Heim joint) eliminates the "slop" found in traditional street components. By replacing soft pivot points with this high-strength steel-on-steel interface, you gain immediate feedback through the steering wheel and ensure that your suspension maintains its alignment settings even under the heavy lateral loads of aggressive off-roading or drag racing.

Engineering excellence is at the heart of Allstar Performance parts, and the ALL58042 is no exception. Constructed from high-quality steel with a 3/4-16 right-hand female thread, this rod end is designed to thread directly onto your custom-fabricated linkage rods. The standard series offers a perfect balance between cost-effectiveness and rugged durability for the weekend warrior or the dedicated garage builder. This specific 3/4-inch bore size is a staple in the air-cooled community for heavy-duty applications where smaller 1/2-inch or 5/8-inch joints might fail under the stress of oversized tires and increased wheel travel. The zinc-plated finish provides a layer of corrosion resistance, ensuring that your pivot points don''t seize up after a weekend in the dunes or a muddy trail run. When you choose Allstar, you are investing in a component that has been proven on tracks and trails across the country, giving you the peace of mind that your front end won''t let you down when the terrain gets technical.

FITMENT

This is a universal fabrication component commonly used on the following air-cooled VW and off-road applications:

• Volkswagen Beetle: Custom steering linkages and heavy-duty tie rod conversions for Baja Bugs (1950-1979).
• Volkswagen Karmann Ghia: Custom suspension modifications and performance steering upgrades.
• Volkswagen Type 2 Bus: Custom drag race steering setups or heavy-duty suspension pivots.
• Volkswagen Type 3 (Squareback, Fastback, Notchback): Custom fabrication projects.
• Sand Rails & Dune Buggies: Ideal for radius rods, trailing arm supports, and steering tie rods on tube-chassis vehicles.
• Meyers Manx & Kit Cars: Perfect for builders creating one-off suspension geometries.
• Custom Drag Cars: Used in ladder bars, wheelie bars, and shift linkages where high-strength steel is required.

SPECS

Detailed technical specifications for the ALL58042 Rod End:

• Brand: Allstar Performance
• Part Number: ALL58042
• Thread Size: 3/4-16
• Thread Direction: Right-Hand (RH)
• Gender: Female
• Bore Diameter: 3/4 Inch (0.750")
• Material: High-Strength Steel Body
• Finish: Zinc Plated for corrosion resistance
• Series: Standard Series
• Ball Material: Hardened Steel
• Weight: 0.67 lbs
• Application: Steering, Suspension, and Linkage Fabrication

PRO TIPS

1. Ensure Proper Thread Engagement for Maximum Safety

When installing female rod ends like this 3/4-inch Allstar unit, it is vital to follow the "one-and-a-half times diameter" rule for thread engagement. For a 3/4-inch thread, you should have at least 1.125 inches of the male rod threaded into the Heim joint. This ensures that the threads can handle the tension and compression loads without stripping. Don''t forget to use a high-quality jam nut to lock the rod end in place; without a jam nut, the constant vibration of an air-cooled engine and rough terrain can cause the linkage to rotate, leading to alignment changes or total mechanical failure.

2. Use High-Misalignment Washers for Increased Travel

Standard rod ends have a limited range of motion before the housing hits the mounting bracket. If your VW suspension is designed for high travel, such as a 10-inch or 12-inch front end on a Baja Bug, you should utilize high-misalignment spacers or safety washers. These spacers neck down the bolt size slightly but allow the ball to rotate much further within the housing without binding. Binding is the leading cause of snapped rod end shanks, so always cycle your suspension through its full range of motion (bump to droop) during the fabrication phase to ensure the joint never "bottoms out" against its own housing.

3. Maintenance in Harsh Environments

Unlike sealed OEM ball joints, steel-on-steel rod ends are exposed to the elements. If you are running your vehicle in the sand, mud, or salt, these joints require regular maintenance. We recommend cleaning the ball and race with a dry lubricant or a specialized rod end cleaner that doesn''t attract grit. Avoid using heavy greases that "trap" sand inside the joint, as this creates a grinding paste that will quickly wear out the tolerances. If you hear a "clunking" sound from your front end, check the rod ends for play immediately; a worn Heim joint can lead to "death wobble" in your steering, which is particularly dangerous in short-wheelbase vehicles like a Manx or a Beetle.
