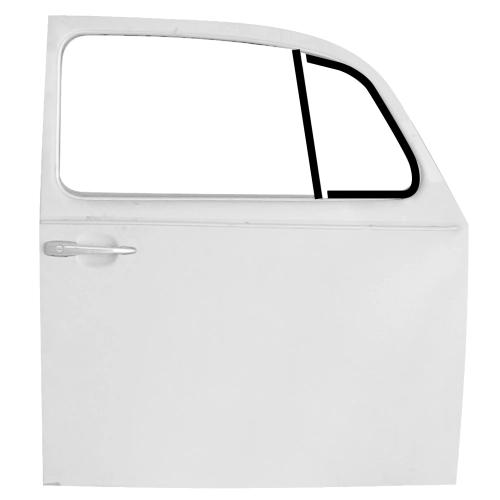

Vent Wing Seal, for Beetle 65-77, Right Side

OVERVIEW

When it comes to restoring the cabin comfort of your classic air-cooled Volkswagen, few components are as critical yet overlooked as the vent wing seals. This EMPI Right Side Vent Wing Seal is engineered specifically for the 1965 through 1977 Beetle, providing an airtight and watertight barrier that eliminates that annoying high-pitched wind whistle common in aging Vee-Dubs. Over decades of exposure to UV rays and temperature fluctuations, original rubber becomes brittle, cracks, and eventually fails, allowing rainwater to seep into your door internals and rot out your door bottoms. By replacing your weathered seals with this high-quality reproduction, you are not just stopping a leak; you are preserving the structural integrity of your doors and significantly reducing road noise for a much more pleasant driving experience.

At Appletree Auto, we know that fitment is everything when you are deep into a restoration project. This vent wing seal, manufactured under the strict quality standards of EMPI, is designed to mirror the original OEM 111-837-626B specifications for a seamless installation. It features the correct molded contours and thickness to ensure that the triangular vent glass seats firmly against the rubber without requiring excessive force to latch. Whether you are finishing a ground-up restoration or simply trying to keep the rain out of your daily driver, this right-side (passenger) seal is the professional''s choice for a factory-fresh look and performance. Don''t settle for universal trim or inferior rubber that loses its elasticity after one season; invest in a seal designed specifically for the unique geometry of the Type 1 door frame.

FITMENT

This vent wing seal is designed for the passenger side (Right Side) of the following Volkswagen models:

• Volkswagen Beetle (Standard): 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977
• Volkswagen Super Beetle: 1971, 1972, 1973, 1974, 1975, 1976, 1977
• Note: Specifically fits Sedan and Convertible models within these year ranges for the right-hand door assembly.

SPECS

• OEM Reference Number: 111-837-626B
• Manufacturer: EMPI
• Part Number: 98-2008-0
• Material: High-density EPDM weather-resistant rubber
• Placement: Right Side (Passenger Side)
• Color: Matte Black
• Construction: Precision molded for Type 1 vent wing frames
• Weight: 0.31 lbs
• Compatibility: Designed for use with original factory vent wing frames and glass

PRO TIPS

1. Use Lubrication for a Stress-Free Install

Installing new, thick rubber into a vintage metal channel can be a tight squeeze. To prevent tearing the rubber or bending your vent wing frame, apply a generous amount of soapy water or a dedicated rubber lubricant to the "T" section of the seal before sliding it into the channel. Avoid using petroleum-based products like WD-40 or grease, as these can break down the rubber compound over time and cause it to swell or degrade prematurely. A little bit of dish soap goes a long way in helping the seal "seat" into the corners perfectly.

2. Inspect the Vent Wing Frame and Rivets

Before you install the new seal, take a moment to inspect the metal vent wing frame and the lower pivot pin. Often, the small rivet at the top or the spring-loaded tensioner at the bottom can become rusted or loose. Since you already have the assembly apart, it is the perfect time to clean the metal channels with a wire brush and apply a fresh coat of paint or rust inhibitor. Ensuring the frame is smooth and free of debris will allow the new seal to sit flush, which is vital for achieving a 100% waterproof seal when the window is latched shut.

3. Allow the Rubber to "Take a Set"

Once the new seal is installed and the vent wing assembly is back in the door, you might find that the latch is slightly harder to turn than it was with the old, flattened seal. This is normal. Close the vent wing tightly and leave it latched for at least 48 to 72 hours, preferably while the car is sitting in the sun. The heat will help the EPDM rubber conform to the shape of your specific glass and frame. After this "break-in" period, the seal will "take a set," and the window will operate much more smoothly while maintaining a superior airtight grip.
