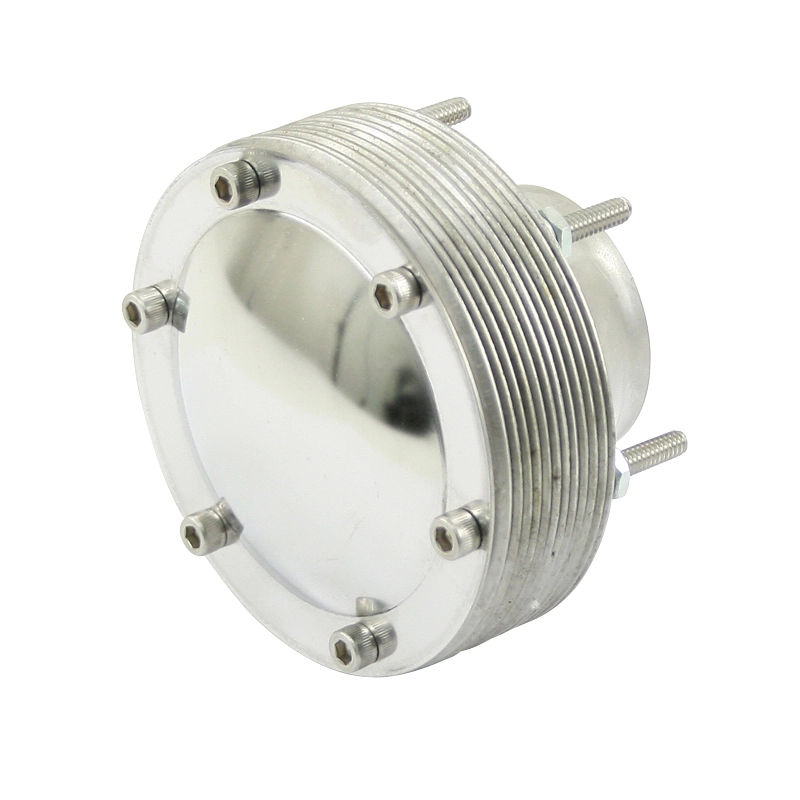

Spark Arrestor, 2 Inch Weld On with 4 Inch Discs

OVERVIEW

When you''re tearing through the dunes or navigating technical forest trails, safety and legal compliance are just as important as raw horsepower. The EMPI 2-Inch Weld-On Spark Arrestor is designed specifically for the serious off-roader who needs to meet United States Forest Service (USFS) requirements without sacrificing the aggressive performance of their air-cooled engine. This isn''t just a safety device; it''s a critical component for anyone running a custom exhaust on a Baja Bug, Sand Rail, or Manx-style buggy. By trapping incandescent carbon particles before they can escape the tailpipe, you prevent trail fires and help keep our public riding areas open for the next generation. The weld-on design ensures a permanent, vibration-resistant connection that won''t rattle loose or fall off during high-intensity desert thrashing, providing a much more secure fit than traditional clamp-on alternatives.

Beyond its essential safety credentials, this spark arrestor serves as a sophisticated exhaust tuning tool for the discerning VW enthusiast. Featuring a 4-inch disc system, it allows you to fine-tune your engine''s backpressure and sound profile with mechanical precision. By adding or removing the included stainless steel discs, you can effectively adjust the flow characteristics of your exhaust system to perfectly match your engine''s displacement, compression ratio, and cam profile. A higher number of discs increases the total flow area and reduces backpressure for high-RPM power, while utilizing fewer discs can help build essential bottom-end torque and quiet the exhaust note for sound-sensitive environments. Constructed with EMPI''s legendary commitment to air-cooled performance, this unit provides the perfect balance of form and function for any custom 2-inch exhaust fabrication project.

FITMENT

This is a universal weld-on component designed for 2-inch O.D. exhaust tubing. It is commonly used on the following air-cooled Volkswagen applications and off-road vehicles:

• Volkswagen Baja Bug: Custom exhaust headers with 2-inch collectors.
• Sand Rails & Dune Buggies: All frames utilizing custom 2-inch exhaust systems.
• Meyers Manx & Fiberglass Buggies: Ideal for high-mount "stinger" style or custom side-exit exhausts.
• VW Bus (Type 2): Custom off-road builds and engine conversions requiring spark suppression.
• Volkswagen Beetle (Type 1): Competition and rally builds with modified exhaust systems.
• General Off-Road: Any vehicle utilizing a 2-inch O.D. (Outer Diameter) exhaust pipe.

SPECS

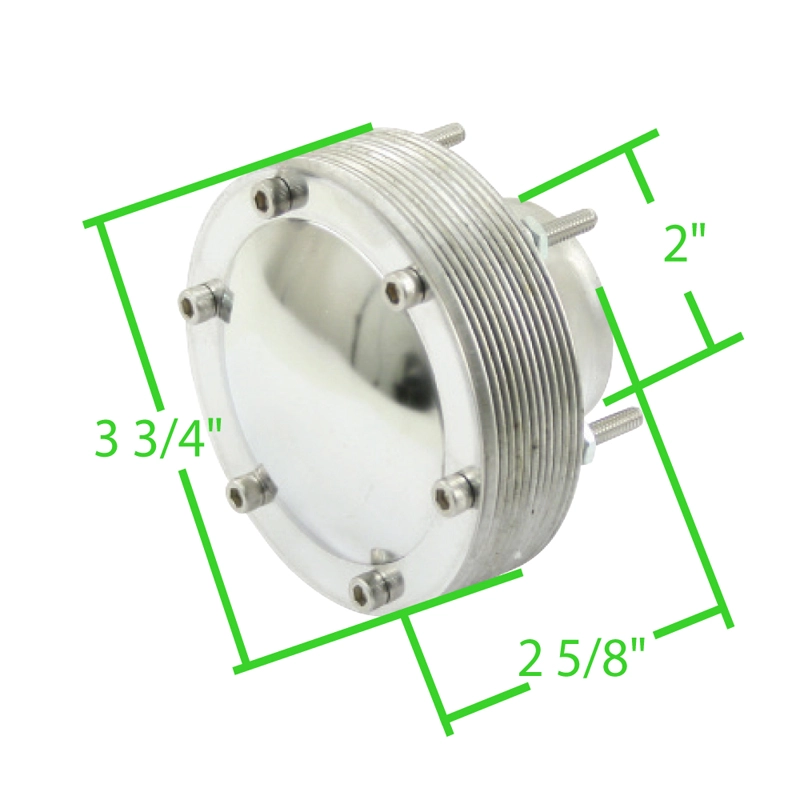

• Inlet Diameter: 2-Inch (Designed to weld directly to 2-inch O.D. tubing).
• Disc Diameter: 4-Inch High-Flow Discs.
• Attachment Style: Weld-On (Permanent installation for maximum durability).
• Material: Heavy-duty steel construction with high-temp resistance.
• Adjustability: Fully tuneable by adding or removing internal discs.
• Disc Count: Includes a standard set of 4 discs (additional discs can be added).
• Approval: Designed to meet USFS (United States Forest Service) spark arrestor standards.
• Finish: Raw steel finish, ready for welding and high-heat paint or ceramic coating.

PRO TIPS

1. Fine-Tune for Performance and Sound

Don''t just weld it on and forget it; the real magic of a disc-based spark arrestor is the ability to tune the backpressure. If you notice your engine is "choking" at high RPMs, try adding one or two additional discs to increase the exhaust exit area. Conversely, if you''re looking for a quieter idle or need a bit more low-end "grunt" for technical rock crawling, removing a disc can help. Always re-check your spark plug color after making significant changes to the disc count, as changing exhaust backpressure can slightly affect your air-fuel mixture on carbureted VW engines.

2. Prep Your Surfaces for a Professional Weld

Since this is a weld-on unit, the quality of your installation depends entirely on your prep work. Before you strike an arc, ensure that the 2-inch exhaust pipe you are welding to is cut perfectly square and is free of any rust, carbon buildup, or old paint. Use a flap disc or wire wheel to take the metal down to a bright, shiny finish on both the exhaust pipe and the arrestor base. Because exhaust systems are subject to extreme heat cycles and heavy vibration, we highly recommend using a MIG or TIG welder for a deep-penetration weld that won''t crack over time.

3. Regular Maintenance for Maximum Flow

Carbon buildup is the enemy of performance. Over time, soot and unburnt oil (especially in older air-cooled engines) can clog the fine gaps between the 4-inch discs. Once or twice a season, or after a particularly dusty trip, you should disassemble the disc stack and clean the components with a stiff wire brush and some carb cleaner. This ensures that your spark arrestor continues to breathe freely and prevents "hot spots" from forming within the disc stack, which could lead to premature metal fatigue or reduced engine efficiency.
