Tail Pipe Clamp for Beetle & Ghia 55-74, Sold Each

OVERVIEW

When it comes to maintaining the iconic sound and performance of your air-cooled Volkswagen, the details make all the difference. This German-made Tail Pipe and Heater Box Installation Kit is the gold standard for enthusiasts who refuse to settle for the thin, poorly stamped hardware often found in budget kits. A leak in your exhaust system does more than just create an annoying ticking sound; it can lead to dangerous exhaust fumes entering the cabin through the heater system and can negatively impact your engine''s backpressure and cooling efficiency. By choosing this premium German-spec hardware, you are ensuring a tight, vibration-resistant seal that mimics the original factory tolerances, keeping your VW running quiet and safe for years to come.

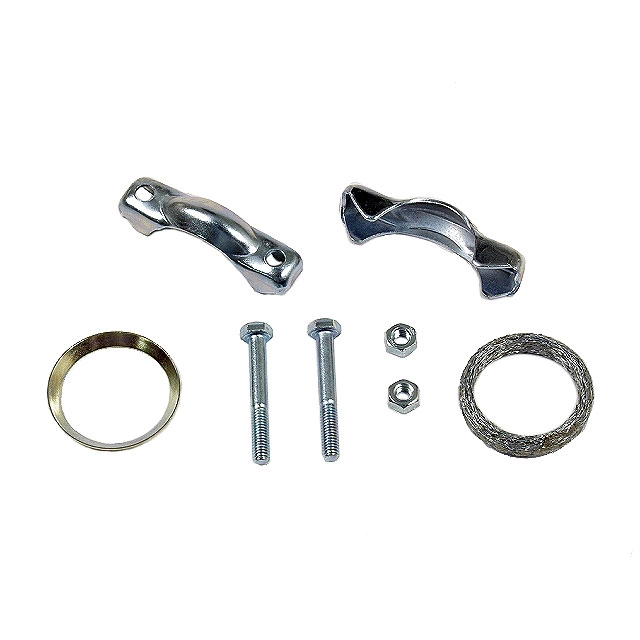

This comprehensive kit is engineered for versatility and durability, serving as the essential connection point for several critical exhaust components. While commonly referred to as a tailpipe kit, this hardware is also the correct solution for securing your heater boxes or J-tubes to the muffler. Each kit includes a heavy-duty two-piece metal clamp, a high-temperature sealing gasket, a compression clamp ring, and the necessary nuts and bolts to complete the job. Whether you are performing a full engine out restoration on a 1950s Beetle or simply replacing a rusted tailpipe on a late-model Super Beetle, these components provide the structural integrity required to withstand the intense heat cycles and road vibrations inherent to the VW flat-four engine design.

FITMENT

• VW Beetle (Standard): 1955 through 1974
• VW Super Beetle: 1971 through 1974
• VW Karmann Ghia: 1956 through 1974
• VW Bus / Type 2: 1955 through 1971
• VW Type 3 (Squareback, Fastback, Notchback): 1962 through 1973
• VW Thing / Type 181: 1974 (US Models)

SPECS

• Manufacturing Origin: German Quality Specification
• Components Included: (1) Two-piece heavy-duty outer clamp, (1) Metal sealing ring, (1) Graphite/Metal composite sealing gasket, (2) Grade 8.8 Steel bolts, (2) Steel nuts
• Part Number: 111-298-051GR
• Application Use: Tailpipe to Muffler, Heater Box to Muffler, or J-Tube to Muffler
• Material: High-temperature resistant steel with corrosion-resistant coating
• Quantity: Sold Individually (Note: Most stock mufflers require four kits for a complete installation: two for the heater boxes and two for the tailpipes)

PRO TIPS

1. Prioritize Flange Preparation

Before installing your new German kit, it is absolutely vital to clean the mating surfaces of your muffler and your tailpipe or heater box. Use a wire brush or a rotary tool with a wire wheel to remove all traces of old gasket material, carbon buildup, and surface rust. If the flange on the muffler is pitted or uneven, the new gasket may struggle to create a perfect seal. A clean, shiny metal surface ensures that the graphite gasket can compress evenly, preventing the "exhaust leak tick" that plagues so many DIY installations. Taking five minutes to prep the surface will save you from having to pull the exhaust apart again in six months.

2. Achieve Even Tension for a Perfect Seal

When tightening the two bolts on the outer clamp, do not fully tighten one side and then the other. This "lopsided" approach can cause the clamp to sit crooked, which prevents the internal sealing ring from seating correctly against the gasket. Instead, thread both nuts on by hand until they are snug, then alternate between the two bolts with your wrench, turning each one a few times until the clamp halves are pulled together evenly. This ensures that the pressure is distributed 360 degrees around the exhaust pipe, creating a airtight seal that resists backing off due to engine vibration.

3. The Heat Cycle Re-Torque

Exhaust components undergo extreme thermal expansion and contraction every time you drive your Volkswagen. After you install the kit and take your car for its first significant drive (long enough to get the engine and exhaust up to full operating temperature), let the vehicle cool down completely. Once the metal is cold, go back with your wrench and check the tightness of the nuts. You will often find that the initial heat cycle has caused the gasket to "set" and the metal to stretch slightly, leaving the bolts a bit looser than when you started. A quick snug-up after the first heat cycle is the secret to an exhaust system that stays leak-free for the long haul.
