Flywheel Gland Nut & Washer, Chromoly, 36mm

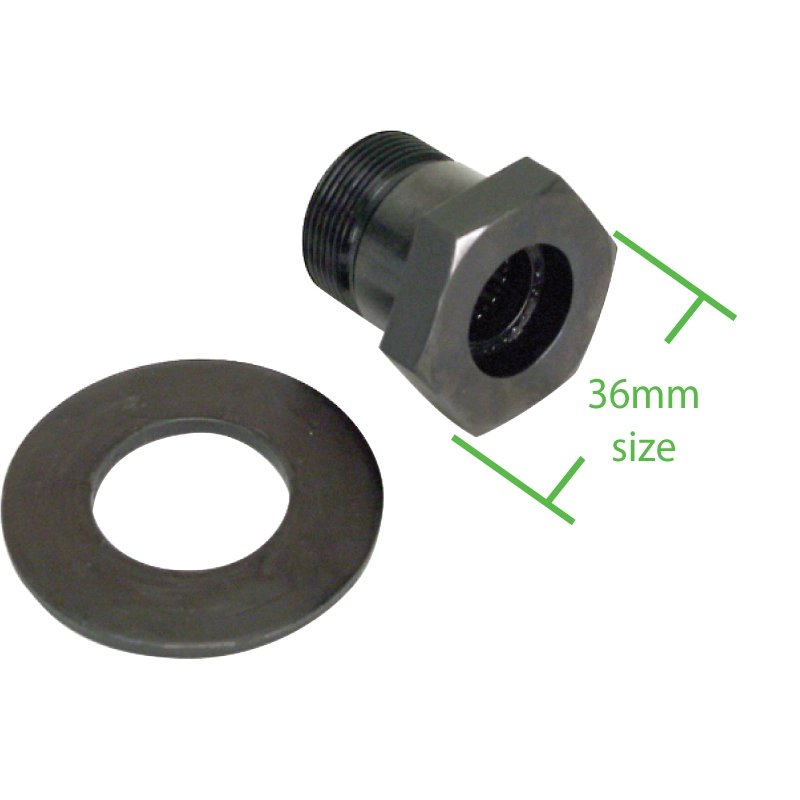

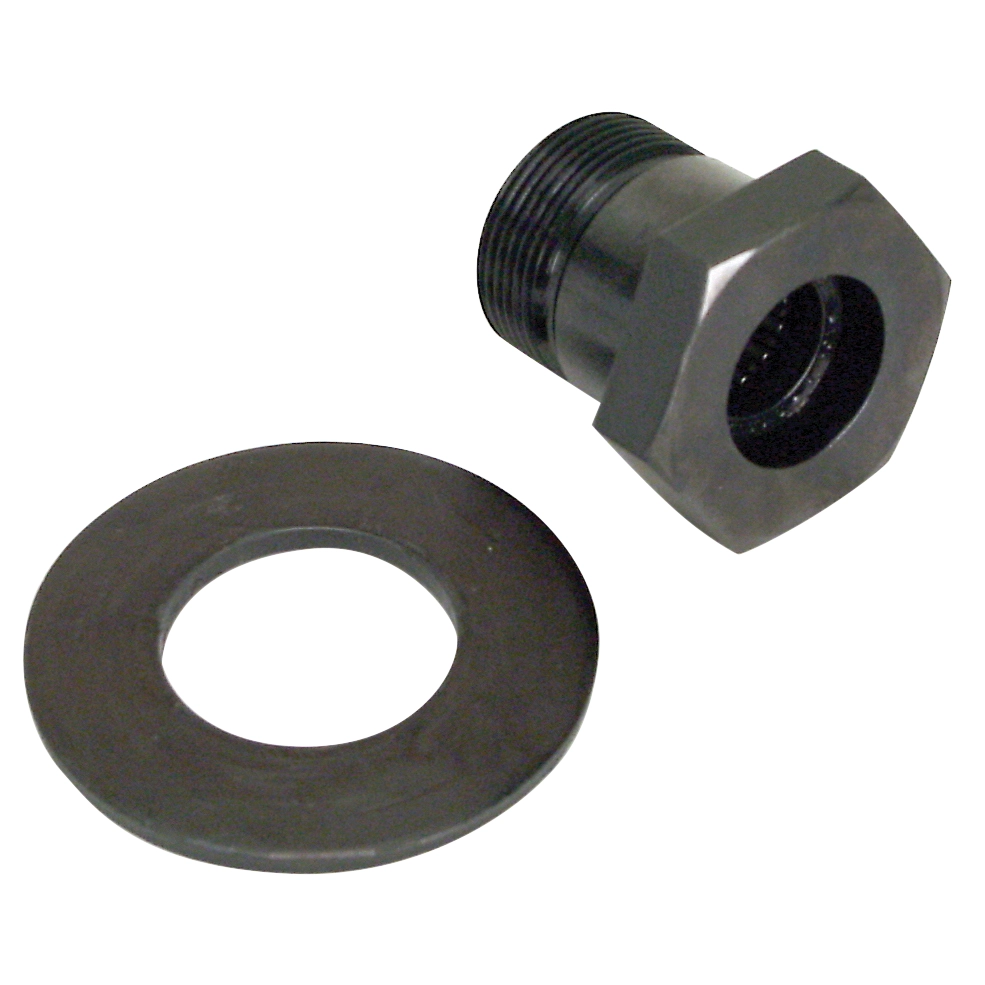

EMPI Heavy Duty Chromoly Flywheel Gland Nut and Washer - 36mm

High Performance Flywheel Security

When building a high-performance VW aircooled engine, the stock gland nut is often a weak link. This EMPI gland nut is manufactured from 4130 chromoly steel to provide the ultimate strength and reliability needed to keep the flywheel securely attached to the crankshaft under high RPM and high torque conditions. This kit includes the 36mm nut and a heavy-duty concave washer designed for maximum holding power.

Fitment and Compatibility

This 36mm gland nut is designed for Volkswagen Type 1 Beetle, Karmann Ghia, and VW Thing, as well as Type 2 Bus and Type 3 models. It is a direct upgrade for standard 1200cc, 1300cc, 1500cc, and 1600cc based engines. It is essential for any engine utilizing a counterweighted crankshaft or high-lift camshaft where increased stresses are placed on the flywheel connection.

Professional Tech Tips

Verify Torque Specifications: Do not rely on standard hand tools for installation. A chromoly gland nut requires significant torque to seat the flywheel properly. While stock specifications are approximately 217 ft-lbs, high-performance chromoly nuts are often torqued between 275 and 300 ft-lbs. Always use a torque multiplier or a high-quality torque wrench to ensure the nut does not loosen during operation.

Lubricate the Pilot Bearing: The gland nut houses the needle bearing for the transmission input shaft. Before installation, apply a small amount of high-temperature grease to the needle bearings. This ensures the input shaft rotates freely when the clutch is depressed and prevents premature wear on both the bearing and the transmission shaft.

Correct Washer Orientation: The included concave washer is designed to act as a spring to maintain tension. Ensure the concave side faces the flywheel. Installing the washer backward can result in insufficient clamping force, which may lead to sheared flywheel pins or damage to the crankshaft mating surface.
