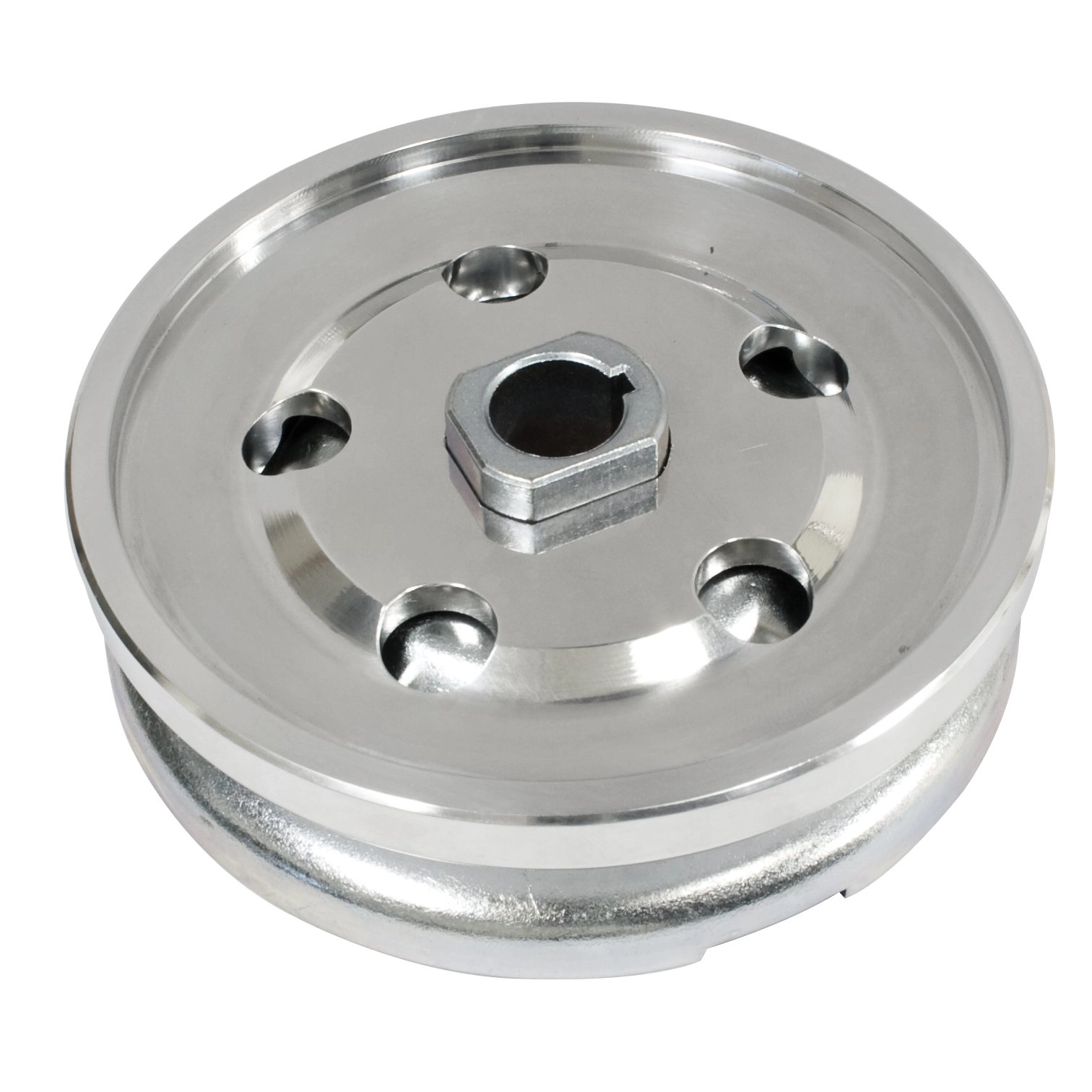

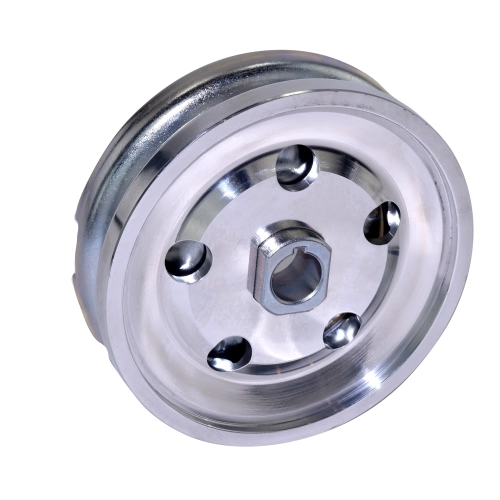

Billet Alternator Pulley, for Beetle, with Steel Inner Half

OVERVIEW

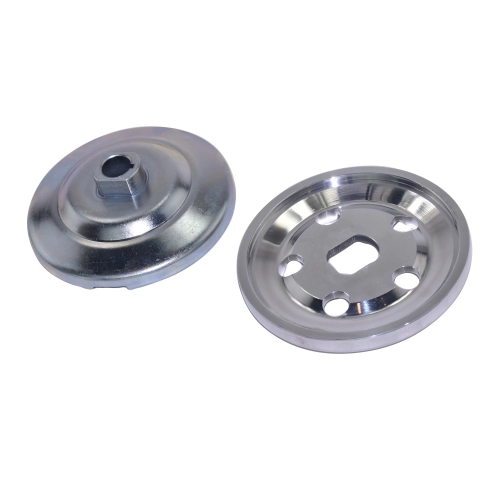

Upgrade your air-cooled engine''s charging system with the EMPI Billet Alternator Pulley, a premium component designed for the enthusiast who demands both show-quality aesthetics and rugged, long-term durability. Unlike standard one-piece aluminum pulleys that can suffer from accelerated wear and "grooving" where the V-belt makes contact, this hybrid design features a high-grade billet aluminum outer half paired with a heavy-duty chrome-plated steel inner half. This engineering choice is critical because the inner half of the pulley handles the brunt of the torque and friction from the belt. By utilizing steel for the contact surface, you ensure that your belt tension remains consistent over thousands of miles, preventing the common slipping issues and power loss associated with softer, all-aluminum pulleys that degrade under high heat and tension.

At Appletree Automotive, we know that the engine bay of your Beetle or Dune Buggy is a point of pride. This billet pulley provides that sharp, CNC-machined look that instantly modernizes your Type 1 upright engine while maintaining the classic mechanical geometry required for proper cooling fan speeds. The polished finish of the aluminum outer face contrasts beautifully with the chrome steel, making it a standout piece for any restoration or performance build. Whether you are running a high-output 12V alternator or a standard generator, this pulley offers the perfect balance of lightweight performance and "bulletproof" reliability, ensuring your charging system operates at peak efficiency while looking incredible under the decklid.

FITMENT

This Billet Alternator Pulley is designed for Type 1 based air-cooled engines and is compatible with the following models and applications:

• Volkswagen Beetle: 1967-1977 (Sedan and Convertible)
• Volkswagen Karmann Ghia: 1967-1974
• Volkswagen Bus / Type 2: 1967-1971 (With 1600cc upright engine conversion)
• Volkswagen Thing / Type 181: 1973-1974
• Custom Applications: Dune Buggies, Sand Rails, Trikes, and Baja Bugs using 12V Alternators or Generators
• Note: Specifically designed for standard 12-volt charging systems with a woodruff keyway shaft.

SPECS

Below are the technical specifications for the EMPI 33-1041-0 Billet Alternator Pulley:

• Part Number: 33-1041-0
• Outer Material: CNC-Machined 6061-T6 Billet Aluminum
• Inner Material: Chrome-Plated Heavy-Duty Steel
• Pulley Diameter: Standard OEM Specification (approx. 4 inches)
• Belt Type: Compatible with standard 9.5mm x 905mm or 11.3mm x 912mm V-belts
• Finish: Polished Billet Aluminum and Mirror Chrome
• Mounting: Includes keyway slot for standard 12V alternator/generator shafts
• Weight: Approximately 1.0 lb

PRO TIPS

1. Master the Art of Shim Adjustment

The tension of your V-belt on an air-cooled VW is not adjusted by moving the alternator, but by changing the number of shims between the two pulley halves. When installing this billet pulley, always start with a full set of 10 shims. Any shims not used between the halves to set the tension MUST be placed on the outside of the outer pulley half, under the nut. Never leave shims off the assembly entirely, as they act as a spacer for the pulley nut. If the belt is too loose, move a shim from the middle to the outside. If it''s too tight, move a shim from the outside to the middle.

2. Ensure Perfect Belt Alignment

Before firing up your engine, use a straight edge to check the alignment between your crank pulley and the new billet alternator pulley. If the alternator is sitting too far forward or backward in the stand, the belt will run at an angle, leading to rapid wear of the steel inner half and potential belt failure. You can adjust the position of the alternator by loosening the strap and sliding the unit within the alternator stand. A perfectly aligned belt ensures that the billet aluminum outer half stays looking pristine and vibration-free.

3. Don''t Over-Torque the Pulley Nut

While the inner half is made of steel, the outer half is billet aluminum. When tightening the large 21mm or 22mm pulley nut, use a pulley holding tool rather than jamming a screwdriver into the cooling fan vanes, which can bend them and cause an engine vibration. Tighten the nut firmly, but avoid using an impact wrench on the highest setting. Over-torquing can lead to stripping the threads on the alternator shaft or crushing the woodruff key. Re-check the nut tightness and belt tension after the first 50 miles of driving to account for the belt "settling" into the new pulley grooves.
