Dual Carb Linkage Kit, for Weber IDF & HPMX ULTRA KIT

Achieve Precision Throttle Response with the EMPI Ultra Dual Carb Linkage Kit

When it comes to extracting maximum performance from your air-cooled Volkswagen, nothing is more critical than the synchronization of your dual carburetors. The EMPI Ultra Dual Carb Linkage Kit for Weber IDF and HPMX carburetors is engineered to eliminate the "slop" and inconsistency often found in inferior, lightweight linkage setups. As a specialist, I can tell you that a dual-carb engine is only as good as its linkage; if one side is opening faster than the other, you''re losing power, wasting fuel, and increasing engine vibration. This "Ultra Kit" is designed with heavy-duty mounting plates that resist flexing under high-stress driving conditions, ensuring that your throttle inputs are translated directly and evenly to both carburetors. Whether you''re building a high-revving street car or a rugged off-road machine, this kit provides the mechanical stability required to keep your dual 40, 44, or 48 IDF/HPMX carbs perfectly in tune.

Beyond its mechanical superiority, this kit offers a comprehensive solution for your intake system by including high-quality air cleaners with polished aluminum top and bottom plates. Many builders find themselves hunting for compatible filters after purchasing a linkage, but this Ultra Kit streamlines the process by providing a matched set that fits perfectly over your Weber or HPMX bodies. The inclusion of aircraft-quality heim joints (rod ends) ensures smooth, bind-free operation throughout the entire throttle sweep, while the heavy-duty hex bar provides a rigid backbone for the system. This isn''t just a collection of parts; it''s a precision-engineered system designed to enhance the aesthetics of your engine bay while providing the reliable performance that Appletree Auto customers demand. From the thick gaskets to the specialized hardware, every component is selected to withstand the heat and vibration of the VW engine compartment, making it a definitive upgrade for any Type 1 or Type 3 performance build.

Vehicle and Engine Fitment

• Volkswagen Type 1 Beetle: All years utilizing dual Weber IDF or EMPI HPMX carburetors.
• Volkswagen Type 1 Karmann Ghia: All years with dual IDF/HPMX setups.
• Volkswagen Type 1 Thing (181): Performance builds with dual carburetor configurations.
• Volkswagen Type 3 (Fastback, Squareback, Notchback): Fits engines equipped with Type 1 style upright cooling shrouds and dual carbs.
• Dune Buggies and Sand Rails: Any Type 1 based air-cooled engine (1600cc to 2332cc+) running dual IDF or HPMX carb kits.
• Engine Compatibility: Specifically designed for Type 1 and Type 3 engines utilizing Weber IDF or EMPI HPMX carburetors.

Technical Specifications and Kit Contents

• Carburetor Compatibility: Fits Weber IDF series (40, 44, 48) and EMPI HPMX series carburetors.
• Linkage Style: Heavy-duty hex-bar cross-linkage system.
• Mounting Plates: Extra-thick, heavy-duty steel plates to prevent flexing and maintain synchronization.
• Rod Ends: Aircraft-quality heim joints for precision movement and longevity.

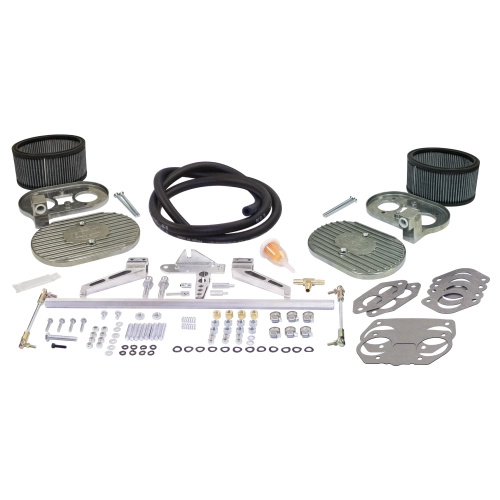

• Air Cleaners: Included dual air cleaners featuring polished aluminum top and bottom plates.
• Filter Element: High-flow washable gauze-style elements for maximum air intake.
• Hardware: Includes all necessary nuts, bolts, washers, and throttle return springs.
• Gaskets: Base gaskets for air cleaner to carburetor mounting included.
• Construction: Corrosion-resistant finishes on all steel components.

Expert Pro Tips for Installation and Maintenance

Tip 1: Perfecting the Synchronization

Installing the linkage is only half the battle; the real magic happens during synchronization. Always use a high-quality airflow meter (Snail-style Unisyn or similar) to measure the draw of each carburetor at idle. Before tightening the down-rods on the hex bar, ensure your idle speed screws are set identically. Once the idle is synced, have an assistant hold the throttle at roughly 2,500 RPM and check the sync again. If it''s off at higher RPMs, adjust the length of the threaded down-rods. The aircraft-quality heims in this kit make micro-adjustments easy, so don''t settle for "close enough"perfect sync is the secret to a smooth-idling and fast-revving VW.

Tip 2: Check for Binding and Shroud Clearance

Air-cooled VW engine compartments can be tight, especially with aftermarket fan shrouds. When installing the heavy-duty hex bar, verify that it has total clearance throughout its rotation. I''ve seen many "mystery" throttle hangs caused by the linkage arm lightly grazing the back of the fan shroud or a spark plug wire. Also, ensure that the throttle cable pull is straight and not angled, which can cause the cable to saw through the guide tube over time. With the engine off, have someone floor the accelerator pedal while you verify that the carburetors are reaching true wide-open throttle (WOT) without the linkage hitting the air cleaner bases.

Tip 3: Maintenance of Heim Joints and Pivot Points

While the rod ends in this Ultra Kit are aircraft-quality, they are still subject to the dusty environment of a VW engine bay. Periodically inspect the heim joints for any grit or buildup. I recommend using a "dry" lubricant (like a PTFE or graphite spray) rather than a heavy grease or oil. Wet lubricants tend to attract road grime and desert sand, which creates an abrasive paste that will prematurely wear out the ball-and-socket joint. A quick spray of dry lube every few thousand miles will keep the throttle feeling "buttery" and prevent the microscopic sticking that can lead to an inconsistent idle return.
