Proportioning Valve ALL48025

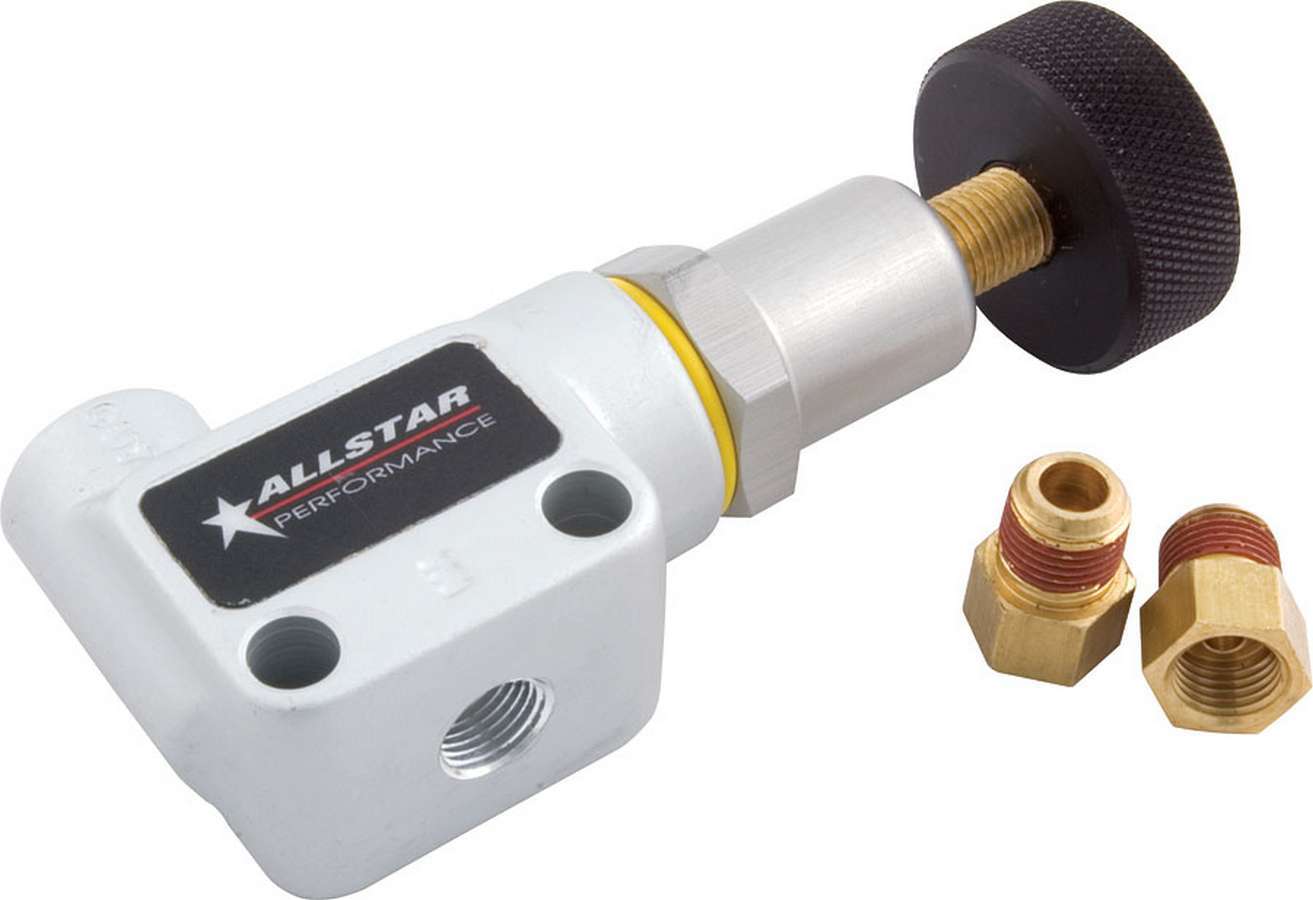

Take Control of Your Braking Performance with the Allstar Adjustable Proportioning Valve

When you are pushing your air-cooled VW to the limit, whether it is on the drag strip, a winding mountain road, or deep in the dunes, stock braking bias rarely cuts it. Most vintage Volkswagens were designed with a specific weight distribution and tire size in mind, but once you upgrade to front disc brakes, wider rear tires, or strip out the interior for a race build, your factory brake balance goes out the window. The Allstar Performance ALL48025 Proportioning Valve is the ultimate solution for the serious enthusiast looking to fine-tune their stopping power. By allowing you to decrease the pressure sent to the rear brakes, you can prevent dangerous rear-wheel lockup and ensure that your vehicle stays straight and composed under heavy deceleration. This is not just a safety upgrade; it is a performance necessity for anyone who has moved away from the stock four-wheel drum setup or has significantly altered their vehicle''s center of gravity.

Crafted with precision and designed for the rigors of high-performance driving, this valve offers a massive range of adjustment, providing up to a 57% reduction in line pressure. The intuitive rotary knob design allows for quick, on-the-fly adjustments, making it easy to dial in the perfect setting as track conditions change or as your brake pads bed in. For the VW community, this valve is a lifesaver when installing "Big Brake" kits that often cause the rear end to become "twitchy" during hard stops. The compact aluminum body is lightweight yet incredibly durable, fitting perfectly into the tight confines of a Beetle''s trunk or the chassis rail of a custom sand rail. When you shop at Appletree Automotive, you are getting a component that we trust in our own builds, ensuring that your classic Vee-Dub stops as fast as it goes.

Detailed Fitment for Air-Cooled VW and Custom Applications

While this is a high-performance universal component, it is a staple in the following Volkswagen and off-road builds:

• VW Beetle (Standard & Super): 1950 through 1979 (Ideal for front disc brake conversions).
• VW Bus (Type 2): 1950 through 1979 (Essential for heavy campers or modified Bay Windows).
• VW Karmann Ghia: 1956 through 1974.
• VW Type 3 (Squareback, Fastback, Notchback): 1961 through 1973.
• VW Thing (Type 181): 1973 through 1974.
• Dune Buggies & Sand Rails: All years and custom tube chassis (Meyers Manx, Berrien, etc.).
• Baja Bugs: Custom builds requiring precise bias for off-road terrain.

Technical Specifications and Dimensions

The Allstar ALL48025 is engineered for maximum reliability and ease of installation. Here are the technical details you need for your build:

• Adjustment Range: Fine-tune reduction from 0% up to 57% pressure decrease.
• Inlet/Outlet Ports: 1/8 Inch NPT female threads.
• Included Fittings: Two adapters to convert 1/8 Inch NPT to standard 3/16 Inch brake line (inverted flare).
• Body Material: High-grade billet aluminum with a sleek black anodized finish for corrosion resistance.
• Overall Height: 3-5/16 Inches (top of knob to bottom of body).
• Overall Width: 1-3/4 Inches.
• Overall Depth: 1 Inch.
• Knob Type: Large, knurled adjustment knob for easy grip even with racing gloves.
• Mounting: Two-bolt mounting holes integrated into the body for secure chassis attachment.

Pro Tips from the Appletree Specialist Team

Tip 1: Proper Plumbing and Directional Flow

It is absolutely critical to install this valve in the rear brake line, never the front. The valve is designed to reduce pressure, and you always want maximum pressure going to your front wheels for primary stopping power. Pay close attention to the "In" and "Out" markings on the valve body. Connecting the master cylinder line to the "Out" port will result in erratic brake behavior or a complete lack of rear braking. Always use a high-quality double flare tool when prepping your 3/16 inch steel lines to ensure a leak-free seal with the included adapters.

Tip 2: The "Safe Zone" Tuning Method

To properly tune your bias, start with the valve in the "full open" position (maximum pressure to the rear). Take your VW to a safe, vacant parking lot or a closed stretch of road. Perform a series of stops from 30 MPH, gradually increasing pedal pressure. If the rear wheels lock up before the fronts, turn the knob to decrease rear pressure. Repeat this process until the front wheels lock just slightly before the rears. This ensures the car remains stable and steerable during an emergency stop, preventing the "spinning top" effect caused by premature rear lockup.

Tip 3: Mounting for Accessibility vs. Protection

In a street-driven Beetle, many builders mount the proportioning valve near the master cylinder under the fuel tank area for a clean look. However, for race cars or off-road sand rails, we highly recommend mounting it within reach of the driver''s seat. As track conditions change or your fuel load lightens, the weight bias of the car shifts. Having the ability to click the knob a few notches while belted in can be the difference between a podium finish and a trip into the weeds. Just ensure the lines are protected from debris and moving parts like the shift linkage or steering column.
