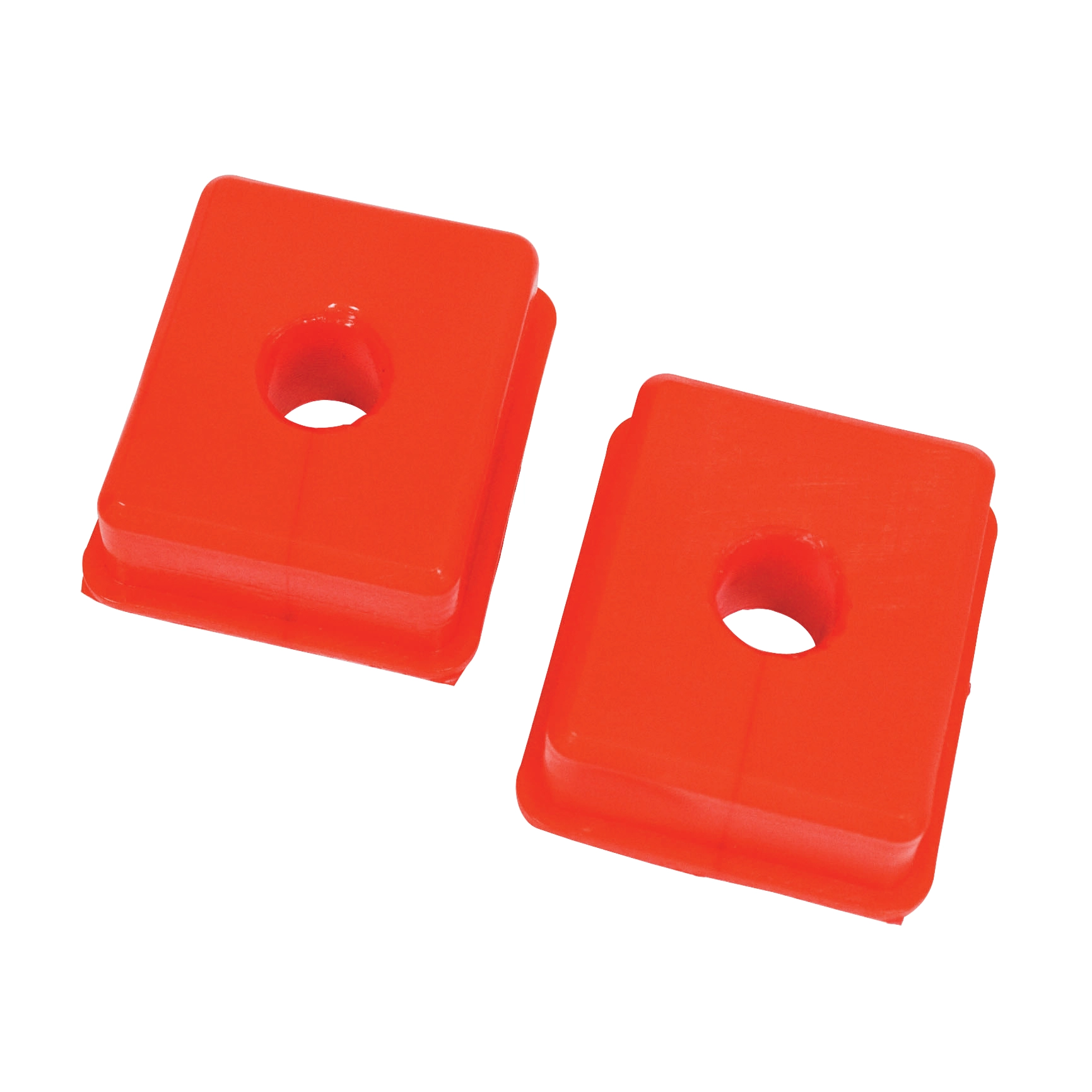

Shift Rod Coupler Inserts, for Late Style

OVERVIEW

If you have ever felt like you were stirring a pot of soup while trying to find third gear in your classic Volkswagen, you know exactly how frustrating a worn-out shift linkage can be. These EMPI Shift Rod Coupler Inserts are the precision-engineered solution to restoring that tight, "click-click" shifting feel that every air-cooled enthusiast craves. Designed specifically for the late-style square coupler housing, these inserts act as the critical union between your shift rod and the transmission''s selector shaft. Over decades of use, original rubber inserts dry rot, crack, and eventually disintegrate, leading to excessive play and missed shifts. By replacing those mushy, failed components with these high-density urethane inserts, you are effectively removing the "slop" from the system, ensuring that every movement of the shift lever translates directly to the gearbox.

Constructed from a high-quality, oil-resistant urethane, these inserts are a significant upgrade over the factory-style rubber bushings. Urethane provides a much firmer interface, which is essential for performance driving or simply for those who want a more modern, responsive feel in their vintage Beetle, Ghia, or Type 3. These inserts are designed to fit perfectly into the "caged" style couplers found on 1964 and later models, specifically designed as direct replacements for the internal components of Appletree part numbers 5548-11 and AC710001. Whether you are performing a full frame-off restoration or just trying to make your daily driver more enjoyable, these inserts offer a cost-effective way to rebuild your existing coupler rather than replacing the entire assembly. Don''t settle for vague gear engagement when a simple set of high-performance inserts can transform your driving experience.

FITMENT

• VW Beetle: 1964.5 through 1977 (Sedan & Convertible)
• VW Super Beetle: 1971 through 1979
• VW Karmann Ghia: 1965 through 1974
• VW Type 3 (Squareback, Fastback, Notchback): 1964 through 1973
• VW Thing (Type 181): 1973 through 1974
• Custom Applications: Fits most aftermarket late-style "square" shift rod couplers including EMPI and Appletree brands.

SPECS

• Part Number: 16-5104-0
• Material: High-Durometer Performance Urethane
• Color: Red
• Style: Late-Style (Fits Square/Caged Coupler Housings)
• Quantity: Sold as a Pair (2 Inserts per package)
• Compatibility: Replacement for inserts in couplers 5548-11 and AC710001
• Resistance: Highly resistant to oil, grease, and road grime

PRO TIPS

1. Proper Lubrication is Key

When installing these urethane inserts into your coupler cage, always use a small amount of high-quality synthetic grease or white lithium grease on the contact points. While urethane is incredibly durable, it can sometimes produce a "squeak" if installed completely dry. A light coat of grease not only helps the inserts slide into the cage during assembly but also ensures smooth rotation of the selector pin, preventing premature wear on the metal components of the linkage. Avoid using petroleum-based greases that are not compatible with plastics or urethanes; stick to silicone or synthetic-based lubricants for the best results.

2. Inspect the Shift Rod Bushing Simultaneously

If your coupler inserts are worn out enough to require replacement, there is a 99% chance that your front shift rod bushing (located under the gear shifter inside the tunnel) is also toasted. A common mistake is replacing the rear coupler while ignoring the front bushing, which results in only a marginal improvement in shift quality. While you have the coupler disconnected from the shift rod, take the extra ten minutes to pull the shifter and check the plastic hanger bushing. Replacing both the front bushing and these rear inserts at the same time will provide a night-and-day difference in your VW''s shifting precision.

3. Check the "Hockey Stick" Alignment

Before you tighten the square-head set screw on your rebuilt coupler, ensure that the transmission is in neutral and the "hockey stick" (the selector shaft exiting the nose cone of the transmission) is centered. Sometimes the set screw hole on the shift rod or the transmission shaft can become wallowed out over time. When reinstalling the coupler with your new inserts, make sure the pointed set screw seats fully into the dimple of the shaft. We highly recommend using safety wire on the square-head screw to prevent it from backing out due to vibration, which is a common cause of total shift failure on the road.
