Shift Coupler Bolt, Fits All Years Aircooled VW Shift Shafts

OVERVIEW

When it comes to the precision of your classic Volkswagen''s gear selection, every millimeter counts. The shift coupler bolt, specifically part number 211-711-189A, is a small but vital component that bridges the gap between your shift rod and the transmission''s nose cone shift shaft. Over decades of use, the original bolts can suffer from thread fatigue, rounded heads, or worn-down tapered points, leading to that notorious "stirring soup" feeling when you are trying to find third gear. This EMPI replacement bolt is engineered to restore that factory-crisp engagement by providing a rock-solid mechanical lock between the shift coupler and the internal transmission linkage. Whether you are performing a full frame-off restoration or just trying to eliminate excessive play in your daily driver, replacing these bolts is one of the most cost-effective ways to improve your air-cooled driving experience.

Precision is the name of the game with this high-tensile steel bolt. It features the correct conical tip designed to seat perfectly into the detent or "dimple" found on the shift shaft and the shift rod adjuster. This unique design ensures that once tightened, there is zero rotational slip, allowing every movement of your shifter to be translated directly to the transmission gears. These bolts are designed for the early-style shift couplers used across the entire air-cooled lineup, from the earliest Split Window Beetles to the late-model Bay Window Buses. Because the shifting system is subject to constant vibration and torque, these bolts include a pre-drilled head for safety wire installation. This is a critical safety feature that prevents the bolt from backing out during operation, which would otherwise leave you stranded without the ability to change gears. At Appletree Auto, we recommend replacing these in pairs to ensure your entire linkage system is uniform and secure.

FITMENT

• Volkswagen Beetle (Type 1): 1946 - 1979
• Volkswagen Super Beetle: 1971 - 1979
• Volkswagen Karmann Ghia: 1956 - 1974
• Volkswagen Bus (Type 2): 1962 - 1974
• Volkswagen Type 3 (Squareback, Fastback, Notchback): 1962 - 1973
• Volkswagen Thing (Type 181): 1973 - 1974
• Custom Applications: Fits most Dune Buggies, Sand Rails, and Trikes utilizing standard VW shift shafts.

SPECS

• Part Number: 211-711-189A
• Manufacturer: EMPI
• Material: High-Grade Hardened Steel
• Finish: Zinc Plated for Corrosion Resistance
• Thread Pitch: M8 x 1.25

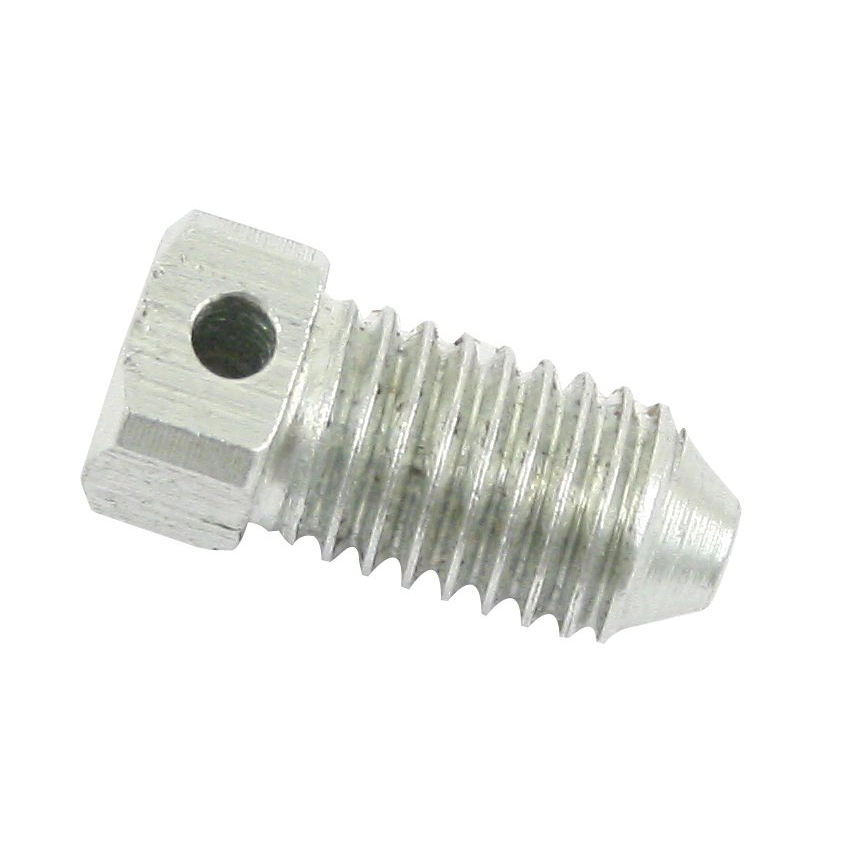

• Head Style: Square Head with Safety Wire Bore
• Tip Type: Conical / Tapered Point for Detent Alignment
• Quantity Required: 2 per Shift Coupler (Sold Individually)
• Weight: 0.1 lbs

PRO TIPS

1. Always Use Safety Wire for Total Security

The square head of this shift coupler bolt is pre-drilled for a very specific reason: safety wire. Air-cooled VW engines and transaxles create significant harmonic vibrations that can easily vibrate a standard bolt loose over time. Once you have tightened the bolt into the shift shaft detent, you MUST thread safety wire through the head of the bolt and wrap it around the coupler or the opposing bolt. This mechanical lock ensures that even if the bolt tries to back out, the wire holds it in place. Never rely on thread locker alone in this high-vibration area, as the heat and oil environment can cause chemical lockers to fail. Proper safety wiring is the hallmark of a professional VW mechanic.

2. Verify Detent Alignment Before Final Torque

One of the most common mistakes when installing a new shift coupler is failing to seat the bolt point directly into the dimple of the shift shaft. Before you put a wrench on the bolt, use a flashlight to look through the threaded hole of the coupler and move the shift rod until you see the machined detent on the shaft centered in the hole. Slowly thread the bolt in by hand; you should feel the tapered point "find" its home. If the bolt feels tight before it is fully seated, the point is likely hitting the flat part of the shaft rather than the hole. Forcing it will damage the threads and leave your shifter feeling loose and dangerously unaligned.

3. Inspect the Coupler Bushings Simultaneously

Since you are already under the inspection plate or under the rear seat to replace these bolts, this is the perfect time to inspect your shift coupler bushings. If the rubber or urethane inserts inside the coupler are cracked, oil-soaked, or missing, even a brand-new, perfectly torqued bolt won''t fix your shifting issues. We highly recommend checking the "cage" of the coupler for any ovaling or wear. If you see any daylight between the bushings and the metal housing, consider upgrading to a heavy-duty urethane coupler set alongside these new bolts to achieve the tightest, most reliable gear shifts possible.
