12mm 1.5 Lug Nut, 60 Degree Taper, Black

OVERVIEW

When it comes to securing your custom wheels, you should never compromise on quality or precision. These 12mm 1.5 Lug Nuts are engineered specifically for the air-cooled enthusiast who demands a sleek, aggressive look without sacrificing the structural integrity of their drivetrain. Finished in a deep, durable black coating, these lug nuts provide the perfect accent for blacked-out wheels or provide a high-contrast pop against polished aluminum. Unlike standard hardware store bolts or generic automotive nuts, these are designed with the specific 60-degree taper (also known as an acorn seat) required by the vast majority of aftermarket wheels found in the VW industry today. Whether you are building a rugged Baja Bug, a high-performance sand rail, or a slammed street cruiser, these lug nuts ensure that your wheels stay exactly where they belongfirmly attached to your hubs.

The 12mm x 1.5 thread pitch is the gold standard for many classic Volkswagen applications, particularly for those who have converted their drums or discs to a stud-and-nut configuration. These lug nuts feature a low-profile .63-inch height, making them ideal for wheels where a long, protruding nut would interfere with a center cap or simply look out of place. The .75-inch (3/4 hex) head provides a substantial surface area for your socket, reducing the risk of rounding off the edges during high-torque applications. At Appletree Automotive, we understand that the small details make the biggest difference in a build. That is why we offer hardware that meets the rigorous demands of off-road vibration and high-heat braking cycles while maintaining an aesthetic that elevates the overall appearance of your vintage VW.

FITMENT

These lug nuts are designed for vehicles utilizing 12mm x 1.5 threaded studs. Common fitments for air-cooled Volkswagens include:

• VW Beetle (Standard & Super): Fits models using 12mm stud conversions, common on 4-lug (4x130) patterns.
• VW Karmann Ghia: Fits 1967-1974 models with 12mm stud upgrades or custom disc brake kits.
• VW Type 3 (Squareback, Fastback, Notchback): Fits 1966-1973 models converted to 12mm studs.
• VW Thing (Type 181): Perfect for custom wheel setups on the classic military-inspired cruiser.
• Sand Rails & Dune Buggies: Ideal for any custom chassis utilizing VW-based spindles and 12mm threaded hubs.
• Aftermarket Wheels: Specifically required for EMPI, CIP1, and other custom wheels that utilize a 60-degree tapered seat rather than the factory radius seat.

SPECS

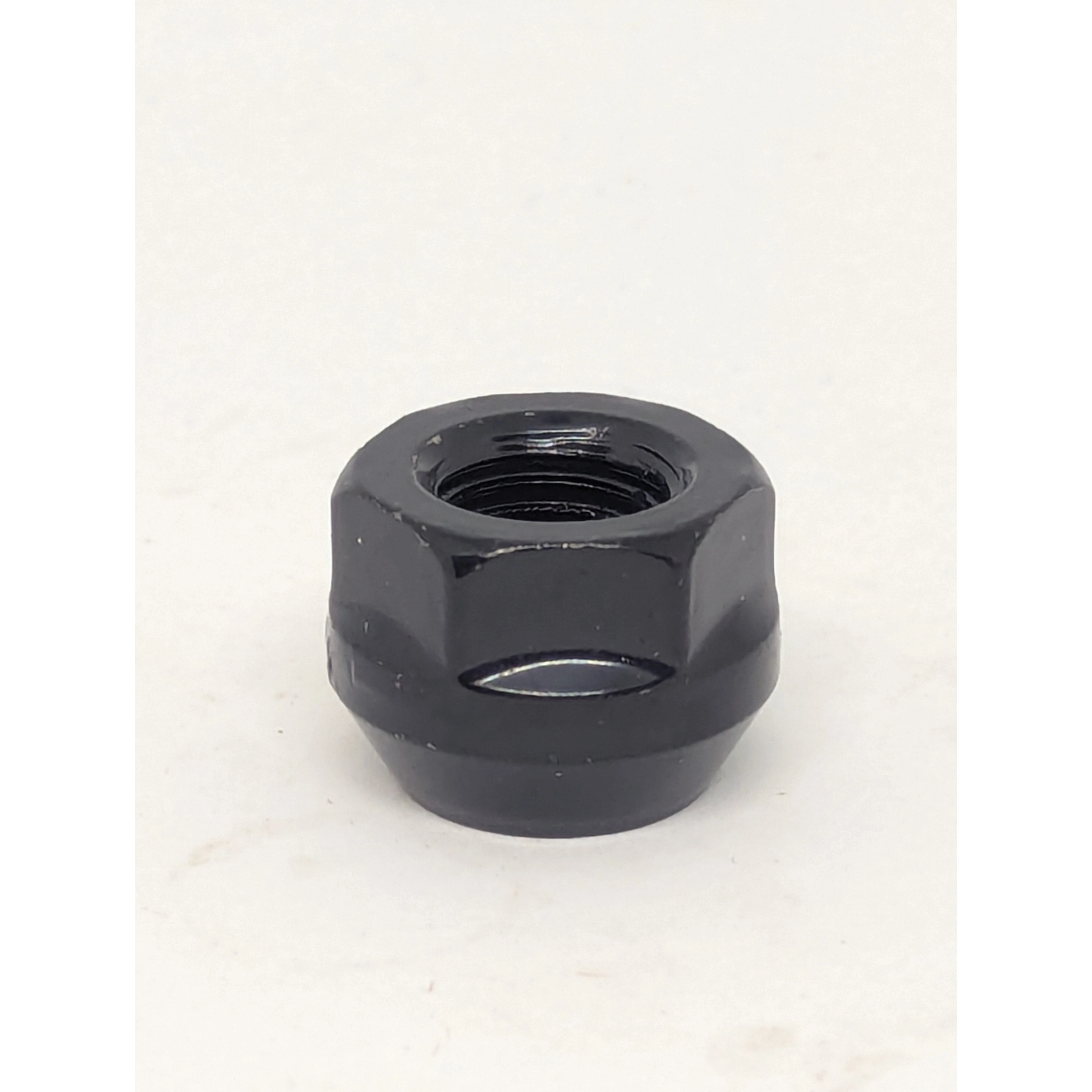

Below are the technical specifications for the BA-A-5306OPBK lug nut:

• Thread Size: 12mm x 1.5
• Seat Type: 60 Degree Taper (Conical/Acorn)
• Hex Size: 3/4 Inch (.75)
• Overall Height: 5/8 Inch (.63)
• Material: Cold-Forged Heat-Treated Steel
• Finish: Black Electrophoretic Coating
• Quantity: Sold Individually

PRO TIPS

1. Verify Your Seat Type Before Installation

It is critical to understand that Volkswagen factory wheels typically use a "Ball" or "Radius" seat, which is curved. Most aftermarket wheels, such as those made of cast aluminum or modular steel, require a "Tapered" or "Acorn" seat, which is a straight 60-degree angle. Never mix these up. Using a tapered nut on a radius wheel, or vice versa, will result in a lack of proper surface contact. This leads to the lug nuts loosening over time, which can damage your wheel mounting holes or, in the worst-case scenario, cause the wheel to shear off the studs while driving. Always inspect the lug pocket of your wheel to confirm it requires a 60-degree taper.

2. Hand-Start and Torque to Specification

To preserve the black finish and ensure the longevity of your threads, always start these lug nuts by hand. Avoid using high-powered pneumatic impact wrenches, as they can easily chip the black coating and over-stretch the threads. Once the nuts are hand-tight, use a calibrated torque wrench to tighten them in a star pattern. For a 12mm VW stud, the standard torque is generally around 80 ft-lbs, but always check your specific wheel manufacturer''s recommendations. Additionally, we highly recommend re-torquing your lug nuts after the first 50 miles of driving to account for any "settling" of the metal components.

3. Check for Proper Thread Engagement

When switching to custom wheels or adding spacers, you must ensure you have enough thread engagement for safety. A good rule of thumb for 12mm x 1.5 hardware is that you need at least 6 to 8 full turns of the lug nut before it seats against the wheel. If you cannot achieve this many turns, your studs are too short, and you are at risk of stripping the threads under load. If you find yourself in this situation, you should look into installing longer press-in or screw-in studs to ensure the lug nut has a full grip on the fastener. Safety is the most important part of any air-cooled build.
