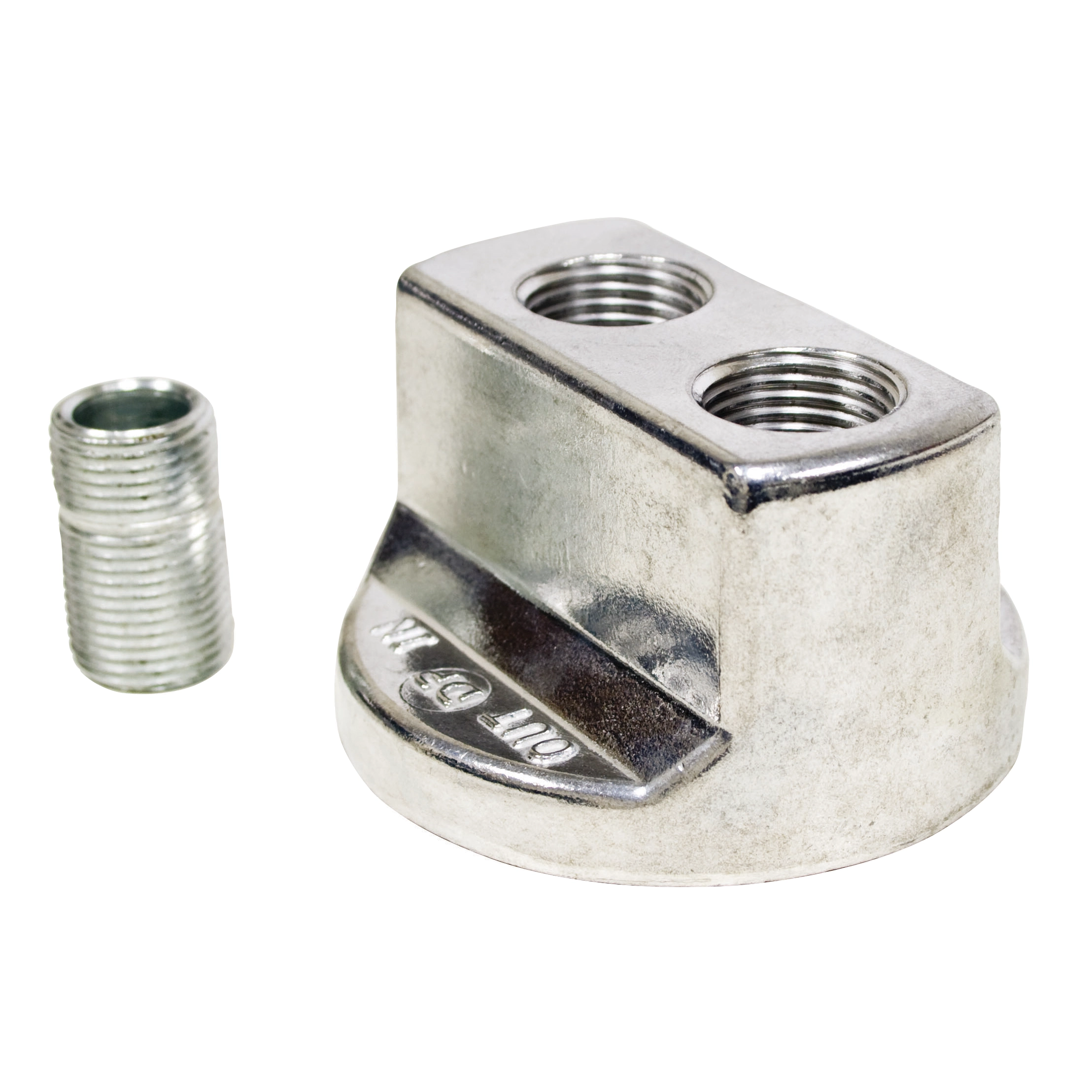

Oil Filter Adapter, Block Off Style with Ports

OVERVIEW

When you are pushing your air-cooled powerplant to the limit, thermal management becomes the single most important factor in ensuring the longevity of your engine. The EMPI Billet Oil Filter Adapter is a precision-engineered solution designed for the serious VW enthusiast who needs to reroute oil flow for external cooling or filtration without the permanent commitment of machining the engine case. This block-off style adapter is CNC-machined from high-grade billet aluminum, providing a rugged and leak-free interface that replaces your standard spin-on oil filter. By utilizing this adapter, you effectively convert your existing oil filter mount into a high-flow distribution block, allowing you to plumb lines directly to a remote oil cooler or a secondary filtration reservoir. It is the perfect choice for high-performance builds where engine bay space is at a premium and heat dissipation is a constant battle.

At Appletree Auto, we know that reliability is built on the details, and this EMPI adapter delivers the consistency you demand. The unit features two 3/8 NPT ports, offering a universal fit for various fittings and hose sizes, making it incredibly versatile for custom plumbing jobs. Whether you are building a weekend warrior, a dedicated drag racer, or a rugged off-road dune buggy, this adapter ensures that your oil is moving where it needs to go with minimal restriction. It eliminates the need for messy case-tapping and allows for a clean, professional installation that looks as good as it performs. Don''t settle for subpar cooling solutions that put your expensive internal components at risk; integrate this billet adapter into your system to achieve the ultimate in oil temperature control and system flexibility.

FITMENT

This adapter is designed to fit any standard 3/4"-16 thread oil filter mount, which is the industry standard for most air-cooled VW aftermarket oil pumps and remote filter brackets. It is commonly used on the following models equipped with spin-on filter systems:

• Volkswagen Type 1: Beetle, Bug, and Super Beetle (All years with aftermarket spin-on pump or remote mount).
• Volkswagen Type 2: Bus, Transporter, Kombi, and Microbus (1950-1979).
• Volkswagen Type 3: Fastback, Squareback, and Notchback.
• Volkswagen Karmann Ghia: All years.
• Volkswagen Thing (Type 181): All years.
• Custom Applications: Sand Rails, Dune Buggies, Trikes, and kit cars utilizing VW-based engines with external filtration.

SPECS

Detailed technical specifications for the EMPI 00-9229-0 Oil Filter Adapter:

• Material: High-quality CNC-machined Billet Aluminum for maximum durability and heat resistance.
• Mounting Thread: 3/4"-16 internal thread (Matches standard VW spin-on filter mounts).
• Port Size: Dual 3/8" NPT (National Pipe Thread) ports for inlet and outlet plumbing.
• Finish: Raw Billet Aluminum for a clean, race-ready aesthetic.
• Seal Type: High-temp rubber O-ring included for a positive, leak-proof seal against the mounting base.
• Design: Low-profile block-off style to maximize clearance in tight engine compartments.
• Part Number: EMPI 00-9229-0.

PRO TIPS

Pro Tip 1: Proper Thread Sealing is Critical. Since this adapter uses 3/8 NPT ports, you must use a high-quality thread sealant or Teflon tape on your fittings to prevent oil weeping. However, it is vital that you do not apply sealant to the first two threads of the fitting. This prevents any excess material from breaking off and entering the oil galleys, which could cause catastrophic damage to your bearings. Always double-check that your fittings are snug but do not over-tighten them into the billet aluminum, as NPT threads are tapered and can crack the housing if excessive force is used.

Pro Tip 2: Plan Your Oil Flow Direction. Before final installation, verify the flow direction of your oil pump or filter mount. One port will be the "pressure out" from the pump and the other will be the "return" to the engine. If you are plumbing this to an external cooler, ensure the oil enters the bottom of the cooler and exits the top to prevent air pockets from forming in the cooling fins. Correct routing ensures that your thermal management system operates at peak efficiency and prevents cavitation within the oiling circuit.

Pro Tip 3: Check for Vibration Clearance. When installing this adapter on a Beetle or a Bus, the engine moves significantly under torque. Ensure that the hoses connected to the 3/8 NPT ports have enough slack and are secured with cushioned P-clamps. You don''t want your oil lines rubbing against the sharp edges of the tinware or the frame horns. If you are using stainless braided lines, keep in mind that they can act like a saw against aluminum or plastic components over time, so use protective sleeves where necessary to protect your investment.
