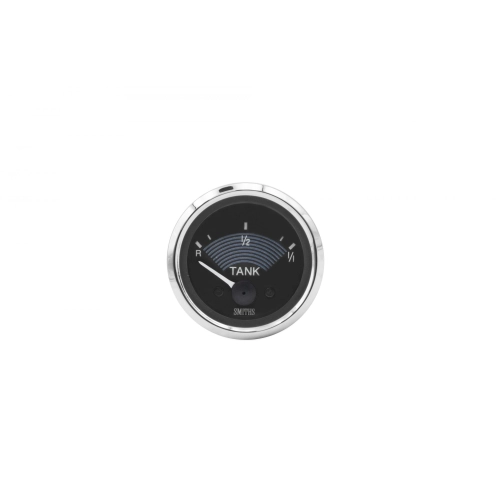

52mm Fuel Gauge For Type 1, Chrome Bezel 6 Volt

OVERVIEW

When you''re restoring a classic air-cooled Volkswagen, keeping the dashboard looking period-correct while ensuring functional reliability is a delicate balancing act. The EMPI 52mm Fuel Gauge with a polished chrome bezel and black dial is designed specifically for those purists who have maintained their 6-volt electrical systems. Unlike generic modern gauges that often require messy adapters or voltage step-downs, this unit is engineered to integrate seamlessly into your vintage cockpit. The classic styling provides that timeless European look that defined an era of motoring, offering a crisp, easy-to-read interface that tells you exactly how much fuel remains in your tank without the erratic needle-bounce common in worn-out original units. It is the perfect solution for owners who want to maintain the 6V integrity of their vehicle while upgrading to a component that actually works every time you turn the key.

Accuracy is paramount when you''re out on the open road or cruising to a local show, and there is nothing more frustrating than a fuel gauge that leaves you guessing. This specific gauge is calibrated to work in harmony with your original Volkswagen fuel sending unit, ensuring that the Ohm range matches the mechanical movement of the needle. Whether you are finishing a concourse-level restoration on a 1960s Beetle or keeping a vintage-inspired dune buggy period-correct, this 6V gauge delivers the perfect blend of old-school charm and modern manufacturing tolerances. At Appletree Auto, we know that the details matter, and this chrome-bezel beauty is the professional choice for enthusiasts who refuse to compromise on their 6-volt electrical architecture. It provides the peace of mind that comes with a steady needle and a face that looks like it belongs in the dash of a German icon.

FITMENT

• VW Type 1 Beetle: 1950 through 1966 (Standard 6-Volt Models)
• VW Type 2 Bus: Early 6-Volt configurations utilizing a 52mm dashboard cut-out
• VW Karmann Ghia: 1955 through 1966 6-Volt models
• Custom Dune Buggies: Any air-cooled build utilizing a 6-Volt electrical system and a standard 2-1/16 inch (52mm) mounting hole
• VW Thing (Type 181): Early production models or custom 6V conversions

SPECS

• Diameter: 52mm (Standard 2-1/16 inch mounting size)
• Operating Voltage: 6 Volts DC (Specifically for early VW electrical systems)
• Bezel Finish: High-Luster Polished Chrome
• Face Color: Classic Black with high-contrast white numerals
• Pointer Color: High-visibility Red/Orange
• Calibration: Calibrated for stock Volkswagen fuel sending units
• Illumination: Includes 6V bulb and socket for night-time visibility

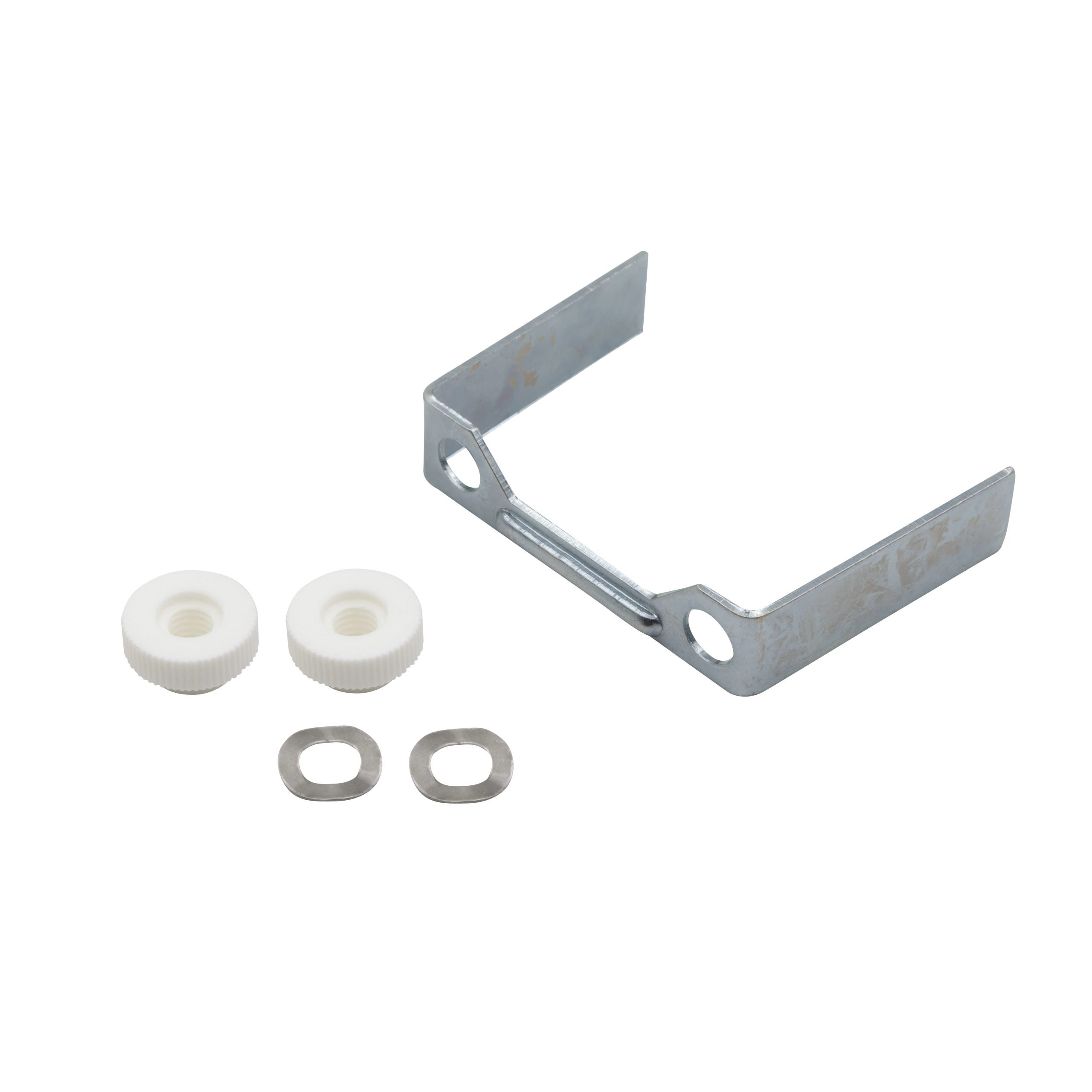

• Mounting Hardware: Includes U-bracket and thumb nuts for secure installation
• Part Number: 14-1124-0

PRO TIPS

1. Verify Your Ground Connection: In the world of 6-volt air-cooled Volkswagens, 90% of gauge failures are actually grounding issues rather than internal gauge failures. Since a 6V system has half the "push" of a 12V system, any corrosion or paint on the dashboard where the gauge bracket mounts can cause the needle to read incorrectly or not move at all. We recommend lightly sanding the back of the dashboard mounting surface to bare metal where the U-bracket makes contact, ensuring a crystal-clear path to ground for the most accurate fuel level readings possible.

2. Inspect the Sending Unit Ohm Range: Before finalizing your installation, always check the condition of your fuel tank sending unit. This EMPI gauge is designed to work with the standard Ohm range of a stock VW sender. If your sender is original and has "dead spots" in the internal rheostat, the new gauge will reflect those skips. Take a moment to pull the sender from the tank, connect the wires to the gauge, and manually move the float arm up and down. If the needle moves smoothly from "Empty" to "Full" without jumping, you know your wiring and sender are in perfect sync.

3. Use Proper Gauge Wire and Terminals: Because 6-volt systems are highly sensitive to voltage drop, you should never use thin, "telephone-style" wire for your gauge connections. We recommend using 16-gauge or 18-gauge multi-strand copper wire with high-quality crimp-on spade terminals. Ensure that your power source comes from a fused terminal on the ignition switch so the gauge only draws power when the car is on. Adding a small dab of dielectric grease to the terminals on the back of the gauge will prevent future oxidation, which is critical for maintaining accuracy in the humid environments often found in vintage cars.
