2-1/16 Water Temp Gauge, Cockpit Series, 250 Degrees

OVERVIEW

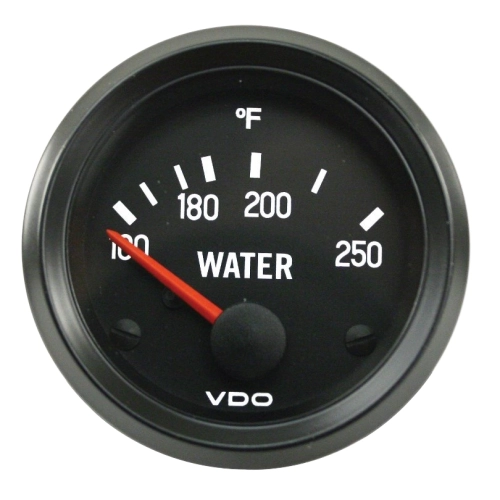

The VDO Cockpit Series Water Temp Gauge is the quintessential choice for drivers who demand precision and a timeless aesthetic in their dashboard layout. As the series that arguably set the standard for aftermarket instrumentation, the Cockpit line features a crisp, flat black face paired with high-contrast white numerals and a vivid red pointer. This combination isn''t just about looks; it''s engineered for maximum readability at a glance, whether you''re tearing through the dunes in a sand rail or cruising the coastline in a vintage Transporter. When you install a VDO gauge, you aren''t just adding a tool; you''re integrating decades of German engineering heritage into your vehicle''s cockpit, ensuring that you have the most reliable data possible to protect your engine from overheating.

Monitoring your engine''s operating temperature is critical, especially in high-performance or custom-built applications where the stock warning lights simply don''t provide enough information. This 2-1/16 inch (52mm) gauge provides a clear 100-250 degree Fahrenheit range, allowing you to spot thermal trends before they become catastrophic failures. Whether you are running a water-cooled conversion in a late-model Westfalia or building a high-output Subaru-powered Beetle, this gauge offers the professional-grade accuracy required for serious tuning. Its rugged construction is designed to withstand the vibrations and harsh environments typical of off-road and classic car usage, making it a staple for the Appletree Automotive community and air-cooled enthusiasts worldwide.

FITMENT

While this is a universal 2-1/16 inch (52mm) gauge, it is most commonly utilized in the following Volkswagen and off-road applications:

• VW Beetle: All years and models (Custom dash or under-dash pod).
• VW Super Beetle: All years and models.
• VW Karmann Ghia: All years.
• VW Bus / Type 2: Split Window, Bay Window, and Vanagon (Especially water-cooled conversions).
• VW Type 3: Squareback, Fastback, and Notchback.
• VW Thing: Type 181 Safari models.
• Custom Builds: Dune Buggies, Sand Rails, Meyers Manx, and Kit Cars.
• Water-Cooled Conversions: Ideal for air-cooled chassis running Rabbit, Jetta, or Subaru engine swaps.

SPECS

• Manufacturer Part Number: V3-1003-9
• Product Series: VDO Cockpit Series
• Gauge Diameter: 2-1/16 inches (52mm)
• Temperature Range: 100F to 250F
• Input Type: Electrical Analog
• Operating Voltage: 12 Volts
• Bezel Finish: Black
• Face Color: Flat Black
• Numeral Color: White
• Pointer Color: Red
• Lighting: Incandescent Perimeter Backlighting (Bulb included)
• Terminal Type: 1/4 inch Spade Connectors
• Mounting Hardware: Included (Spin-on mounting nut)

PRO TIPS

1. Perfect Your Sender Match

In the world of VDO gauges, matching the resistance (Ohms) of your sending unit to the gauge is non-negotiable. This specific gauge is calibrated for a 250-degree range. If you attempt to use a 300-degree sending unit with this 250-degree gauge, your readings will be completely inaccurate, likely showing much higher or lower than the actual temperature. Always verify the part number of your sendersuch as the V3-2308-8 or V3-2309-5to ensure it matches the 250-degree sweep of this Cockpit series unit.

2. The Importance of a Clean Ground

Electrical gauges are only as accurate as their ground connection. Many enthusiasts experience "needle bounce" or erratic readings when they turn on their headlights or wipers. This is almost always due to a poor ground. For the most stable temperature reading, run a dedicated ground wire from the gauge directly to a clean spot on the chassis or a terminal block. Additionally, ensure your engine block is properly grounded to the frame with a heavy-duty strap, as the sending unit relies on that engine ground to complete the circuit.

3. Careful with the Thread Sealant

When installing your VDO water temperature sending unit into a radiator hose adapter or the cylinder head, be extremely cautious with Teflon tape or thread sealant. Because the sending unit typically uses the threads to ground itself to the engine, over-applying insulating tape can "break" the electrical path. If the sender cannot
