Fuel Pressure Isolator 61-300

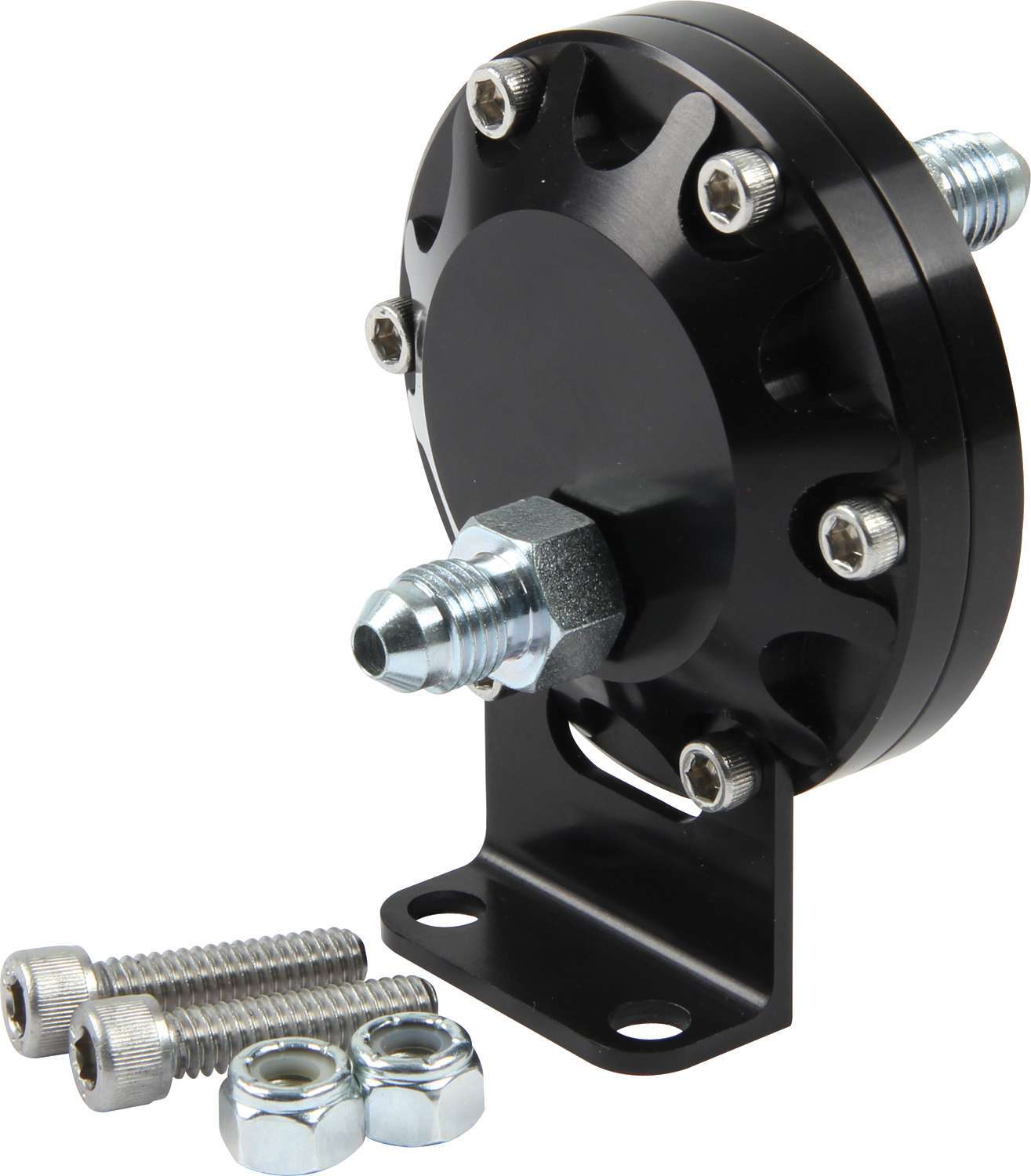

Quickcar Racing Products Fuel Pressure Isolator - Part #61-300

Safety is the cornerstone of any high-performance air-cooled build, and the Quickcar Racing Products Fuel Pressure Isolator is an essential component for the serious VW enthusiast. When you are pushing high RPMs in a drag Beetle or navigating punishing terrain in a Baja Bug, having an accurate, mechanical fuel pressure gauge is vital for monitoring your engine''s health. However, running a pressurized fuel line directly into the cockpit is a significant fire hazard that can lead to catastrophic results in the event of a leak or gauge failure. This isolator solves that problem by acting as a fluid-filled diaphragm barrier. It allows you to mount a mechanical gauge on your dashboard while keeping the actual combustible fuel safely on the engine side of the firewall. By using a 50/50 mix of water and antifreeze as the transfer medium, the isolator transmits the exact pressure from your fuel system to the gauge without a single drop of gasoline, methanol, or alcohol ever entering the driver''s compartment.

Engineered for durability and precision, the Quickcar 61-300 is constructed from premium 6061-T6 billet aluminum and finished with a sleek black anodized coating to resist corrosion and wear. This isn''t just a safety device; it''s a piece of high-performance hardware designed to withstand the vibrations and heat cycles common in air-cooled Volkswagen engine bays. Whether you are running a high-volume electric pump for a dual-carbureted Type 1 engine or a specialized methanol setup for sand drags, this isolator provides the reliability you need. The unit is capable of monitoring pressures up to 80 PSI, making it more than adequate for most naturally aspirated and many boosted VW applications. With its included mounting bracket and -4AN adapter fittings, it integrates seamlessly into your existing plumbing, ensuring that your cockpit remains a safe environment while providing the real-time data necessary for tuning and performance monitoring.

Comprehensive Fitment List

This universal fuel pressure isolator is a staple for custom performance builds and is highly recommended for the following Volkswagen models and off-road applications:

• Volkswagen Type 1: Beetle and Bug (1946-1979)
• Volkswagen Type 2: Bus, Transporter, and Kombi (1950-1979)
• Volkswagen Type 3: Fastback, Squareback, and Notchback (1961-1973)
• Volkswagen Karmann Ghia: (1955-1974)
• Volkswagen Thing: Type 181 (1973-1974)
• Off-Road Applications: Baja Bugs, Sand Rails, Dune Buggies, and Manx-style kits.
• Custom Racing: NHRA/PRA Drag Beetles, Formula Vee, and Autocross VWs.

Technical Specifications

• Manufacturer: Quickcar Racing Products
• Part Number: 61-300 (QRP61-300)
• Material: 6061-T6 Billet Aluminum
• Finish: Black Anodized
• Maximum Pressure Rating: 80 PSI
• Inlet/Outlet Fittings: -4AN Male Adapters Included
• Fuel Compatibility: Gasoline, Alcohol, and Methanol
• Included Components: Isolator body, mounting bracket, -4AN fittings, and installation hardware
• Transfer Medium: 50/50 Water and Antifreeze mix (required for operation)

Specialist Pro Tips for Installation

Pro Tip 1: The Bleeding Process is Critical. To ensure your mechanical gauge reads accurately, you must ensure there are no air bubbles trapped in the line between the isolator and the gauge. We recommend filling the gauge-side line with your 50/50 water and antifreeze mix using a small syringe. Slowly connect the line to the isolator while it is held at its highest point to allow any trapped air to escape. If air remains in the system, your gauge readings will be "spongy" or laggy, which can lead to incorrect tuning decisions on your VW''s carburetors.

Pro Tip 2: Strategic Firewall Mounting. For the best results in a VW engine bay, mount the isolator on the engine side of the firewall, as close to the fuel pressure regulator as possible. Use the included bracket to secure it firmly to a flat surface. Avoid mounting it directly to the engine tin, as the high-frequency vibrations of an air-cooled flat-four can cause premature wear on the internal diaphragm. Ensure the fuel-in side is clearly marked and that you use high-quality -4AN braided lines to prevent any potential leaks near the heat of the exhaust.

Pro Tip 3: Matching Your Gauge. Since this isolator is rated up to 80 PSI, it works best when paired with a high-quality mechanical gauge that matches your expected fuel pressure range. If you are running a standard Weber or Dellorto carburetor setup on a Type 1 engine, you only need 3 to 3.5 PSI. In this case, use a 0-15 PSI gauge for maximum resolution. For fuel-injected or high-pressure turbo builds, a 0-100 PSI gauge is more appropriate. Always double-check your fittings with a thread sealant designed for fuel on the inlet side to prevent weeping under pressure.
