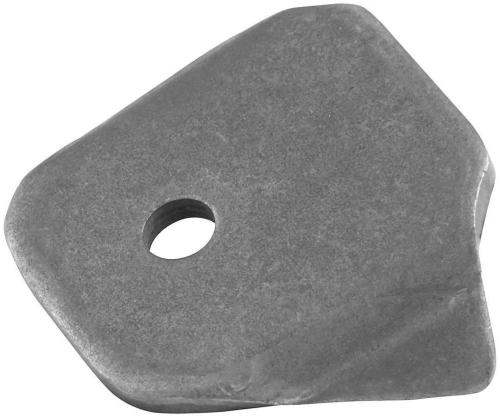

Body Brace Tabs Round Tube 4pk

OVERVIEW

When you are deep into a custom air-cooled build, whether it is a rugged Baja Bug, a high-flying sand rail, or a precision-engineered street car, the difference between a professional finish and a backyard hack job lies in the details of your fabrication. The ALLSTAR PERFORMANCE Body Brace Tabs are engineered specifically for the serious builder who refuses to compromise on structural integrity or aesthetic cleanlines. These mild steel tabs are not your average flat-stock punch-outs; they feature integrated, built-in gussets that provide a massive increase in rigidity and resistance to fatigue compared to standard flat tabs. This added support is crucial when you are mounting body panels, dashboards, or heavy electrical components to a round-tube chassis that is subjected to the constant vibration and chassis flex inherent in high-performance Volkswagen environments.

Installation is streamlined thanks to the precision-contoured base designed to seat perfectly against round tubing. Instead of spending hours at the bench grinder trying to fish-mouth a flat tab to fit your roll cage, these Allstar tabs provide a "weld-ready" solution that ensures a consistent, high-strength bond every time. The four-pack configuration offers enough hardware to secure a significant section of your bodywork or interior bracing, maintaining a uniform look across your entire project. For the air-cooled enthusiast, these tabs represent a significant time-saver that actually improves the safety and longevity of the vehicle. When you are bouncing through the whoops in a Manx-style buggy or pulling high G-loads on the track, you will be glad you chose a tab designed to handle the stress of the real world.

FITMENT

These tabs are universal fabrication components specifically optimized for round-tube applications. They are commonly used in the following air-cooled VW and off-road builds:

• VW Sand Rails: Perfect for mounting body skins, floor pans, and roof panels to 1.25-inch to 1.75-inch OD tubing.
• Baja Bugs: Essential for securing exterior light bars, fender supports, and internal dash structures to roll cages.
• Meyers Manx & Buggy Clones: Ideal for creating secure mounting points for fiberglass bodies to the steel sub-frame or cage.
• Drag Racing Volkswagens: Used for mounting fire bottles, switch panels, and lightweight interior tin-work to NHRA-spec cages.
• Off-Road Race Trucks: Heavy-duty enough for secondary bracing and accessory mounting on Class 5 or Class 11 race cars.
• Custom Tube Chassis: Compatible with any mild steel round tubing used in custom air-cooled chassis fabrication.

SPECS

The ALL60014 Body Brace Tabs are manufactured to exacting standards to ensure consistency across every pack you order. Below are the technical specifications for these fabrication essentials:

• Brand: Allstar Performance
• Part Number: ALL60014
• Material: High-quality mild steel (weldable)
• Quantity: 4 Tabs per package
• Design Feature: Integrated support gusset for maximum shear strength
• Base Profile: Contoured for round tubing applications
• Finish: Natural raw steel (requires painting or plating after welding to prevent corrosion)
• Application: Body bracing, panel mounting, and accessory attachment
• Mounting Style: Weld-on

PRO TIPS

1. Surface Preparation is Paramount

Before you even think about firing up the welder, you must ensure that both the tab and the tubing are perfectly clean. These tabs come in a natural steel finish which may have a light coating of oil or "mill scale" from the manufacturing process. Use a flap disc or a wire wheel to take the mounting area on the tube down to bright, shiny metal. Similarly, clean the base of the tab. Removing these contaminants ensures deep weld penetration and prevents porosity, which is vital for a component meant to provide structural bracing. If you leave the mill scale on, you risk a brittle weld that could snap under the heavy vibration of an air-cooled engine.

2. Manage Your Heat to Protect the Tube

When welding these tabs to your chassis, especially if you are working with thinner wall .095 or .120 chromoly or mild steel tubing, be mindful of your heat soak. Because these tabs have a built-in gusset, they can act as a heat sink, requiring a bit more "juice" to get a good puddle started. However, you don''t want to blow through your main structural tubing. Start your arc on the thicker part of the tab and wash the puddle down onto the tube. Small, controlled tacks at all four corners of the tab base before laying your final beads will prevent the tab from pulling or warping out of alignment as the metal cools.

3. Strategic Gusset Orientation

To get the most out of the integrated gusset, consider the direction of the load before you weld. If you are mounting a heavy dashboard or a component that will experience vertical "bounce," orient the tab so the gusset is positioned to counteract that specific force. The gusset is designed to prevent the tab from bending at the weld joint. If you are mounting body panels that might catch the wind at high speeds, ensure the gussets are facing the direction of the wind resistance. Thinking about the physics of the load path now will prevent "metal fatigue" cracks from forming in your sheet metal or the tabs themselves years down the road.
