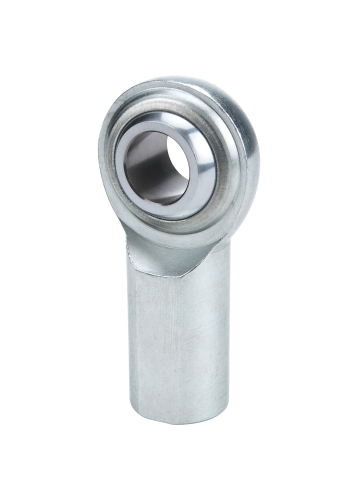

Rod End RH 5/8 Female Steel ALL58040

OVERVIEW

When you are building a custom air-cooled powerhouse, whether it is a high-performance street Beetle or a rugged long-travel Sand Rail, the integrity of your linkage and suspension components is where the rubber meets the road. The Allstar Performance RH 5/8 Female Steel Rod End (ALL58040) is engineered to provide the precise articulation and rock-solid reliability that Volkswagen enthusiasts demand. These heim joints are a staple in the fabrication world, offering a heavy-duty solution for custom steering linkages, shift rods, and suspension stabilizers. Constructed from high-quality steel, this rod end is designed to withstand the vibration and stress inherent in air-cooled VW environments, ensuring that your steering remains tight and your mechanical inputs are translated directly to the chassis without the "slop" associated with worn-out rubber bushings or inferior components.

At Appletree Auto, we know that off-roaders and racers don''t have time for equipment failure in the dunes or on the track. This 5/8-inch right-hand female rod end features a precision-ground ball for smooth operation and a durable housing that resists stretching under load. Because it features a female thread, it is the perfect choice for fabricators using threaded hex bungs or male-threaded rods to create adjustable-length linkages. Whether you are correcting the geometry on a lowered Ghia or building a custom tie-rod set for a heavy-duty Baja Bug, the ALL58040 provides the professional-grade strength required for high-stress applications. Its steel construction offers the perfect balance of tensile strength and longevity, making it an essential component for any serious VW fabrication project where failure is not an option.

FITMENT

While this is a universal fabrication component, it is most commonly utilized in the following air-cooled VW and off-road applications:

• Custom Sand Rails and Dune Buggies: Ideal for custom tie rods and steering linkages.
• Volkswagen Baja Bugs: Used in heavy-duty steering conversions and rear suspension limit straps.
• VW Type 1 Beetle (Custom): Perfect for fabricated shift linkages and custom throttle setups.
• VW Type 2 Bus: Often used in steering drag link upgrades for lifted or modified buses.
• Manx-Style Kit Cars: Excellent for stabilizing custom chassis components.
• Off-Road Racing Frames: A standard for secondary support links and non-critical suspension pivots.

SPECS

• Brand: Allstar Performance
• Part Number: ALL58040
• Thread Size: 5/8 inch - 18
• Thread Direction: Right Hand (RH)
• Gender: Female
• Material: High-Strength Steel
• Ball Material: Hardened Chrome Plated Steel
• Series: Standard Series
• Finish: Plated for corrosion resistance
• Application: Universal Fabrication / Steering / Suspension

PRO TIPS

1. Always Use a Jam Nut for Security

When installing the ALL58040 female rod end onto a threaded rod or bolt, it is absolutely critical to use a high-quality jam nut. The jam nut serves two purposes: it locks the rod end in place to prevent it from spinning and changing your alignment settings during operation, and it adds an extra layer of thread engagement security. Without a jam nut, the constant vibration of an air-cooled engine and rough terrain can cause the threads to "chatter," leading to premature wear or even catastrophic failure of the linkage. Ensure the jam nut is tightened against the rod end body to create a solid, immobile connection.

2. Maximize Articulation with High-Misalignment Spacers

If you are using this rod end in a suspension or steering application where the link needs to move through a wide range of motion, consider pairing it with high-misalignment spacers. While the heim joint itself offers significant articulation, the mounting bolt and the "ears" of your mounting bracket can limit the travel before the body of the rod end binds. High-misalignment spacers narrow the pivot point and allow the ball to rotate further within the housing, preventing binding and potential snapping of the shank during extreme suspension cycling or tight steering maneuvers.

3. Regular Maintenance in Off-Road Conditions

Since these are steel-on-steel standard series rod ends, they require regular inspection and lubrication, especially if you are running your VW in the sand, mud, or dusty environments. Grit and grime can act as an abrasive, wearing down the internal tolerances and causing play in the joint. We recommend cleaning the ball area after every major outing and applying a high-quality dry film lubricant. Avoid heavy greases that can trap sand inside the joint; instead, use a PTFE-based spray that provides lubrication without attracting debris, ensuring your steering stays smooth and responsive for years to come.
