Rear Deck Lid Seal, for All Beetles 50-79

OVERVIEW

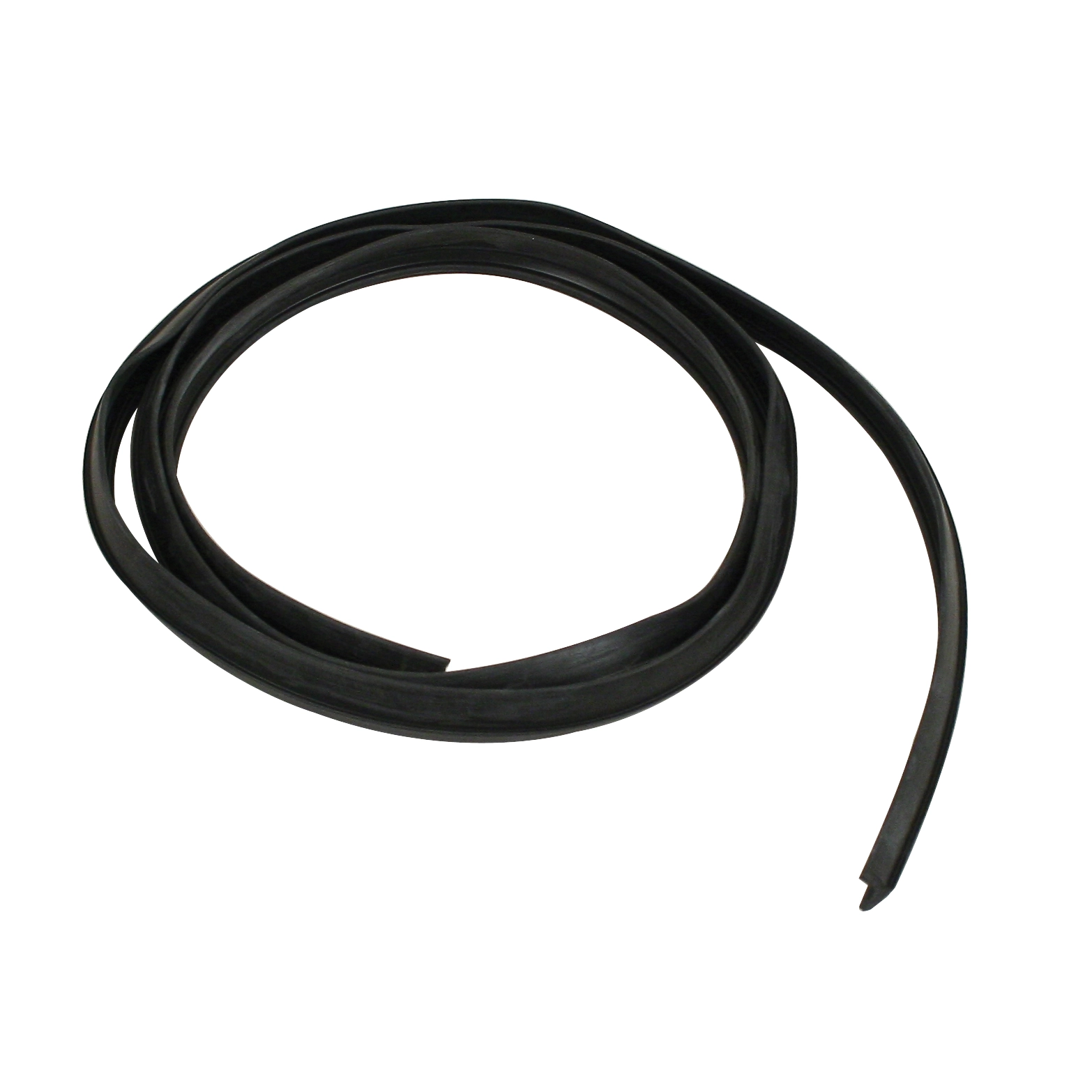

When it comes to preserving the integrity of your air-cooled engine bay, the rear deck lid seal is one of the most critical yet overlooked components in a classic Volkswagen restoration. This EMPI Rear Deck Lid Seal, designed for all Beetles from 1950 through 1979, serves as the primary barrier between the elements and your engine. A degraded or flattened seal allows moisture to seep into the engine compartment, leading to premature rust in the apron and deck lid channels, and can even cause electrical shorts in the coil or distributor wiring during heavy rain. This stock-style replacement is manufactured from high-quality, weather-resistant rubber that provides the perfect compression ratio, ensuring a tight, rattle-free fit every time you latch your engine cover. Whether you are finishing a body-off restoration or simply trying to quiet down the vibration of an old daily driver, this seal is an essential upgrade for any Type 1 enthusiast.

At Appletree Automotive, we understand that "good enough" doesn''t cut it for a vintage VW. That is why we stock this EMPI seal, which features the correct profile to sit perfectly within the factory body channel. Beyond just keeping the rain out, a fresh deck lid seal plays a vital role in the cooling dynamics of the air-cooled engine. While the engine tin seals do the heavy lifting of separating hot and cold air, a properly sealed deck lid ensures that the air being pulled in through the vents is directed efficiently toward the fan shroud rather than escaping through gaps in the bodywork. This seal is engineered to withstand the high heat cycles common to the rear of a Volkswagen while remaining flexible enough to conform to the unique curves of the Beetle''s rear apron. Don''t let a dry-rotted seal compromise your engine''s safety or your car''s aesthetic; swap in this high-durability replacement and enjoy the solid "thud" of a properly sealed VW deck lid.

FITMENT

This rear deck lid seal is designed for a universal fit across the following Volkswagen Type 1 models:

• Volkswagen Beetle (Standard): 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977.
• Volkswagen Super Beetle: 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979.
• Volkswagen Beetle Convertible: 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979.

SPECS

• Part Number: 111-827-705 (EMPI 00-3598-B)
• Material: High-density EPDM extruded rubber.
• Color: Matte Black.
• Profile: OEM-spec hollow-core bulb for maximum compression and sealing.
• Installation Method: Channel-press fit (requires weatherstrip adhesive for permanent bond).
• Resistance: UV, ozone, and engine oil/fuel vapor resistant.
• Total Length: Sized specifically to cover the full perimeter of the Type 1 rear apron channel.

PRO TIPS

1. Clean the Channel Thoroughly

Before you even think about installing the new seal, you must spend time cleaning the metal channel on the body of the car. Use a small flat-head screwdriver wrapped in a rag or a plastic scraping tool to remove all old rubber remnants and crusty adhesive. If there is any surface rust inside the channel, treat it with a rust inhibitor or primer now. A clean, smooth channel ensures the new seal sits flat and prevents "high spots" that could make it difficult to latch the deck lid once the job is finished.

2. Use High-Quality Weatherstrip Adhesive

While some people try to friction-fit these seals, they will eventually pull out or sag due to the heat of the engine. I highly recommend using 3M Super Weatherstrip Adhesive (the black version, not the yellow, for a cleaner look). Apply a thin, even bead to both the seal and the channel, let it get "tacky" for about a minute, and then press the seal into place starting from the top center. This ensures the seal stays put even when the rubber expands and contracts during temperature swings.

3. Adjust Your Latch After Installation

New rubber is significantly thicker and firmer than the 40-year-old seal you are replacing. Once the new seal is installed, you might find that you have to "slam" the deck lid to get it to lock. Don''t force it! Instead, loosen the two bolts on the deck lid latch striker (on the apron) and adjust it slightly outward to accommodate the fresh rubber. Over the next few weeks, the seal will take a "set," and you can gradually readjust the latch for that perfect, flush factory fit.
