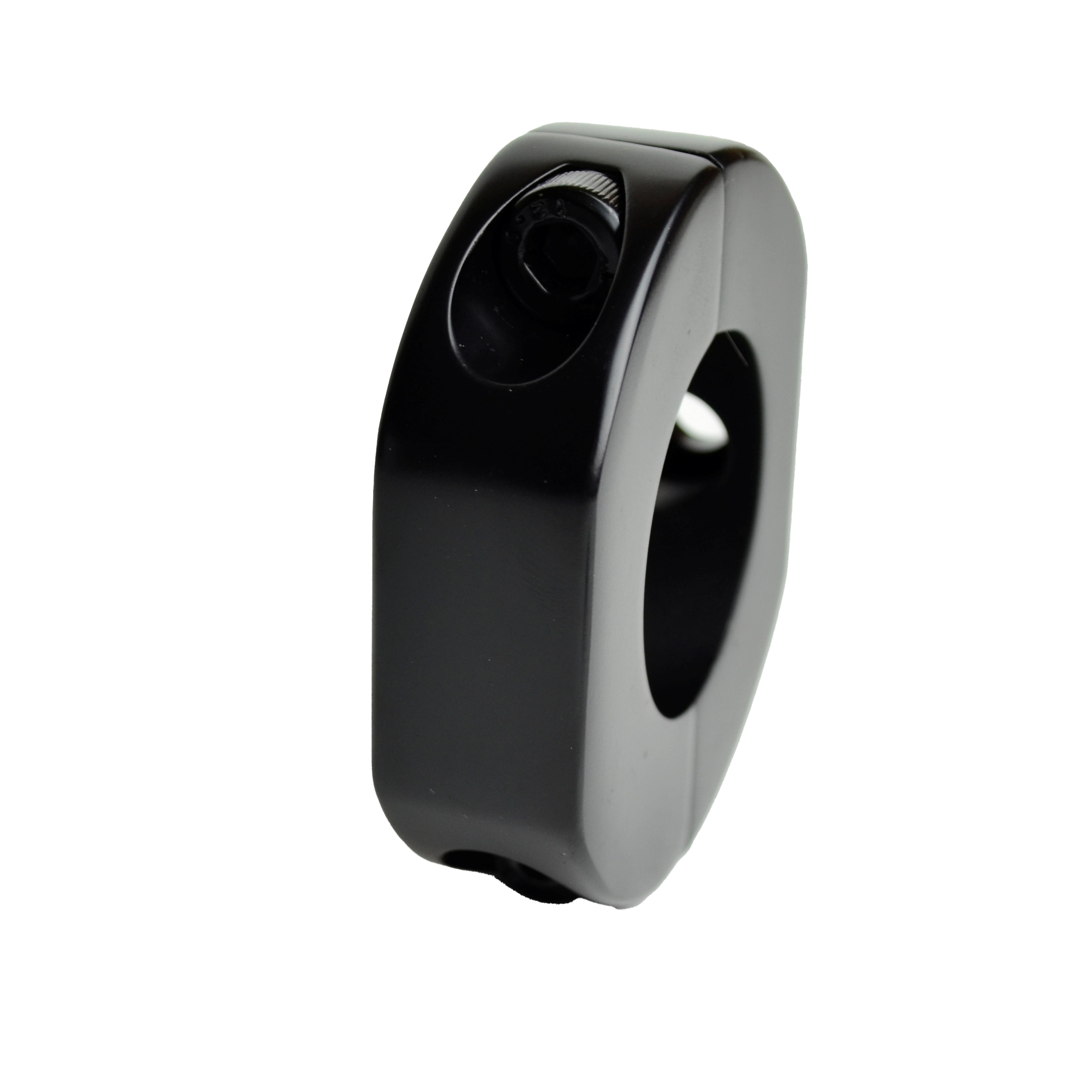

New School Mirror Clamp, for 1-1/2 Tube, Black, Each

OVERVIEW

Elevate your off-road visibility and styling with the Latest Rage New School Mirror Clamp, specifically engineered for 1-1/2 inch tubing. When you''re tearing through the dunes or navigating technical trails in a Baja Bug or sand rail, standard mirror mounts often fail due to excessive vibration and harsh impacts. This precision-machined billet aluminum clamp provides a rock-solid foundation for your "New School" style mirrors, ensuring that your rear-view stays exactly where you set it, regardless of the terrain. The sleek, black anodized finish not only resists corrosion and the abrasive nature of sand and dirt but also provides a modern, aggressive aesthetic that complements any high-end air-cooled build. Don''t settle for flimsy universal brackets that slip and slide; this clamp is designed for the serious enthusiast who demands both form and function in their cockpit setup.

At Appletree Automotive, we understand that the details make the build. This mirror clamp is more than just a mounting point; it is a piece of hardware designed to integrate seamlessly with your roll cage or tube chassis. The "New School" design language features clean lines and a low-profile silhouette that minimizes obstructed views while maximizing clamping force. It utilizes a robust 8mm bolt system to secure the two halves of the clamp around the tubing, providing a 360-degree grip that prevents the mirror from rotating even during high-speed jumps or heavy vibration. Whether you are finishing a ground-up restoration on a Manx-style buggy or upgrading the safety cage on your daily-driver Baja, this clamp offers the professional-grade reliability and "cool factor" that the air-cooled VW community has trusted for decades.

FITMENT

This mirror clamp is designed for universal application on any vehicle equipped with 1-1/2 inch (1.5") outer diameter (OD) tubing. Common applications include:

• Sand Rails and Dune Buggies: Perfect for Berrien, Chenowth, and custom tube chassis rails.
• Volkswagen Baja Bugs: Ideal for mounting to internal or external 1.5-inch roll cages and light bars.
• Meyers Manx & Clones: Fits perfectly on 1.5-inch windshield frame supports or roll bars.
• Off-Road Race Cars: Suitable for any Class 5, Class 11, or sportsman-level cage utilizing 1.5-inch DOM or 4130 chromoly tubing.
• UTVs and Side-by-Sides: Fits many factory and aftermarket ROPS (Roll Over Protective Structures) that use 1.5-inch tubing.

TECHNICAL SPECIFICATIONS

• Tube Diameter Compatibility: 1-1/2 Inches (1.5" / 38.1mm).
• Material: High-Grade Billet Aluminum.
• Finish: Premium Black Anodized.
• Clamp Width: .851 Inches.

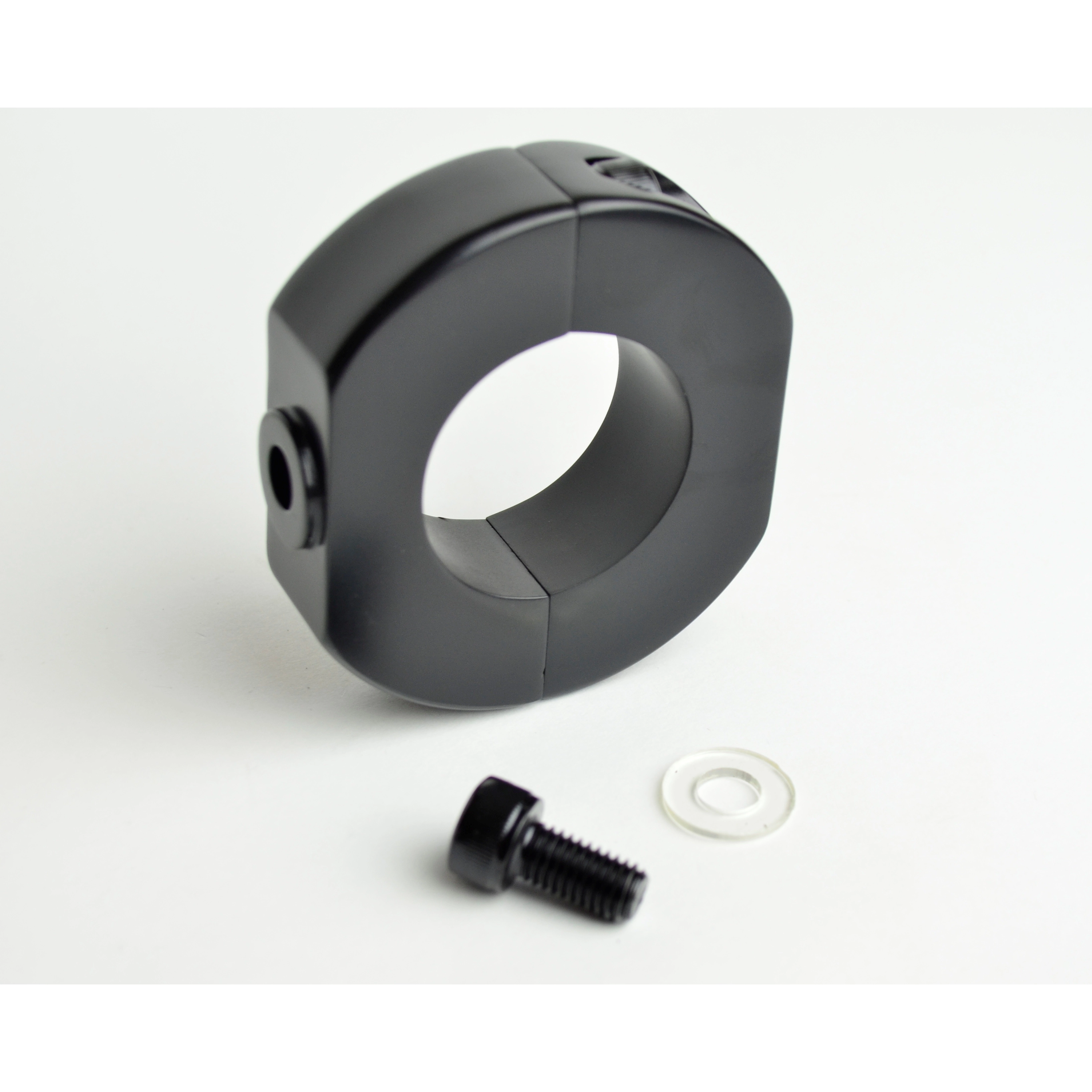

• Mounting Hardware: Includes 8mm Socket Head Cap Screw for secure fastening.

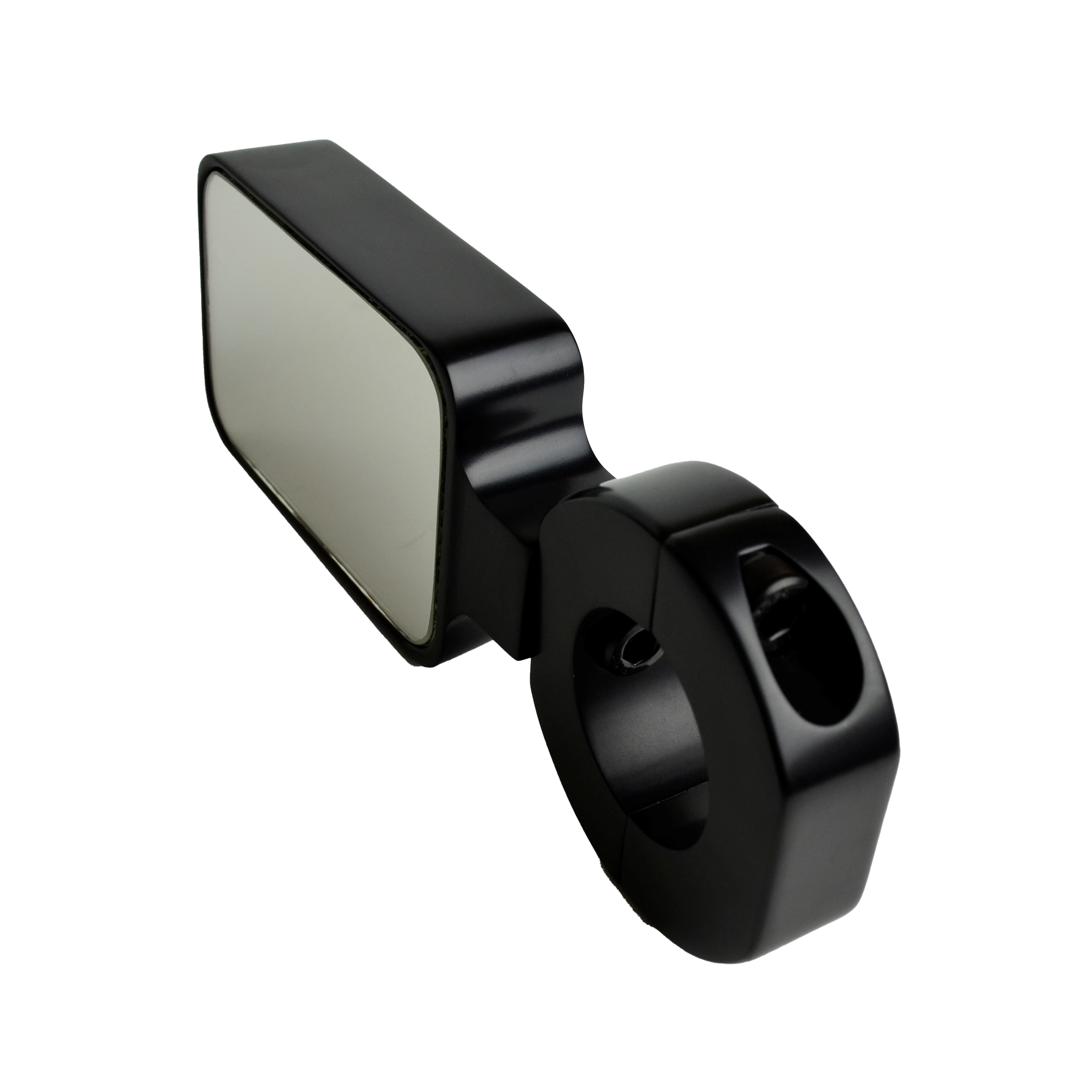

• Mirror Compatibility: Designed specifically for "New School" style billet mirrors with matching mounting stems.
• Quantity: Sold Individually (Each).
• Weight: Approximately 0.45 lbs.

PRO TIPS FROM APPLETREE AUTO

1. Prevent Surface Marring and Enhance Grip

While these billet clamps are designed for a precision fit, roll cage tubing can sometimes have slight variances in diameter due to powder coating or paint thickness. To prevent the clamp from scratching your beautiful finish and to provide an extra layer of vibration dampening, we recommend applying a single wrap of thin electrical tape or a small strip of heat-shrink tubing to the roll bar before snapping the clamp into place. This creates a "gasket" effect that significantly increases the friction between the aluminum and the steel, ensuring the mirror remains immovable even in the roughest "whoops" sections of the trail. It also makes it much easier to adjust the positioning later without leaving permanent bite marks on your cage.

2. Hardware Security and Maintenance

Off-road environments are notorious for "fastener creep," where constant vibration causes bolts to back out over time. When installing your New School Mirror Clamp, always apply a small drop of blue (medium-strength) thread-locking compound to the 8mm mounting bolt. This ensures the clamp stays tight during your weekend adventure but still allows for removal with hand tools if you ever need to relocate the mirror. Additionally, because the clamp is made of aluminum and the bolt is steel, it is a good practice to apply a tiny amount of anti-seize or oil to the threads if you live in a coastal area to prevent galvanic corrosion, ensuring the hardware remains serviceable for years to come.

3. Perfecting the Line of Sight

Before you torque the 8mm bolt to its final specification, sit in the driver''s seat and have a friend move the clamp along the tube. In a Volkswagen Beetle or Buggy, your seat height and the angle of the roll bar can create blind spots that aren''t immediately obvious. We suggest mounting the mirror slightly higher than eye level to maintain a clear forward field of vision while still being able to quickly glance at your rear-view. Once you find the "sweet spot," tighten the clamp just enough to hold its weight, then double-check the view with your helmet on (if applicable), as helmets can change your peripheral vision and neck mobility. Only after you are 100% satisfied with the visibility should you perform the final tightening of the billet clamp.
