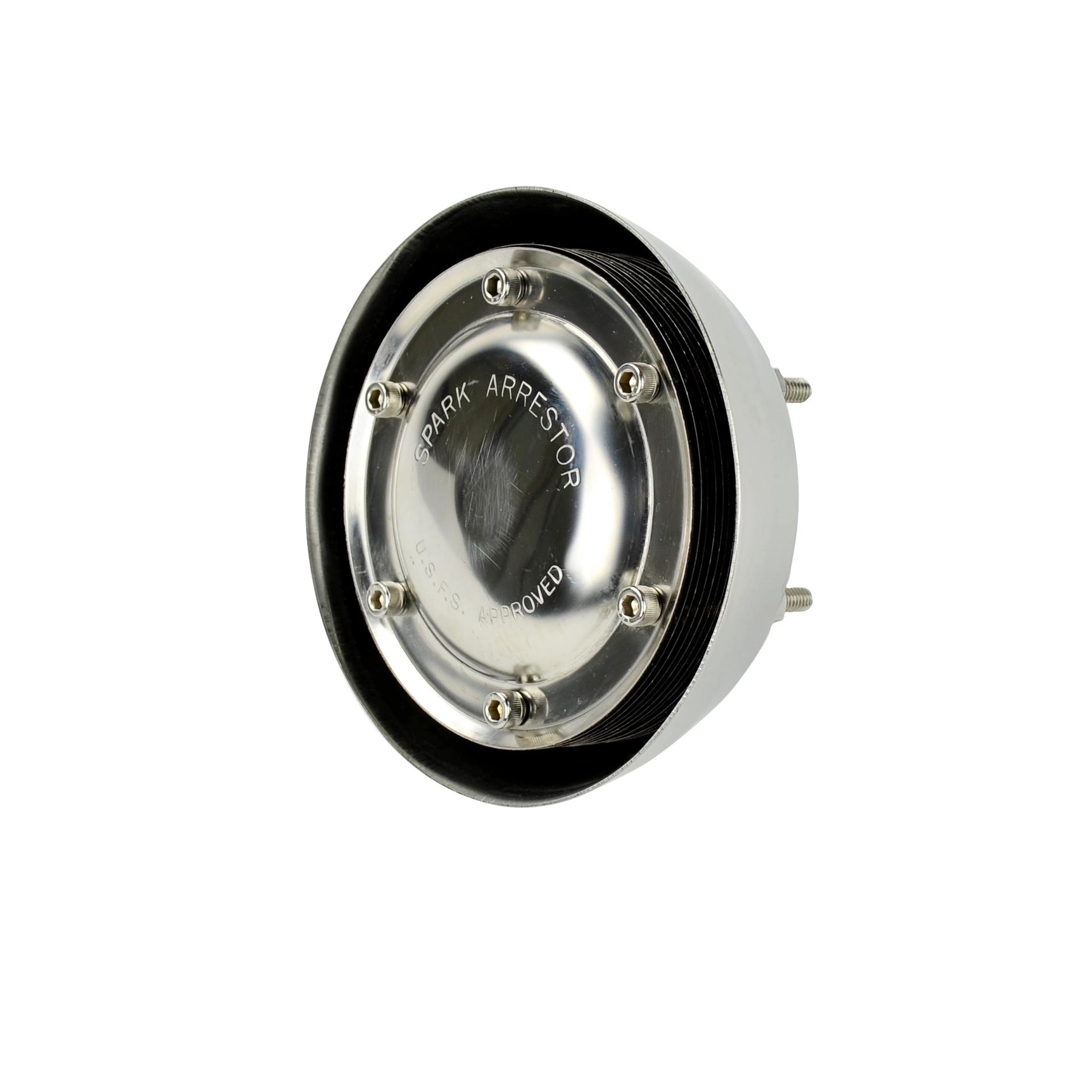

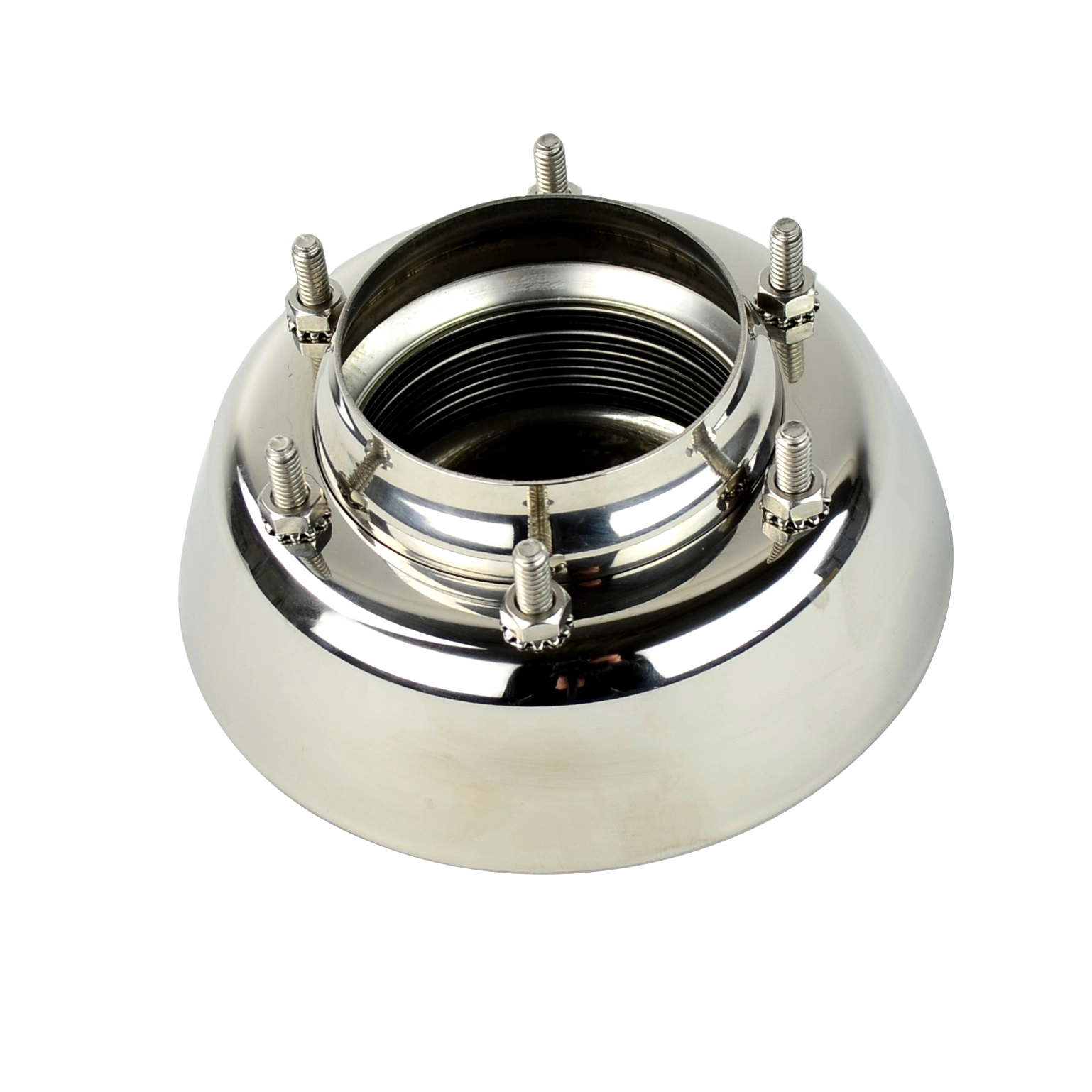

Spark Arrestor, 3 Inch Weld On, 5 Inch Discs, Stainless

OVERVIEW

When you are tearing through the dunes or navigating tight forest trails in your high-performance air-cooled machine, the last thing you want to worry about is a stray spark starting a fire or getting turned away at the OHV park entrance because you are not street-legal or trail-compliant. The Latest Rage Stainless Steel 3-Inch Weld-On Spark Arrestor is the ultimate solution for the serious off-roader who demands both safety and performance. Crafted from premium-grade stainless steel, this spark arrestor is designed to withstand the extreme exhaust temperatures generated by high-displacement Volkswagen engines while offering a sleek, professional finish that won''t rust or degrade in harsh environments. By utilizing a 3-inch weld-on inlet, it provides a secure, permanent attachment to your custom header or exhaust tip, ensuring that your spark suppression system stays exactly where it belongs, even during the most violent landings or high-vibration runs.

What sets this particular unit apart from the competition is its incredible tunability and the massive 5-inch disc diameter. The system utilizes a stackable disc design that allows the driver to fine-tune the backpressure and sound output of their engine with precision. By adding or removing the included stainless steel discs, you can effectively change the flow characteristics of your exhaust system to match your engine''s specific needs. Whether you are running a mild 1600cc build or a fire-breathing 2332cc stroker, this spark arrestor provides the necessary flow to prevent power loss while maintaining a USFS-style spark suppression profile. The 5-inch disc size offers a significantly larger surface area for exhaust gases to escape compared to smaller units, which means less restriction and more horsepower delivered to the wheels. This is not just a safety device; it is a performance-tuning tool that ensures your VW-powered buggy, rail, or Baja remains compliant without sacrificing the "braap" we all love.

FITMENT

This is a universal "Weld-On" performance component designed for 3-inch Outer Diameter (O.D.) exhaust tubing. While it can be adapted to any vehicle with a 3-inch exhaust, it is most commonly utilized on the following air-cooled Volkswagen applications:

• VW Beetle (All Years): Custom Baja Bug headers with 3-inch collectors.
• VW Karmann Ghia: High-performance competition exhaust systems.
• VW Bus (Type 2): Custom off-road camper or utility builds with large-bore tubing.
• VW Thing (Type 181): Off-road oriented exhaust setups.
• Sand Rails & Dune Buggies: Ideal for any custom chassis utilizing a VW drivetrain.
• Meyers Manx & Fiberglass Buggies: Perfect for high-mounted "stinger" style or custom headers.
• Custom Projects: Any vehicle utilizing a 3-inch O.D. exhaust pipe requiring spark suppression.

SPECS

• Inlet Diameter: 3.00 Inches (Inner Diameter for slip-over or Outer Diameter for butt-weld).
• Disc Diameter: 5.00 Inches for maximum flow capacity.
• Material: High-Grade Stainless Steel for superior corrosion resistance.
• Attachment Style: Weld-on (Requires professional welding for installation).
• Disc Count: Includes 5 adjustable stainless steel discs.
• Tunability: Fully adjustable by adding or removing discs to control backpressure.
• Finish: Polished Stainless Steel.
• Hardware: Includes stainless steel bolts and nuts for disc retention.

PRO TIPS

1. Master the Art of Exhaust Tuning

Don''t just slap all five discs on and call it a day without testing. The beauty of this Latest Rage unit is the ability to tune your engine''s power band. If you feel a "flat spot" in your mid-range acceleration, try adding two additional discs (sold separately) to increase flow. Conversely, if you find that your engine is lacking low-end torque or is simply too loud for the local trails, removing a disc can increase backpressure and help scavenge exhaust gases more effectively at lower RPMs. Always check your spark plug color after making disc adjustments to ensure your air-fuel mixture remains in the "sweet spot," as changes in exhaust flow can slightly lean out or richen your tune.

2. Use Anti-Seize for Long-Term Maintenance

Because this unit is made of stainless steel and will be subjected to thousands of heat cycles, the hardware holding the discs in place can occasionally "gall" or seize over time. To ensure you can always adjust your discs or clean the internals, we highly recommend applying a small amount of high-temperature nickel or copper anti-seize to the threads of the retention bolts. This simple step during the initial assembly will save you the massive headache of snapped bolts or stripped threads years down the road when you need to perform a USFS-required spark arrestor inspection or cleaning.

3. Proper Welding Technique is Critical

Since this is a stainless steel weld-on component, you must use the correct welding process to ensure a crack-free joint. We strongly suggest using a TIG welder with 308L or 309L stainless steel filler rod for the cleanest and strongest bond. If you are using a MIG welder, ensure you are using stainless steel wire and the appropriate "Tri-Mix" gas (Helium/Argon/CO2). Welding stainless to mild steel headers is possible but requires 309L filler to prevent the weld from becoming brittle. Always clean the mating surfaces thoroughly with a dedicated stainless steel wire brush to prevent carbon contamination, which can lead to premature rusting at the weld site.
