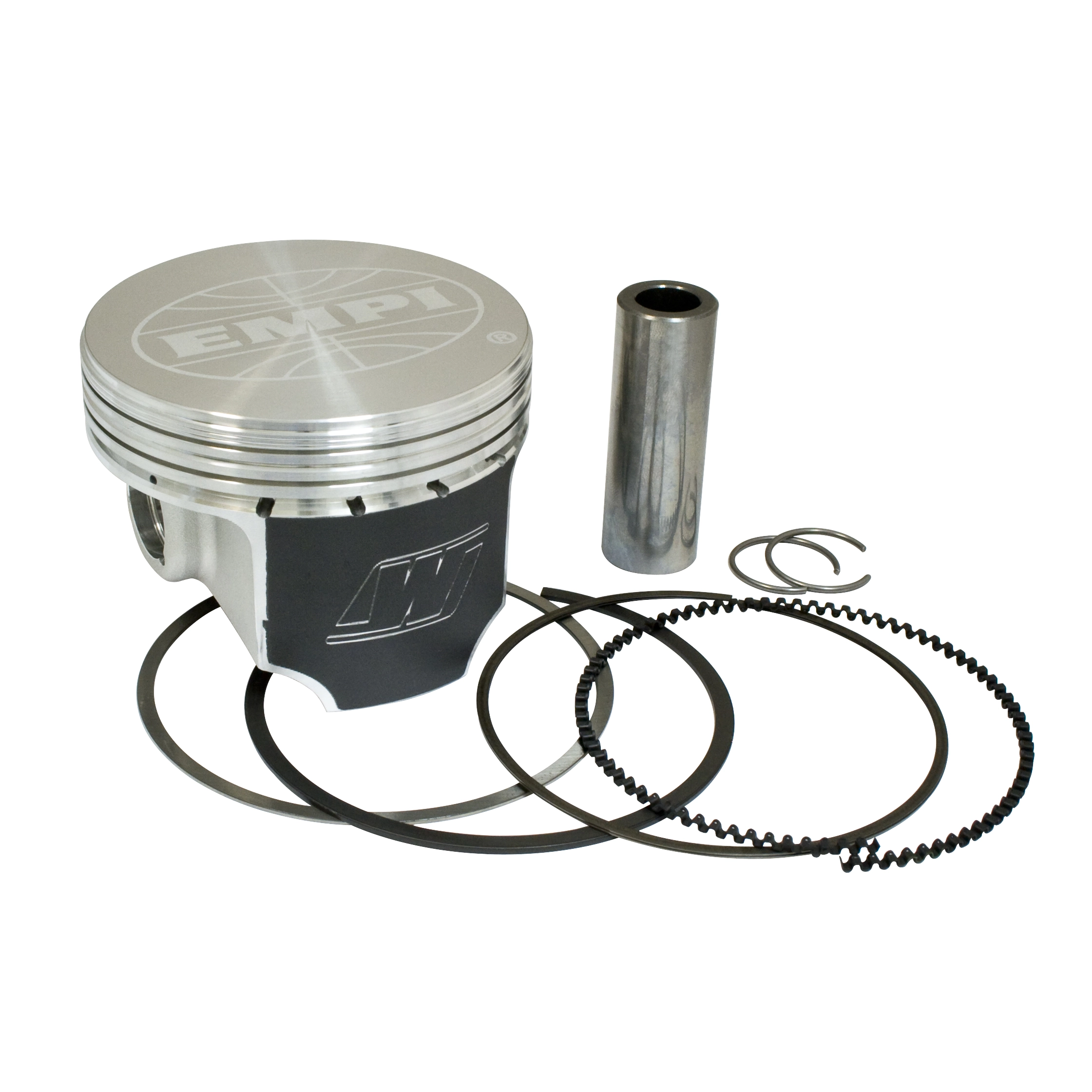

WISECO 94mm Type 1 Flat Top Pistons & Rings

OVERVIEW

When you''re building a high-performance air-cooled engine, you don''t just want parts; you want insurance against the extreme thermal stresses that come with increased horsepower. These Wiseco 94mm Type 1 Flat Top Pistons represent the pinnacle of forged technology, specifically engineered for the VW enthusiast who refuses to compromise on strength or precision. Unlike cast pistons that can succumb to "ring land" failure under high heat or detonation, Wiseco''s forged 2618 high-strength aluminum alloy provides a much higher fatigue life and superior structural integrity. This kit is designed to handle the rigors of high-compression street builds, off-road racing, and even moderate boost applications where a standard piston would simply fail. By utilizing a dedicated forging process, Wiseco ensures a grain flow that follows the contour of the piston, resulting in a part that is both lighter and significantly tougher than anything coming off a standard production line.

The engineering behind these 94mm pistons goes far beyond just material choice. Each piston is CNC-machined to exacting tolerances, featuring optimized skirt profiles that reduce friction while maintaining a stable oil film against the cylinder wall. The flat-top design is a favorite among master engine builders for its versatility in fine-tuning compression ratios, allowing for a clean flame front and efficient combustion within the chamber. Included in this professional-grade kit are the high-quality piston rings, wrist pins, and circlips, ensuring that your reciprocating assembly is balanced and ready for high-RPM operation. Please note that while these are the ultimate 94mm pistons for your Type 1 build, barrels are not included, allowing you the flexibility to pair them with your preferred choice of high-quality 94mm cylinders. If you are looking to maximize the displacement and reliability of your Volkswagen engine, this Wiseco set is the gold standard for your next performance overhaul.

FITMENT

These pistons are designed for use with 94mm bore cylinders in Volkswagen Type 1 based engines. Proper machining of the engine case and cylinder heads is required for 94mm fitment. This kit is compatible with the following models using a Type 1 upright engine configuration:

• Volkswagen Beetle: 1950 through 1979 (Sedan and Convertible)
• Volkswagen Super Beetle: 1971 through 1979
• Volkswagen Karmann Ghia: 1956 through 1974
• Volkswagen Bus / Transporter: 1950 through 1971 (Up to 1600cc based engines)
• Volkswagen Thing (Type 181): 1973 through 1974
• Volkswagen Squareback, Fastback, Notchback (Type 3): 1961 through 1973
• Custom Applications: Dune Buggies, Sand Rails, and Trikes utilizing VW Type 1 engine cases.

SPECS

• Bore Size: 94mm
• Piston Material: Forged 2618 High-Strength Aluminum Alloy
• Piston Crown: Flat Top design for optimized combustion
• Stroke Compatibility: Designed for standard 69mm stroke (can be used in stroker applications with proper rod length and deck height adjustments)
• Wrist Pin Diameter: 22mm (Standard VW Type 1)
• Wrist Pin Material: Case-hardened steel
• Ring Set: High-performance ring set included for superior sealing
• Locking Style: High-quality circlips included
• Quantity: Sold as a set of 4 pistons with rings and pins
• Weight: Optimized for reduced reciprocating mass compared to cast alternatives

PRO TIPS

1. Precision Ring Gapping is Non-Negotiable

When installing these Wiseco forged pistons, you must manually gap the piston rings for your specific application. Air-cooled engines run significantly hotter than water-cooled engines, which causes more thermal expansion of the rings. If the ring gap is too tight, the ends will butt together as the engine reaches operating temperature, leading to catastrophic cylinder wall damage or broken ring lands. Always follow the Wiseco formula provided in the box, typically multiplying the bore size by a specific factor based on whether the engine is for street, racing, or forced induction use. Don''t assume they are "drop-in" ready; check every single ring in the cylinder it will be living in.

2. Verify Your Deck Height and Compression Ratio

Since these are flat-top pistons, your compression ratio will be determined largely by your cylinder head chamber volume and your deck height (the distance from the top of the piston to the top of the cylinder at Top Dead Center). For a high-performance street engine, we typically recommend a deck height of .040 to .060 inches. If your deck height is too tight, you risk the piston hitting the head at high RPM due to rod stretch. If it is too loose, you lose the "squish" effect, which can lead to poor combustion and detonation. Use copper head shims or cylinder base shims to dial in the perfect clearance for your specific build.

3. Cleanliness and Proper Lubrication During Assembly

Forged pistons are shipped with a protective coating to prevent corrosion, which must be thoroughly cleaned off with a lint-free cloth and solvent before installation. Once clean, pay close attention to the wrist pin fitment. The pins should slide through the piston and the connecting rod small-end bushing with a light coat of assembly lube; they should never be forced. When installing the circlips, ensure the gap of the clip is facing either straight up or straight down (12 o''clock or 6 o''clock position). This prevents centrifugal force at high RPM from compressing the clip and allowing it to pop out, which would cause immediate and total engine failure.
