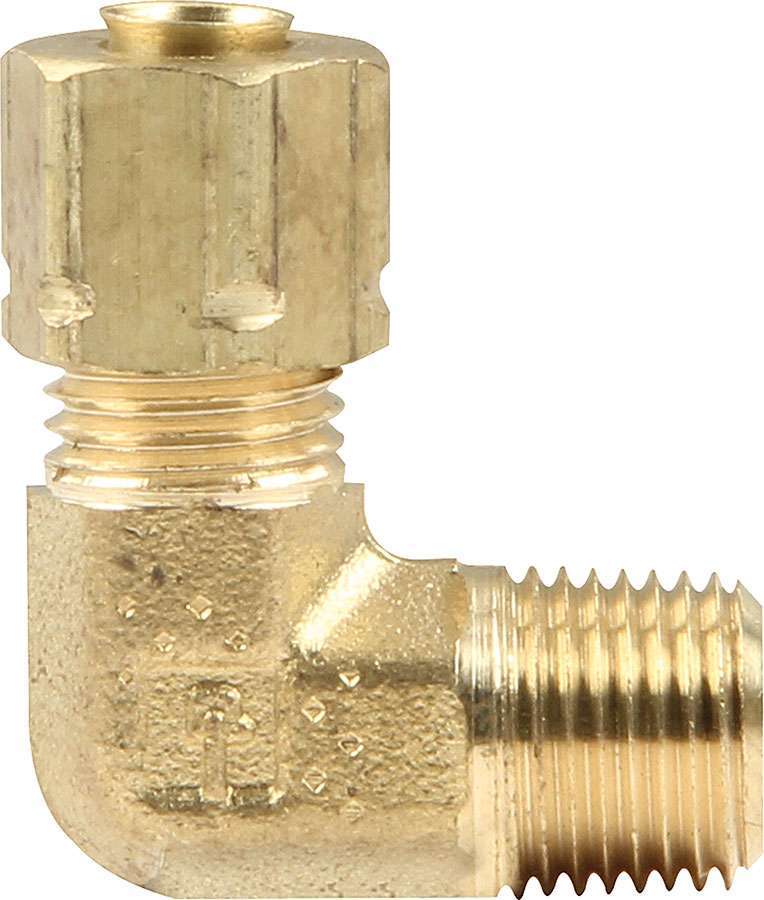

Fitting 1/8in NPT 90 Degree ALL48033

OVERVIEW

When you''re deep into a custom air-cooled build, space is the ultimate luxury that you rarely have. The ALLSTAR PERFORMANCE 1/8-inch NPT 90-Degree Fitting (ALL48033) is the professional solution for tight plumbing scenarios where a straight fitting simply won''t clear the chassis, tinware, or engine components. Engineered with precision tolerances, this 90-degree elbow allows you to route your 3/16-inch nylon lines with clinical accuracy, ensuring that your fluid transfer remains consistent without the risk of kinking or stress-induced leaks. Whether you are plumbing a mechanical pressure gauge into your Type 1 engine block or setting up a complex braking system on a dedicated sand rail, this fitting provides the secure, leak-free connection that Appletree Auto customers demand for their high-performance machines.

The durability of the ALL48033 is unmatched in the racing and off-road world, featuring a robust construction designed to withstand the high-vibration environment of a Volkswagen''s boxer engine. This fitting is specifically designed for use with 3/16-inch nylon tubing, making it a staple for off-road racers and dune buggy enthusiasts who prefer the lightweight and flexible nature of nylon lines over traditional heavy steel hardlines. The 1/8-inch NPT male thread is the industry standard for most oil pressure relief holes, gauge ports, and aftermarket brake components, ensuring broad compatibility across your entire project. By utilizing a 90-degree bend, you significantly reduce the footprint of your plumbing, allowing for a cleaner aesthetic and better protection against moving parts like throttle linkages or cooling fans.

FITMENT

While this is a universal performance fitting, it is most commonly utilized in custom applications for the following air-cooled Volkswagen models and derivatives:

• VW Beetle (Type 1): 1946-1979 (Custom oil/brake plumbing)
• VW Karmann Ghia: 1956-1974
• VW Bus / Transporter (Type 2): 1950-1979 (Bay Window and Split Window)
• VW Type 3 (Squareback, Fastback, Notchback): 1961-1973
• VW Thing (Type 181): 1973-1975
• Meyer''s Manx & Custom Dune Buggies: All Years
• Sand Rails & Edge Chassis: All Years
• VW-Based Trikes: All Years

SPECS

Technical specifications for the ALL48033 90-degree fitting include:

• Brand: Allstar Performance
• Part Number: ALL48033
• Material: High-strength Brass for superior corrosion resistance
• Thread Size: 1/8-inch NPT (National Pipe Thread)
• Fitting Angle: 90 Degree Elbow
• Compatible Tubing Size: 3/16-inch O.D. Nylon Line
• Connection Type: Male NPT to Compression-style Nylon Line Seat
• Weight: 0.05 lbs (Ultra-lightweight for racing applications)
• Hex Size: Standard wrench flats for easy installation

PRO TIPS

1. ACHIEVING A PERFECT SEAL ON NPT THREADS

When installing the 1/8-inch NPT side of this fitting into your engine case or gauge block, remember that NPT threads are tapered and rely on thread interference to seal. Always use a high-quality PTFE (Teflon) tape or a dedicated liquid thread sealant. However, do not over-apply; leave the first two threads bare to prevent any sealant from entering the fluid stream, which could clog a gauge or a small orifice. Tighten until snug, then rotate just enough to achieve the desired 90-degree orientation. Avoid over-torquing, as brass can shear if excessive force is applied to a tapered thread.

2. CUTTING NYLON LINE FOR MAXIMUM GRIP

To ensure the compression side of the ALL48033 grips the 3/16-inch nylon line correctly, the cut on the tubing must be perfectly square and burr-free. Never use side cutters or pliers to cut nylon line, as this will crush the tube and lead to an oval shape that won''t seal. Instead, use a dedicated hose cutter or a very sharp razor blade. A clean, 90-degree cut ensures the line seats fully into the fitting, allowing the internal ferrule to compress evenly around the circumference of the tube, preventing blow-outs under pressure.

3. HEAT MANAGEMENT IN THE VW ENGINE BAY

Air-cooled VW engines run significantly hotter than their water-cooled counterparts, especially around the cylinder heads and exhaust headers. If you are using this fitting to plumb an oil pressure gauge near the stock oil pressure switch location, ensure your nylon line is routed well away from the exhaust system. Even though the ALL48033 fitting can handle high temperatures, nylon tubing has a lower melting point. We recommend using fire-sleeve or heat-reflective loom for any nylon lines that must pass near the heat risers or cylinder tins to ensure long-term system integrity.
