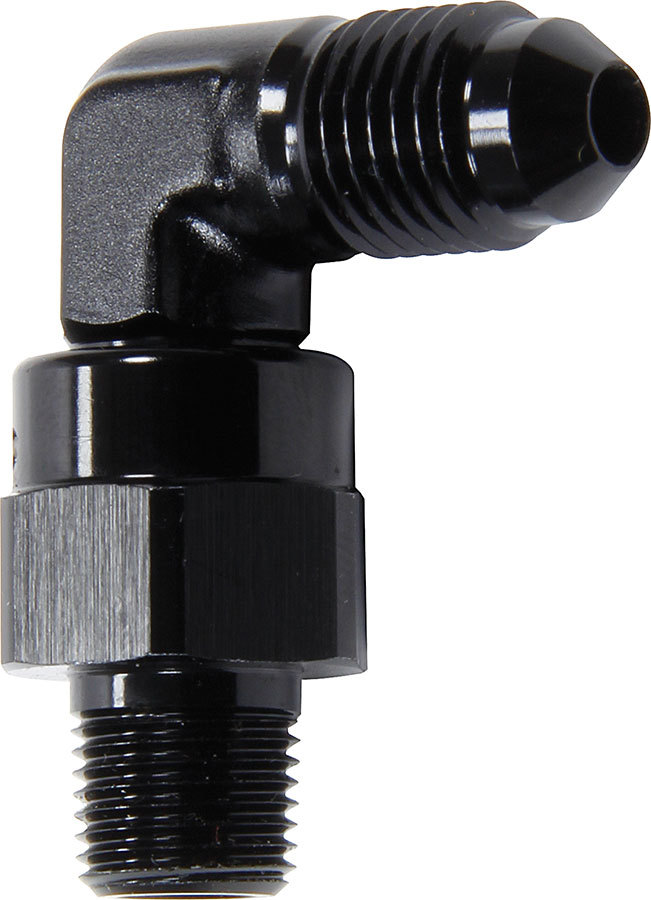

90 Degree Swivel -4 to 1/8 NPT ALL50109

OVERVIEW

When you''re deep into a custom air-cooled Volkswagen build or assembling a high-performance sand rail, the difference between a clean installation and a plumbing nightmare often comes down to the quality of your fittings. The Allstar Performance 90 Degree Swivel -4 AN to 1/8 NPT adapter (ALL50109) is a precision-engineered solution designed to solve tight clearance issues while maintaining maximum fluid flow. Unlike standard fixed adapters, this swivel design allows you to thread the NPT side into your componentbe it a brake master cylinder, an oil pressure port, or a fuel blockand then rotate the 90-degree bend to the exact orientation required for your -4 AN line. This eliminates the common struggle of having a fitting point in the wrong direction once it is fully torqued, ensuring your braided lines follow the most efficient and aesthetically pleasing path through your chassis.

At Appletree Automotive, we understand that VW enthusiasts demand parts that can withstand the vibration of a high-revving flat-four and the harsh environments of off-road racing. This adapter is manufactured from high-grade aluminum and finished with a sleek black anodized coating, providing superior corrosion resistance and a professional look that complements any engine bay or undercarriage. The -4 AN male flare provides a reliable, leak-free mechanical seal for your high-pressure hoses, while the 1/8 inch NPT male end is the industry standard for many aftermarket VW brake components and gauge senders. Whether you are plumbing a custom disc brake conversion on a vintage Beetle or setting up a turbo oil feed line on a weekend warrior, this swivel adapter provides the versatility and durability required for professional-grade results.

FITMENT

While this is a universal high-performance fitting, it is most commonly utilized in the following air-cooled VW and off-road applications:

• Volkswagen Type 1 Beetle: 1950 through 1979 (Custom brake and oiling systems).
• Volkswagen Type 2 Bus/Transporter: 1950 through 1979 (Ideal for remote oil cooler setups).
• Volkswagen Type 3 (Fastback, Squareback, Notchback): 1961 through 1973.
• Volkswagen Karmann Ghia: 1955 through 1974.
• Dune Buggies & Sand Rails: All years and models using custom -4 AN plumbing for brakes or clutch slave cylinders.
• Meyers Manx & Replica Fiberglass Buggies: Perfect for tight-clearance master cylinder exits.
• VW-Based Trikes: Used for custom hydraulic line routing.

TECHNICAL SPECIFICATIONS

• Brand: Allstar Performance
• Part Number: ALL50109
• Fitting Angle: 90 Degree
• Side A: -4 AN Male Flare
• Side B: 1/8 Inch NPT (National Pipe Thread) Male
• Adjustment Type: Full 360-Degree Swivel (Prior to final AN hose attachment)
• Material: Lightweight 6061-T6 Aluminum
• Finish: Black Anodized for heat and corrosion protection
• Application: Suitable for Brake Fluid, Oil, Fuel, and Air systems
• Quantity: Sold Individually

PRO TIPS FROM THE SHOP

Tip 1: Master the NPT Seal

When installing the 1/8 inch NPT side of this adapter into your VW component, remember that NPT threads are tapered and rely on thread deformation to seal. Always use a high-quality PTFE (Teflon) paste or a minimal amount of Teflon tape, starting two threads back from the end to prevent debris from entering your fluid system. Do NOT use sealant on the -4 AN flare side; the AN side is a mechanical seal that must remain clean and dry to seat properly against the female hose end. Over-tightening the NPT side can crack aluminum housings, so tighten until snug and then use the swivel feature to achieve your final angle.

Tip 2: Utilizing the Swivel for Stress-Free Routing

The "Swivel" designation on this Allstar fitting is a life-saver for tight VW engine compartments. To get the best result, thread the NPT side into your port first. Once it is tight and sealed, you can rotate the 90-degree body to point exactly where your -4 AN line needs to go. This prevents "pre-loading" or twisting the braided hose, which is a leading cause of premature hose failure and leaks. Always mock up your hose length with the swivel positioned in its final resting place to ensure you have enough slack for engine torque or suspension travel.

Tip 3: Check Your Clearances on Disc Brake Conversions

If you are using this fitting on a front disc brake conversion for a King and Linkpin or Ball Joint beam, ensure that the 90-degree bend does not interfere with the travel of the trailing arms or the tires at full lock. Because this fitting sticks out further than a standard block adapter, it is vital to cycle your steering from left to right and check that the -4 AN hose has a smooth radius. Use a zip-tie or a cushioned P-clamp to secure the line to the spindle or beam, ensuring the swivel fitting isn''t being used as a structural point to hold the weight of the hose.
