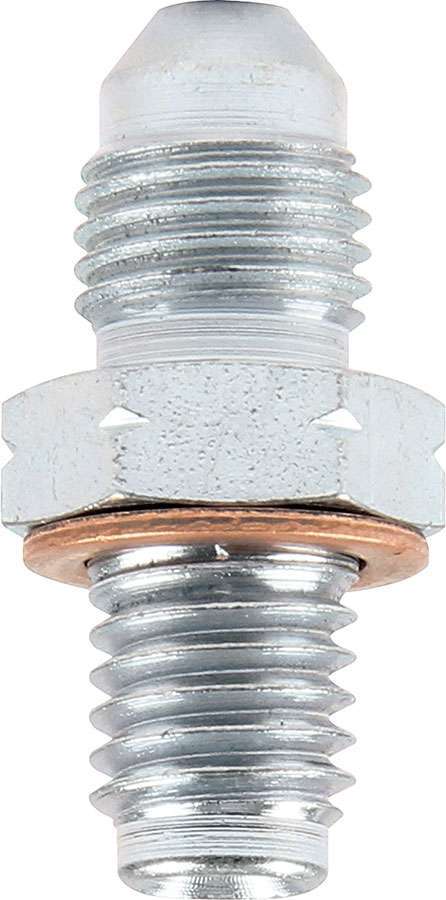

Adapter Fittings -4 to 10mm-1.5 2pk ALL50036

OVERVIEW

When you are building a high-performance air-cooled Volkswagen or a rugged off-road sand rail, the integrity of your braking system is the single most important factor for safety and control. These Allstar Performance Adapter Fittings are engineered specifically to bridge the gap between modern, high-pressure -4 AN braided stainless steel lines and components utilizing a 10mm-1.5 metric thread pitch. In the world of custom VW builds, you often encounter a mix of components, from late-model disc brake conversions to specialized master cylinders. These adapters provide a seamless, leak-free transition that ensures your hydraulic pressure remains consistent, whether you are staging at the drag strip or navigating steep dunes. Precision-machined to exacting tolerances, these fittings eliminate the guesswork and "frankenstein" plumbing solutions that often lead to catastrophic failures under high-pedal pressure.

Constructed from high-strength steel with a durable finish, these adapters are designed to withstand the harsh environments that VW enthusiasts thrive in. Unlike cheap aluminum alternatives that can easily strip or gall when mated to steel master cylinders, these steel fittings offer the structural rigidity required for a "set it and forget it" installation. The -4 AN side features the standard 37-degree flare angle, providing a superior mechanical seal compared to traditional inverted flares. This is particularly crucial for owners of Dune Buggies and Baja Bugs who frequently subject their chassis to extreme vibrations and chassis flex. By utilizing a 2-pack configuration, Allstar Performance ensures you have the necessary matching components for both sides of an axle or a dual-circuit master cylinder setup, maintaining professional aesthetic and mechanical consistency throughout your entire braking system.

FITMENT

These adapter fittings are designed for custom plumbing applications and are commonly used in the following Volkswagen and off-road vehicles when converting to -4 AN braided lines:

• VW Type 1 Beetle: All years (Custom disc brake or master cylinder conversions)
• VW Type 2 Bus / Transporter: (Custom brake booster or caliper upgrades)
• VW Type 3 (Squareback, Fastback, Notchback): (Custom hydraulic system routing)
• VW Karmann Ghia: (Performance brake upgrades)
• Dune Buggies & Sand Rails: (All models using -4 AN plumbing for brake or clutch systems)
• Baja Bugs: (Ideal for long-travel suspension setups requiring flexible braided lines)
• Note: Specifically fits components with 10mm x 1.5 "Extra Coarse" metric threads. Always verify your thread pitch before installation.

SPECS

Detailed technical specifications for the ALL50036 adapter fittings:

• Brand: Allstar Performance
• Part Number: ALL50036
• Quantity: 2 Fittings per package
• Fitting Side A: -4 AN Male (37-degree flare)
• Fitting Side B: 10mm x 1.5 Metric Male
• Material: High-strength Steel
• Finish: Zinc Plated for corrosion resistance
• Hex Size: Standard wrench flats for easy installation
• Application: Hydraulic Brake Systems, Clutch Lines, and Pressure Systems

PRO TIPS

1. Verify Your Metric Thread Pitch Carefully

In the air-cooled VW world, the most common brake line thread is 10mm x 1.0 (fine thread). However, many aftermarket calipers, specialized master cylinders, and industrial hydraulic components used in custom sand rails utilize the 10mm x 1.5 (extra coarse) pitch. Before you begin your installation, it is vital to hand-thread the adapter into your component. If you feel any resistance within the first two turns, stop immediately. Forcing a 1.5 pitch fitting into a 1.0 pitch hole will ruin the threads on your expensive master cylinder or caliper. Always use a thread pitch gauge if you are unsure, as it''s the only way to be 100% certain of your hardware requirements.

2. The Secret to a Leak-Free AN Seal

One of the biggest mistakes builders make is over-tightening AN fittings. The -4 AN side of this adapter relies on a 37-degree metal-to-metal flare seal, not thread tape or sealant. To get a perfect seal, ensure both mating surfaces are spotlessly clean and free of burrs. Tighten the fitting "finger tight" until the flare seats, then use a wrench to tighten it an additional 1/8 to 1/4 turn. Over-tightening can crush the flare, actually creating a leak path that didn''t exist before. If you are mating the 10mm-1.5 side into a flat-faced port, ensure you are using the appropriate crush washer or O-ring if the component requires it, though many metric brake ports rely on an internal flare seat.

3. Manage Vibration with Proper Line Routing

When transitioning from a hard-mounted adapter like the ALL50036 to a -4 AN braided line, you must account for the movement of the suspension and the vibration of the engine. Never leave a braided line "flopping" in the wind. Use insulated P-clamps to secure the line within 6 inches of the adapter fitting. This prevents the weight and whip of the hose from putting leverage on the adapter, which can lead to fatigue cracks or loosening over time. In a Baja Bug or a Sand Rail where suspension travel is measured in feet rather than inches, ensure your hose has enough slack at full droop to prevent pulling on the fitting, but not so much that it can get caught in the tires or CV joints.
