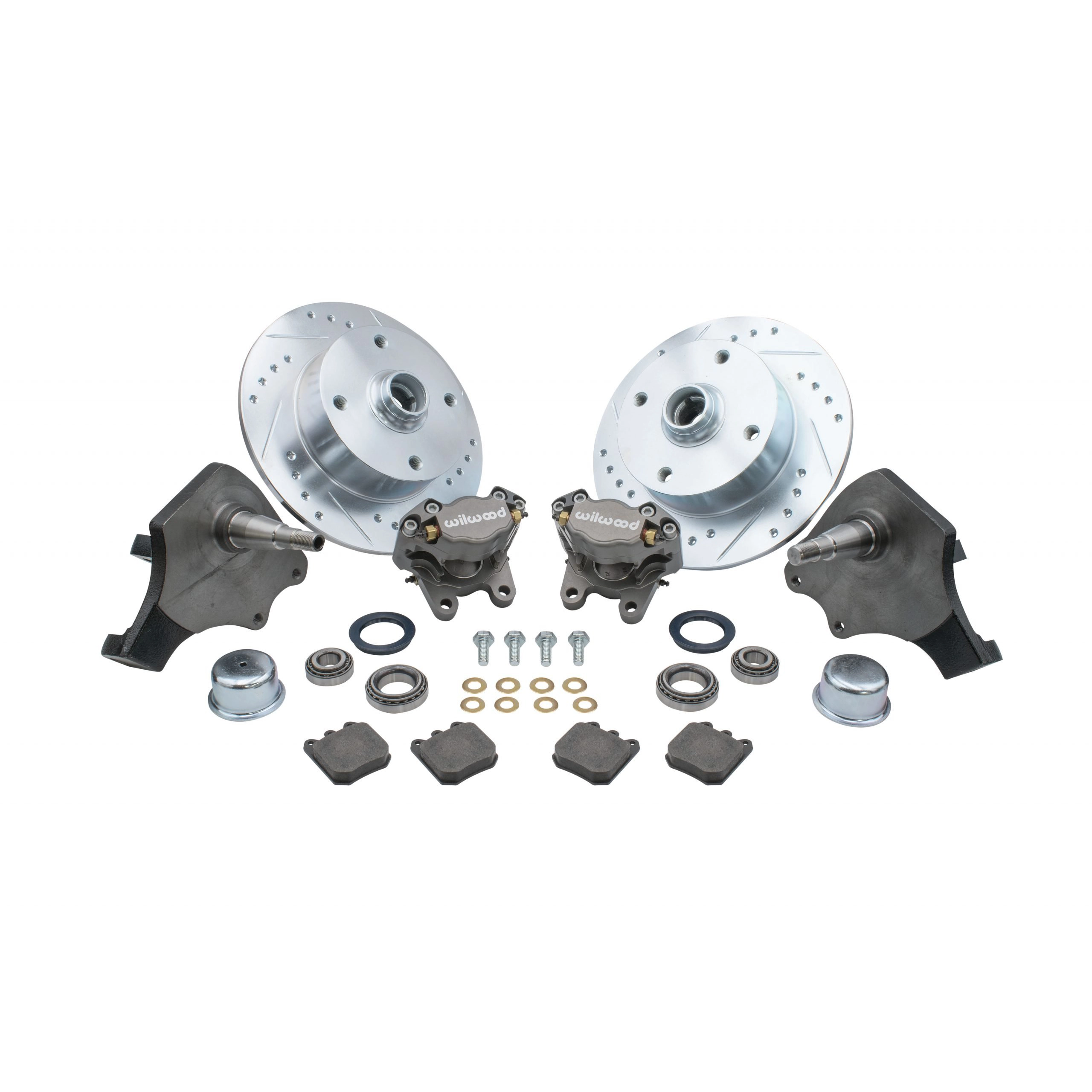

Drop Spindle Disc Brake Kit, 4 On 130mm, Ball Joint BLACK

OVERVIEW

Transform your classic Volkswagen''s stance and stopping performance with the ultimate front-end upgrade. This EMPI Drop Spindle Disc Brake Kit is engineered for the air-cooled enthusiast who refuses to compromise between a lowered look and modern safety. By utilizing 2.5-inch drop spindles, this kit lowers your vehicle''s center of gravity without sacrificing suspension travel or steering geometry, ensuring your Beetle or Ghia handles as good as it looks. The star of the show is the inclusion of genuine Wilwood billet aluminum calipers in a sleek black finish, providing massive clamping force and a high-tech aesthetic that peeks through your 4-lug wheels. Whether you are navigating tight canyon curves or cruising the local strip, this kit delivers the confidence-inspiring braking power that original drum brakes simply cannot match.

Every component in this comprehensive kit has been selected for durability and precision fitment. Unlike piecemeal setups, this bolt-on solution includes premium vented rotors that effectively dissipate heat to prevent brake fade during spirited driving. We have paired these rotors with world-class SKF wheel bearings to ensure smooth, long-lasting rotation and reduced rolling resistance. The 4 on 130mm bolt pattern remains true to the classic VW 4-lug design, allowing you to retain the iconic look of your vehicle while gaining the mechanical advantages of a modern disc system. From the stainless steel brake lines to the heavy-duty mounting brackets, this kit represents the pinnacle of air-cooled braking technology, designed specifically for ball-joint front ends from 1966 and later.

FITMENT

• VW Beetle (Standard): 1966 - 1977
• VW Beetle Convertible: 1966 - 1979
• VW Karmann Ghia: 1966 - 1974
• Note: Fits Ball Joint front ends ONLY.
• Note: Requires the use of 15-inch or larger wheels for caliper clearance.

SPECS

• Spindle Type: 2.5-Inch Drop Spindle (Ball Joint).
• Caliper Brand: Wilwood Precision Billet Aluminum.
• Caliper Finish: Black Anodized.
• Rotor Style: Vented for superior cooling.
• Bolt Pattern: 4 on 130mm (Standard VW 4-Lug).
• Lug Hole Thread: M14 x 1.5mm.
• Wheel Bearings: SKF Premium Bearings included.
• Brake Lines: Stainless steel braided or reinforced lines included.
• Hardware: High-strength mounting brackets and necessary fasteners included.
• Weight: Approximately 44.75 lbs.

PRO TIPS

1. Verify Wheel Clearance and Offset

Because this kit utilizes high-performance Wilwood calipers and vented rotors, it requires 15-inch wheels to provide enough internal clearance. Before finishing your installation, always "dry fit" your wheel over the new rotor and caliper assembly. Check for any contact between the caliper body and the wheel spokes or the inner barrel. If you are running aftermarket wheels with a deep dish or unique offset, you may need a small spacer to ensure the caliper has adequate breathing room, though most standard 15-inch VW wheels clear without issue.

2. Don''t Skimp on Bearing Grease

The SKF bearings included in this kit are world-class, but they are only as good as the lubricant protecting them. We highly recommend using a high-temperature, high-pressure wheel bearing grease specifically formulated for disc brake applications. Disc brakes generate significantly more heat than drums, which can cause inferior grease to liquefy and leak out. Take the time to "hand pack" the bearings thoroughly, ensuring the grease is forced into the cage and around every single roller for maximum longevity and quiet operation.

3. Upgrade Your Master Cylinder

When switching from front drums to high-performance Wilwood disc brakes, your stock master cylinder may feel "mushy" or lack the volume necessary to move the larger caliper pistons effectively. To get the most out of this kit, we strongly suggest upgrading to a dual-circuit master cylinder if your car isn''t already equipped with one. Furthermore, ensure your residual pressure valves are correct; disc brakes typically require a 2lb valve (or none at all) compared to the 10lb valves used for drums. This ensures your new pads don''t drag on the vented rotors, keeping your brakes cool and responsive.
