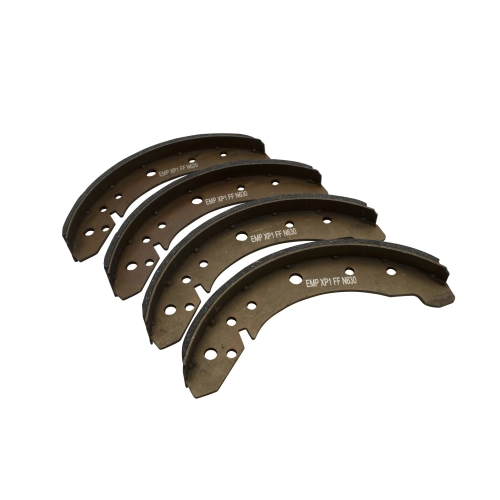

Rear Brake Shoes, for Swing Axle, Beetle & Ghia 58-64

Restore Superior Stopping Power to Your Classic Air-Cooled Legend

When it comes to maintaining the safety and performance of your vintage Volkswagen, nothing is more critical than the braking system. These EMPI Rear Brake Shoes are specifically engineered for the 1958 through 1964 Volkswagen Beetle and Karmann Ghia equipped with a swing axle rear suspension. During this era, VW refined the Type 1 chassis, and having the correct 30mm (1-3/16 inch) wide shoe is vital for maintaining the original pedal feel and stopping distance. Whether you are navigating city traffic in a restored sunroof Beetle or cruising the coastline in a classic Ghia, these shoes provide the reliable friction coefficient required to bring your air-cooled treasure to a smooth, controlled halt. Don''t settle for "universal" fits that might compromise your safety; these shoes are designed to meet the exact specifications of the 230mm drum setup found on early-sixties Volkswagens.

One of the most common issues we see in the shop is "spongy" braking or pulling to one side, which is often caused by contaminated friction material. Because the swing axle design relies on an inner and outer seal to keep gear oil inside the transaxle, a failure in the axle seal kit often leads to oil soaking into the rear brake shoes. Even if the shoes look like they have plenty of "meat" left, once they are saturated with oil or grease, they are effectively ruined. The porous material absorbs the lubricant, leading to permanent slippage and dangerous heat buildup. This complete set includes four shoes, providing everything you need to refresh both rear wheels. By replacing your worn or contaminated shoes with this high-quality EMPI set, you are ensuring that your vintage VW''s braking system remains as robust as the day it left the factory in Wolfsburg.

Vehicle Fitment and Compatibility

These rear brake shoes are designed for the following models with factory-specification swing axle rear ends:

• Volkswagen Beetle (Type 1): 1958, 1959, 1960, 1961, 1962, 1963, 1964
• Volkswagen Karmann Ghia: 1958, 1959, 1960, 1961, 1962, 1963, 1964
• Dune Buggies & Sand Rails: Any custom build utilizing a 1958-1964 Beetle rear swing axle transmission and drum assembly.

Technical Specifications

Precision manufacturing ensures these shoes fit perfectly within your early-style rear drums:

• Shoe Width: 1-3/16 Inches (Approximately 30mm)
• Drum Diameter Compatibility: 9-1/16 Inches (230mm)
• Placement: Rear Axle Only
• Quantity: Set of 4 Shoes (Does 2 Rear Wheels)
• Reference Part Number: 113-609-537B
• Material: High-performance bonded friction lining for consistent heat dissipation
• Application: Swing Axle configurations only (Not for later IRS models)

Expert Pro Tips from the Apple Tree Garage

Pro Tip 1: The "Dry Shoe" Rule and Axle Seal Inspection

Before you install these brand-new shoes, you must perform a thorough inspection of your rear axle seals. In the world of swing axle VWs, the most frequent cause of brake failure is gear oil leaking from the axle tubes into the drum. If you see any wetness or a thick sludge of oil and brake dust inside the backing plate, you must replace the axle seal kit and the O-rings before installing these shoes. Installing new shoes on a leaking axle is a waste of time and money, as the new friction material will absorb the oil almost instantly, leading to "brake grab" or a total loss of stopping power on that wheel. Always clean the backing plate with a dedicated brake cleaner spray until it is spotless before reassembly.

Pro Tip 2: Measuring for Custom Builds and Buggies

Because Volkswagen parts are so interchangeable, many Dune Buggies and late-model Beetles have "frankenstein" brake setups. We highly recommend measuring your existing shoes before placing your order. This specific kit is the 30mm (1-3/16 inch) wide version used from 1958 to 1964. If your car has been upgraded to later 1965-and-up components, you might actually require the wider 40mm shoes. Use a dial caliper or a simple ruler to verify the width of the metal shoe backing. If it measures roughly 1-3/16 inches, this 113-609-537B set is exactly what you need to get back on the road safely.

Pro Tip 3: Proper Star-Adjuster Technique

To get a high, firm brake pedal, you must adjust the shoes correctly after installation. Many enthusiasts rely on the self-adjusting nature of modern cars, but these vintage Volkswagens require manual adjustment via the star-wheels located behind the backing plate. After installing the drum, turn the adjusters until the shoes lock the drum tight, then back them off exactly 2 to 3 clicks until you hear a very slight "shhh" sound of the shoe just barely touching the drum. Do this for both adjusters on each wheel. This ensures the wheel cylinder doesn''t have to travel as far to engage the brakes, giving you an immediate pedal response and preventing the "double-pump" braking habit that many old VW owners unfortunately develop.
