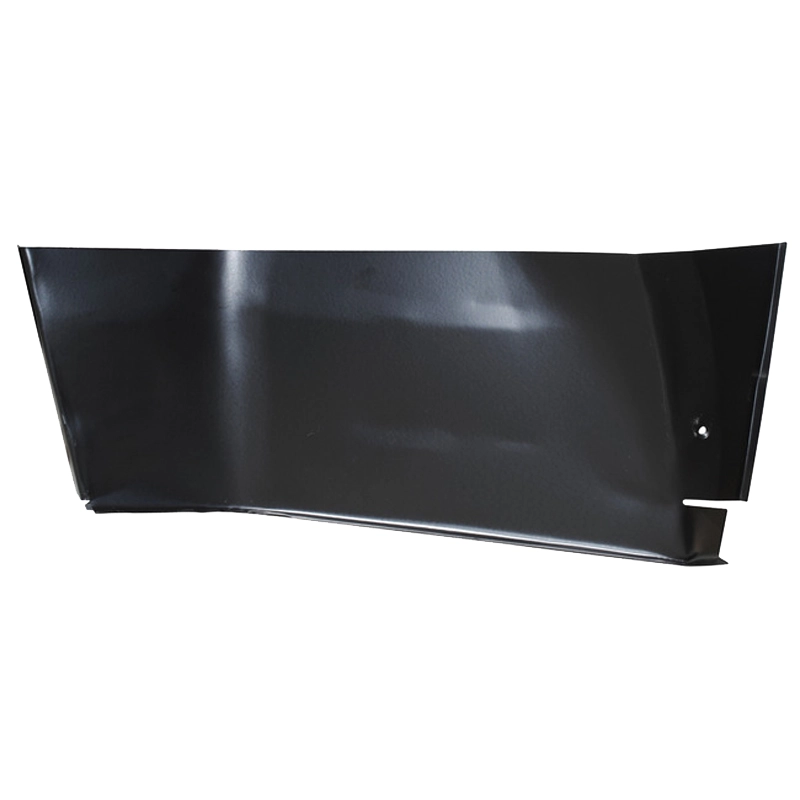

Front Wheelhouse, Left Side, Fits Beetle 58-78

OVERVIEW

When it comes to the structural integrity and longevity of your classic air-cooled Volkswagen, few areas are as vulnerable to the elements as the front wheelhouse. This KeyParts Left Side Front Wheelhouse Rear Section is engineered to address the notorious "rot zone" located directly behind the front tire and ahead of the door pillar. Over decades of service, road salt, moisture, and debris are relentlessly kicked up by the front wheels, trapping corrosive material against the inner bodywork. If left unchecked, this rust will eventually migrate into the A-pillar and the heater channels, compromising the entire front quarter of your Beetle. Our replacement panel provides a factory-correct solution to restore the strength of your chassis while ensuring your restoration project remains historically accurate and structurally sound.

Crafted from high-quality, heavy-gauge steel, this panel is designed to mirror the original Volkswagen contours for a seamless fit. Because this is a weld-in repair panel, it offers a permanent fix that far surpasses the temporary nature of fiberglass patches or body filler. Whether you are performing a full body-off restoration or simply patching a daily driver to keep the elements out, this wheelhouse section is an essential component. By replacing the thinning, perforated metal with fresh steel, you are not only improving the aesthetics of your wheel well but also providing a solid foundation for your front fenders and door hinges to align properly. Trust Appletree Automotive to provide the precision-stamped metal you need to keep your vintage VW on the road for another sixty years.

FITMENT

• VW Standard Beetle (Sedan): 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978
• VW Convertible: 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970
• Side: Left Side (Driver''s Side on US Models)
• Placement: Rear portion of the front wheelhouse assembly

SPECS

• Part Number: 111-809-021D
• Alternate Part Number: 95-10-38-1
• Material: Cold-rolled heavy-gauge stamped steel
• Finish: Protective storage primer (requires sanding before final paint)
• Installation Type: Weld-in replacement
• Shipping Weight: Approximately 1.75 lbs
• Application: Direct fit for Standard Beetle models (Not for Super Beetle)

PRO TIPS

1. Precision Cutting and Spot Weld Removal

Before you begin the installation, it is critical to identify the exact factory seams. Use a dedicated spot weld cutter bit to remove the old, rusted panel without damaging the underlying heater channel or the A-pillar support. Don''t rush the removal process; by taking the time to drill out the welds cleanly, you ensure that the new KeyParts panel sits flush against the original mating surfaces. If you find that the rust has extended into the heater channel, address those repairs first before welding this wheelhouse section into place to ensure a solid, continuous metal bond.

2. Use Weld-Through Primer for Maximum Protection

Rust often starts in the hidden "sandwich" areas where two pieces of metal overlap. To prevent future corrosion, clean the mating flanges of both the car and the new panel to bare metal, then apply a high-quality zinc-based weld-through primer. This allows you to achieve a strong weld while leaving a protective layer inside the seam that standard paint cannot reach. Once the welding is complete and the metal has cooled, always apply a professional-grade automotive seam sealer to the edges to prevent water from wicking into the joint between the wheelhouse and the body.

3. Verify Door and Fender Alignment

While this panel resides inside the wheel well, it is structurally linked to the area that supports your door hinges and front fender mounting points. Before you fully burn in your welds, use Cleco fasteners or vice-grips to hold the panel in place and test-fit your front fender. Ensure the bolt holes align and that the panel doesn''t push the bottom of the A-pillar outward. Checking your gaps early prevents the nightmare of finishing your metal work only to realize your door no longer closes correctly or your fender sits at an awkward angle. Measure twice, tack weld, check fitment again, and then finish your final beads.
