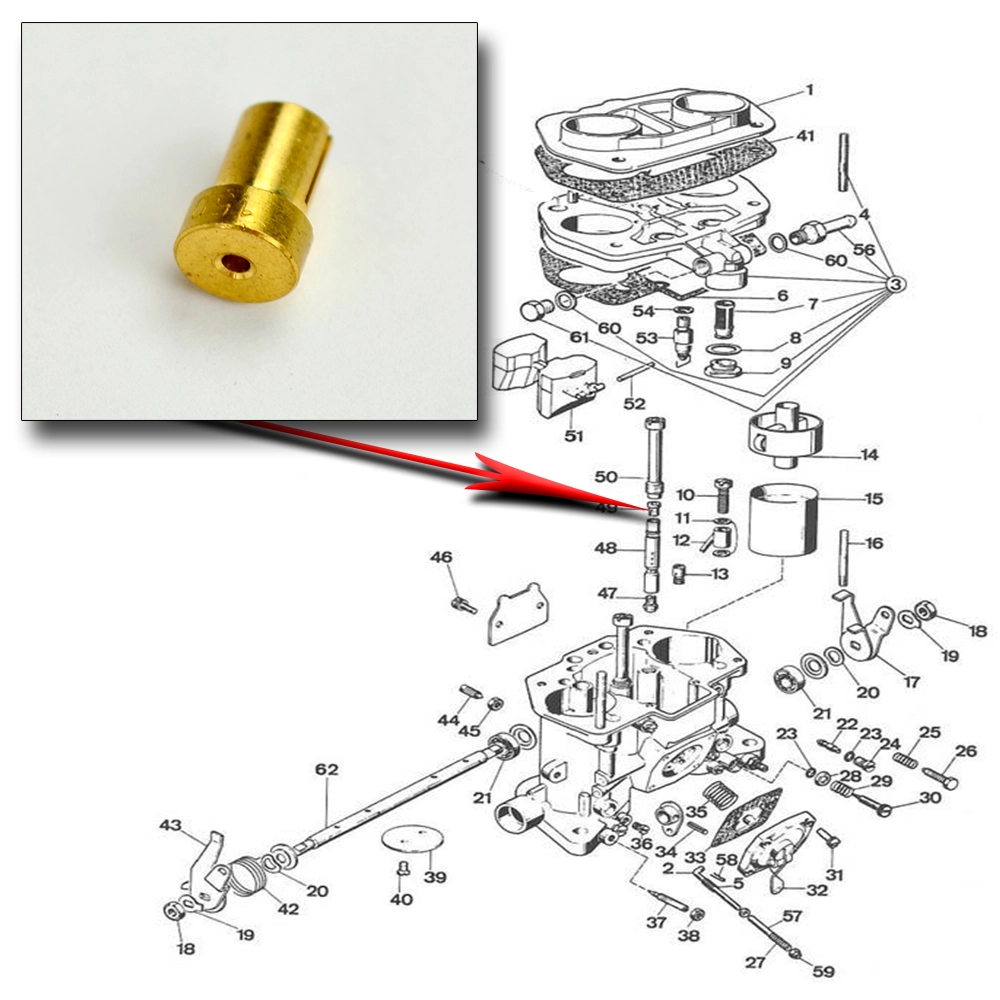

Weber IDF Air Jet 200

OVERVIEW

Precision tuning is the heartbeat of a high-performance air-cooled engine, and the Weber IDF Air Jet 200 is a critical component in achieving that perfect stoichiometric balance. When you are running a dual Weber IDF setup on your classic Volkswagen, you aren''t just looking for transportation; you are looking for crisp throttle response and maximum power delivery across the entire RPM range. The air jet works in conjunction with the emulsion tube and main jet to calibrate the high-speed circuit. By choosing a size 200 jet, you are fine-tuning the point at which the main circuit begins to lean out as the engine speed increases. This specific sizing is often the "sweet spot" for performance-built engines that require a steady air-to-fuel ratio to prevent "stumbling" or richness at the top end of the power band.

At Appletree Automotive, we understand that "close enough" is never enough for a master engine builder. These air jets are manufactured to exacting tolerances, ensuring that each jet provides consistent airflow characteristics across all barrels of your carburetors. Whether you are building a 1776cc street sleeper or a high-revving 2332cc monster, the air jet size dictates how much air is bled into the fuel stream before it enters the venturi. A size 200 air jet is a staple in the toolbox of any VW enthusiast who demands reliability and performance from their Weber 40, 44, or 48 IDF carburetors. Don''t settle for generic components when your engine''s health and performance are on the line; trust the precision-machined quality that comes with these genuine-style EMPI Weber components.

FITMENT

This Weber IDF Air Jet 200 is designed for use with the following carburetor models and air-cooled applications:

• Weber IDF Series: Compatible with 40 IDF, 44 IDF, and 48 IDF carburetors.
• EMPI HPMX Series: Fits all sizes of EMPI HPMX carburetors (40mm, 44mm, 48mm).
• Volkswagen Type 1: Beetle, Karmann Ghia, and Thing (1950-1979) equipped with dual IDF/HPMX setups.
• Volkswagen Type 2: Bus, Transporter, and Westfalia (1950-1971) with performance dual carb upgrades.
• Volkswagen Type 3: Squareback, Fastback, and Notchback.
• Off-Road: Ideal for Sand Rails, Dune Buggies, and Manx-style shells using air-cooled VW powerplants.
• Porsche 356 & 912: Often utilized in performance conversions or aftermarket Weber installations.

SPECS

Technical specifications for the 77401.200 Air Jet:

• Jet Size: 200 (Equivalent to a 2.00mm orifice).
• Material: High-quality, precision-machined brass for corrosion resistance and longevity.
• Manufacturer: EMPI.
• Part Number: 77401.200.
• Thread Type: Standard Weber IDF fitment for the top of the emulsion tube stack.
• Function: High-speed circuit air bleed regulation.
• Quantity: Sold individually (Note: Most dual-carb setups require four jets in total).

PRO TIPS

Tip 1: The Relationship Between Main and Air Jets

Always remember the "Rule of 50" as a baseline for tuning your Weber IDF carburetors. A common starting point is to have your air jet be approximately 50 to 60 points larger than your main jet. If you are running a 150 main jet, a 200 or 210 air jet is a standard place to begin your tuning process. Increasing the size of the air jet will lean out the mixture at higher RPMs, while decreasing the size will richen it up. If your engine feels like it is "falling on its face" at high speeds, you may need to adjust your air jet size to compensate for the fuel delivery curve.

Tip 2: Cleanliness and Installation Precision

When swapping air jets, cleanliness is absolutely paramount. Even a microscopic piece of lint or a tiny grain of sand can disrupt the airflow through the jet, leading to an inconsistent idle or a flat spot in your acceleration. Always use a properly fitting flat-head screwdriver to avoid marring the soft brass of the jet. If you burr the slot, you can create turbulence that affects the air bleed. After installation, ensure the jets are seated firmly but do not over-tighten them, as you could damage the threads in the carburetor body or the emulsion tube holder.

Tip 3: Tuning for Altitude and Engine Load

Be aware that your air jet requirements will change based on your local elevation and the specific load your engine carries. For those living in high-altitude areas where the air is thinner, you may find that a larger air jet (like this 200) helps maintain a proper mixture by introducing more air into the circuit to prevent a rich condition. Conversely, if you are racing in heavy sand or carrying a full load in a Westfalia, your engine''s vacuum signal will be different. Always check your spark plugs after a high-speed "plug chop" run to verify that the 200 air jet is providing the correct coloraiming for a toasted marshmallow tan.
