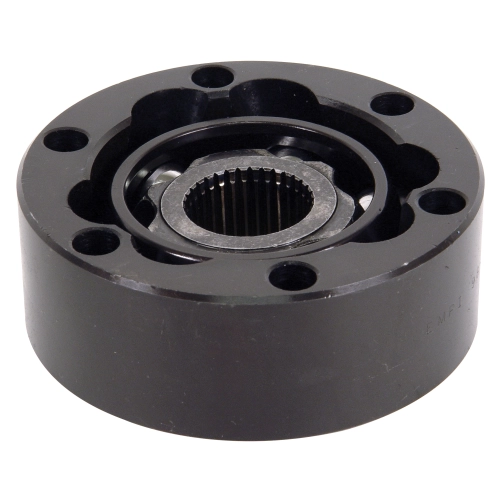

Cv Joint, 128mm 934 Porsche With Chromoly Cage

Overview

When you are pushing the limits of your off-road machine, the stock drivetrain components simply won''t cut it. The EMPI 934 Porsche-style CV joint is the industry standard for high-travel, high-horsepower applications, and this specific model (98-5098-B) takes performance to the next level with its integrated chromoly cage. Unlike standard cast cages that can shatter under the extreme shock loads of desert racing or aggressive dune climbing, the chromoly construction provides the elasticity and strength needed to withstand the most punishing environments. This 128mm outer diameter joint is engineered to handle the massive torque loads produced by modern engine conversions while maintaining the structural integrity required for long-range off-road reliability. Whether you are building a dedicated sand rail or a competition-ready Baja Bug, this CV joint is the foundational component you need to ensure your power actually reaches the dirt without mechanical failure.

What sets this EMPI 934 joint apart from entry-level alternatives is the precision clearancing between the 1.00-inch balls and the internal tracks. This specialized machining allows for maximum articulation angles, preventing the binding that often leads to catastrophic axle or transmission failure during deep suspension cycling. The 33-spline inner race is designed to mate perfectly with high-performance off-road axles, providing a secure, high-contact surface area that distributes load evenly. At Appletree Automotive, we know that downtime in the shop means missed time on the trail, which is why we recommend this solid outer race design for enthusiasts who demand the absolute best in driveline technology. This isn''t just a replacement part; it is a significant upgrade for any air-cooled VW or Porsche-based drivetrain looking to conquer the toughest terrain on the planet.

Fitment

• Custom Off-Road Applications: Specifically designed for Sand Rails, Dune Buggies, and Manx-style buggies using 934-style drive flanges.
• VW Baja Bugs: Ideal for vehicles equipped with 934 conversion kits and long-travel suspension setups.
• VW Bus/Transporter: Fits Type 2 and Type 4 applications utilizing 934-style high-performance conversion stubs and drive flanges.
• Porsche 934: Direct replacement/upgrade for vehicles utilizing the 128mm CV joint standard.
• Race Cars: Compatible with most Class 1, Class 5, and Class 10 off-road racing chassis.

Technical Specifications

• Outer Diameter (O.D.): 128mm (Standard 934 Porsche Size).
• Inner Race Spline Count: 33-Spline (High-torque capacity).
• Ball Diameter: 1.00 Inch (Large diameter for increased load distribution).
• Cage Material: High-Strength Chromoly Steel for superior durability.
• Outer Race Style: Solid construction for maximum housing rigidity.
• Articulation: Pre-clearanced for high-angle suspension travel.
• Manufacturer: EMPI.
• Part Number: 98-5098-B.

Pro Tips from the Appletree Specialist

1. Use High-Quality Moly Grease: Never use standard chassis grease in a 934 CV joint. Because of the high heat and extreme friction generated by high-angle articulation, you must use a high-content Molybdenum Disulfide (Moly) grease. We recommend filling the joint thoroughly and ensuring the boot has a small reservoir of grease as well. This reduces the risk of galling the tracks and significantly extends the life of the chromoly cage and the 1.00-inch balls.

2. Proper Phasing and Clocking: When installing your axles, ensure that the CV joints are ''''phased'''' or clocked correctly relative to each other on the axle shaft. If the joints are not aligned properly, they can create a harmonic vibration that leads to premature wear of the transaxle bearings and the CV joints themselves. Always double-check that the inner races are oriented identically on both ends of the axle before securing your boots and clamps.

3. Monitor Your Limit Straps: Even though these joints are clearanced for maximum angles, they are not indestructible. Ensure your suspension limit straps are set so that the CV joint never reaches its absolute mechanical limit at full droop. If the joint ''''bottoms out'''' or binds at the end of the suspension stroke, it will likely crack the chromoly cage or explode the outer race. A safety margin of 2 to 3 degrees of remaining travel at full droop will save you thousands of dollars in drivetrain repairs over the life of your vehicle.
