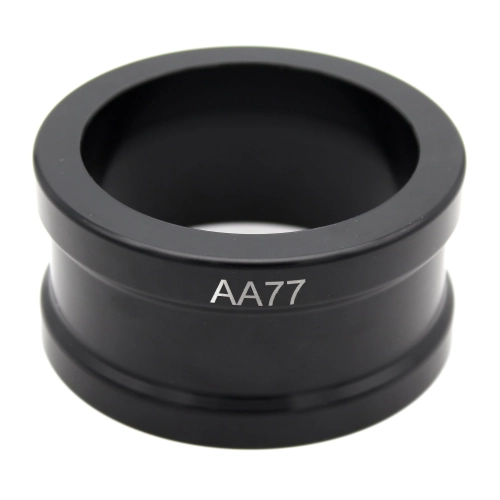

Ring Compressor Tool, 77mm

OVERVIEW

Every seasoned air-cooled VW engine builder knows that the difference between a high-performance build and a catastrophic failure often comes down to the smallest details during the assembly process. The AA Pistons 77mm Ring Compressor Tool (RC7700T1) is an absolute necessity for anyone working on the classic 1200cc Type 1 engine platform. Unlike the universal, adjustable clamp-style compressors that can slip, tilt, or scratch your expensive cylinder walls, this precision-machined aluminum tool features a fixed-diameter tapered bore. This design allows you to gently and evenly compress the piston rings as you slide the piston into the cylinder, ensuring that the rings remain perfectly aligned and seated within their grooves without the risk of snapping or snagging on the cylinder edge. It is the professional way to ensure your 40hp build starts its life with maximum compression and zero internal damage.

Crafted from high-quality, lightweight aluminum, this tool is built to withstand the rigors of a professional shop environment while remaining simple enough for the weekend hobbyist to master. The smooth internal finish of the taper reduces friction during the installation process, which is critical when dealing with the delicate oil control rings and compression rings of a 77mm piston set. By using a tool specifically sized for the 77mm bore, you eliminate the guesswork and the potential for "ring pop-out" that often occurs with inferior tools. Whether you are performing a stock restoration on a 1960s Beetle or refreshing a classic Transporter engine, this AA Pistons compressor tool provides the speed, efficiency, and peace of mind that only a purpose-built tool can offer. Don''t risk your engine''s longevity by "eyeballing" the ring installation; do it right the first time with Appletree Automotive''s premium shop gear.

FITMENT

• Volkswagen Type 1 Beetle: 1954-1965 (Equipped with 1200cc 77mm pistons)
• Volkswagen Type 2 Transporter/Bus: 1954-1965 (Equipped with 1200cc 77mm pistons)
• Volkswagen Karmann Ghia: 1955-1965 (Equipped with 1200cc 77mm pistons)
• Industrial Engines: Various air-cooled stationary engines using the 77mm bore size
• Custom Builds: Any Type 1 based engine utilizing a standard 77mm cylinder diameter

SPECS

• Manufacturer: AA Pistons & Liners
• Part Number: RC7700T1
• Bore Size: 77mm (Fixed Diameter)
• Material: High-Grade Machined Aluminum
• Finish: Smooth internal taper for low-friction installation
• Application: VW Type 1, 2, and 3 1200cc engines
• Weight: Approximately 0.16 lbs (Ultra-lightweight for easy handling)
• Design: Tapered sleeve design for uniform ring compression

PRO TIPS

1. The Golden Rule of Lubrication

Never attempt to use a ring compressor dry. Before placing the 77mm compressor over the piston, apply a generous coating of clean engine oil or specialized assembly lube to both the internal taper of the tool and the piston rings themselves. This creates a hydraulic cushion that allows the rings to glide smoothly into the cylinder. If you feel any significant resistance while pushing the piston through, stop immediately, back it out, and re-check your ring alignment. Forcing a dry ring into the compressor is the leading cause of micro-scratches on the ring face, which can lead to poor seating and oil consumption issues later on.

2. Precise Ring Gap Orientation

Before you even pick up the AA Pistons compressor tool, ensure your ring gaps are clocked according to the manufacturer''s specifications. Generally, for a VW air-cooled engine, you want to stagger the gaps at 120-degree or 180-degree intervals to prevent "blow-by." Once the gaps are set, hold the rings in place as you slide the compressor over the piston. The beauty of this fixed 77mm tool is that it won''t shift your gaps like a screw-type compressor might. Double-check that the "top" marking on the rings is facing the piston crown before the compressor hides them from view.

3. The Gentle Tap Technique

When you are ready to transfer the piston from the tool into the cylinder, place the compressor firmly against the top of the cylinder. Do not use a heavy metal hammer to drive the piston in. Instead, use the wooden or plastic handle of a hammer or a rubber mallet to give the top of the piston several light, rapid taps. This vibration helps the rings find their seat as they transition from the tapered tool into the cylinder bore. If the piston doesn''t move with light taps, the tool might not be perfectly flush with the cylinder. Ensure the tool is centered, and you''ll find the piston slides home with satisfyingly smooth precision.
