Steering Shaft Bearing Bracket, for Bolt On Steering Bearing

Precision Steering Control for Your Custom Air-Cooled Build

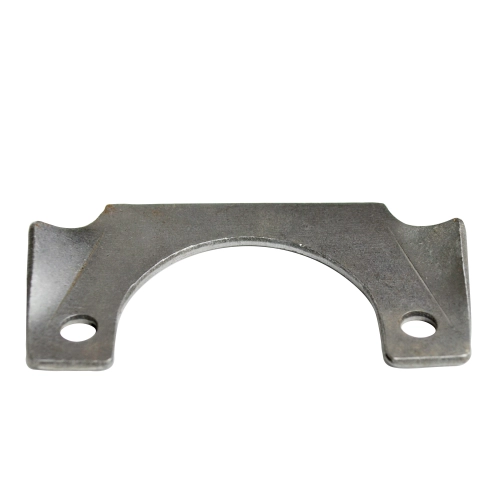

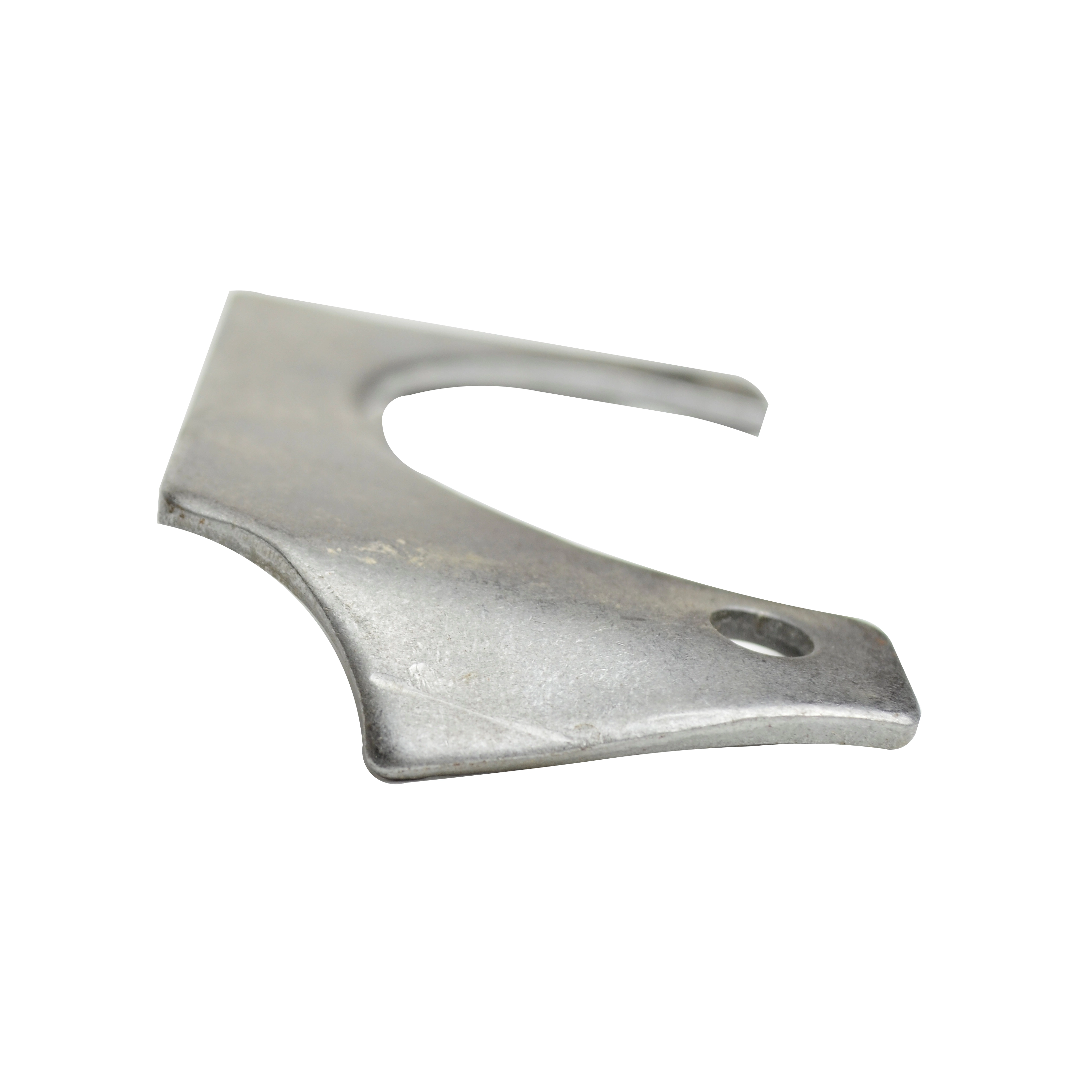

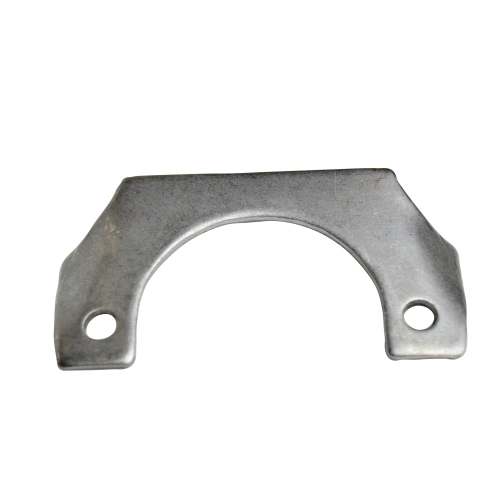

When you are building a custom off-road machine, whether it is a high-performance sand rail, a rugged woods buggy, or a competition-ready Baja Bug, the stock steering column is often the first thing to be replaced. Navigating technical terrain requires a steering system that is rigid, reliable, and perfectly aligned. The A&A Manufacturing Steering Shaft Bearing Bracket (AA123A) is the industry-standard solution for fabricators who demand professional-grade results. This bracket is designed to be welded directly onto your chassis cross-tube or windshield bar, providing a rock-solid foundation for a bolt-on steering bearing. By using this precision-stamped steel bracket, you eliminate the flex and vibration associated with inferior mounting methods, ensuring that every input you make at the steering wheel translates directly to the spindles.

Crafted from high-quality, weldable mild steel, this bracket is engineered to survive the harshest environments found in desert racing and trail riding. A&A Manufacturing is legendary in the off-road and circle track worlds for producing components that bridge the gap between DIY fabrication and professional racing standards. This bracket features a flat, stable mounting surface that ensures your steering bearing sits perfectly flush, which is critical for preventing shaft binding and premature bearing failure. Its compact footprint allows for versatile placement within the cockpit, making it easy to achieve the ideal steering wheel height and angle for your specific driving position. Don''t compromise the safety and feel of your vehicle with "make-shift" tabs; choose a component designed specifically to handle the torque and stress of off-road steering systems.

Vehicle and Chassis Fitment

This is a universal fabrication component designed for custom steering configurations. It is commonly used on the following applications:

• VW Sand Rails & Dune Buggies: Perfect for all tube-chassis frames including Berrien, Chenowth, and custom builds.
• Volkswagen Baja Bugs: Ideal for cars utilizing a full roll cage and aftermarket steering columns.
• Manx-Style Buggies: Used when upgrading to a secure, modern steering bearing setup.
• Off-Road Race Cars: Suitable for Class 1, Class 5, and Class 11 competitive builds.
• Custom Tube Chassis: Any project utilizing a 1.25-inch to 1.75-inch diameter cross-bar for steering support.
• Rock Crawlers & Jeeps: Often used in custom hydraulic or manual steering conversions.

Technical Specifications and Dimensions

• Material: Heavy-duty cold-rolled mild steel for superior weldability.
• Manufacturer Part Number: AA123A (A&A Manufacturing).
• Mounting Style: Weld-on (Chassis side) / Bolt-on (Bearing side).
• Compatibility: Designed for standard 2-bolt flange steering bearings.
• Finish: Raw steel (Requires paint or powder coat after installation).
• Application: Support bracket for internal steering shaft bearings.
• Quantity: Sold individually.

Pro Tips from the Appletree Shop

Pro Tip 1: The "Tack-and-Test" Alignment Method. Before you lay down your final beads of weld, it is vital to mock up the entire steering assembly. Bolt your bearing to the AA123A bracket and slide your steering shaft through the assembly. Tack-weld the bracket to your cross-tube and rotate the steering wheel from lock-to-lock. If you feel any "tight spots" or resistance, your alignment is off. Adjust the bracket position until the shaft spins with zero friction, then proceed with the final welding. This ensures a smooth, bind-free steering feel that won''t fatigue your arms during long drives.

Pro Tip 2: Managing Heat to Prevent Warpage. When welding this bracket to your cage, the heat can potentially warp the flat mounting surface if you aren''t careful. We recommend removing the actual bearing from the bracket during the welding process to prevent melting the seals or damaging the race. Use a series of short welds, alternating sides to distribute the heat evenly. Once the welding is complete, let the metal cool naturally in the air. Never quench the bracket with water, as this can make the steel brittle and lead to stress cracks under the heavy vibration of off-road use.

Pro Tip 3: Critical Rust Prevention. Since this bracket is made of raw mild steel, it will begin to develop surface rust almost immediately if exposed to moisture or even high humidity. After you have finished your welds and the metal has cooled, clean the area thoroughly with a high-quality wax and grease remover or brake cleaner. Apply a coat of self-etching primer followed by a durable chassis paint or powder coat. Because the steering column area is a high-touch zone and often exposed in open-cockpit buggies, proper finishing is the only way to ensure your steering system remains looking professional and stays structurally sound for years to come.
