JayCee Mag X Plate Sump Drain with O-Ring, Red

OVERVIEW

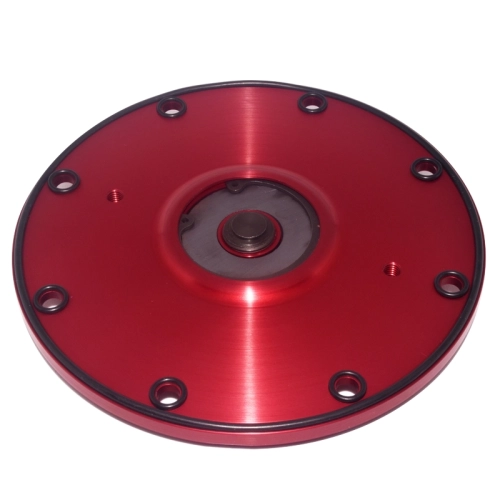

When it comes to the heart of your air-cooled engine, the smallest details often make the biggest difference in longevity and reliability. The JayCee Mag X Plate Sump Drain is a masterclass in performance engineering, designed to replace the antiquated and often leaky stock stamped-steel sump plates found on Type 1, 2, and 3 engines. Machined from high-grade 6061 T6 billet aluminum, this plate eliminates the frustration of messy paper gaskets and constant oil seeps. By utilizing a high-quality Buna rubber O-ring seal, JayCee has created a component that provides a redundant, leak-proof interface between the sump and the engine case. Whether you are running a high-compression street strip engine or a reliable weekend cruiser, this Mag X plate ensures your oil stays inside the engine where it belongs while adding a professional, CNC-machined aesthetic to your undercarriage.

Beyond its sealing capabilities, the JayCee Mag X Plate serves as a critical diagnostic tool for the serious VW enthusiast. It features a powerful, snap-ringed magnet pre-installed into the center of the plate, positioned perfectly to catch microscopic steel particles before they can be sucked into your oil pump and circulated through your bearings. This creates an invaluable inspection point during every oil change; simply wipe the magnet clean and check for unusual debris to monitor the health of your internal components. Finished in a striking red anodized coating, this kit includes a flush-mount Allen-head drain plug that offers maximum ground clearance for lowered vehicles, ensuring that your oil changes are as clean and efficient as the engine itself. It is not just a part; it is cheap insurance for your expensive engine build.

FITMENT

• Volkswagen Type 1 Beetle: 1954 through 1979 (All 1200cc, 1300cc, 1500cc, and 1600cc based engines)
• Volkswagen Type 2 Bus / Transporter: 1954 through 1971
• Volkswagen Karmann Ghia: 1956 through 1974
• Volkswagen Type 3 (Squareback, Fastback, Notchback): 1962 through 1973
• Volkswagen Thing (Type 181): 1973 through 1974
• Custom Sand Rails and Dune Buggies: All models utilizing VW air-cooled engine cases

SPECS

• Material: CNC Machined 6061 T6 Billet Aluminum
• Finish: Bright Red Anodized for corrosion resistance and style
• Seal Type: Custom-fit Buna-N Rubber O-ring (No paper gasket required)
• Magnet: High-strength magnet secured with a heavy-duty snap ring
• Drain Plug: Flush-mount Allen-head design for maximum ground clearance
• Hardware Compatibility: Fits standard 6mm sump studs
• Application: Direct bolt-on replacement for factory part number 113115181

PRO TIPS

1. Proper O-Ring Lubrication and Seating

Before installing your JayCee Mag X Plate, always apply a thin film of clean engine oil or a light assembly lube to the Buna rubber O-ring. This prevents the rubber from binding or "rolling" as you tighten the nuts down against the engine case. When sliding the plate over the sump studs, ensure the O-ring is seated perfectly in its machined groove. Because this plate eliminates the need for messy paper gaskets, you get a much more consistent seal, but it relies entirely on the integrity of that O-ring. If you ever notice the O-ring becoming flattened or brittle during an oil change, replace it immediately to maintain a leak-free seal.

2. Torque Consistency for Magnesium Cases

When securing the sump plate, it is vital to use a torque wrench and tighten the small 10mm nuts in a cross-pattern. Over-tightening these nuts can easily pull the studs out of a soft magnesium engine case or warp the sealing surface. We recommend torquing the nuts to approximately 5 to 7 foot-pounds (60 to 84 inch-pounds). Because the JayCee plate is made from rigid billet aluminum and uses an O-ring, you don''t need to "crank" it down to stop leaks like you might with a stock stamped-steel plate. A firm, even seat is all that is required for a perfect seal.

3. Reading Your Magnet for Engine Health

Treat every oil change as a health check-up for your Volkswagen. When you remove the flush-mount drain plug and the sump plate, pay close attention to the material trapped by the snap-ringed magnet. A tiny amount of "gray fuzz" or microscopic metallic paste is normal wear and tear for an air-cooled engine. However, if you find larger flakes or "splinters" of steel, it is an early warning sign of lifter, camshaft, or bearing failure. Catching these issues early via the JayCee Mag X Plate can save you thousands of dollars by allowing you to address a problem before it leads to a catastrophic engine failure on the road.
