JayCee Mag-Plate Sump Drain With O-Ring, Red

OVERVIEW

When it comes to protecting your high-performance air-cooled engine, the JayCee Mag-Plate Sump Drain is the gold standard for enthusiasts who demand precision engineering and absolute reliability. This isn''t just another dress-up part; it is a critical engine health diagnostic tool masquerading as a beautiful piece of CNC-machined hardware. Manufactured right here in the USA from premium 6061 T6 billet aluminum, the JayCee Mag-Plate replaces the flimsy, leak-prone factory stamped-steel oil strainer cover. The striking red anodized finish not only adds a professional look to your engine case but also provides a hard-wearing surface that resists corrosion and the harsh environment of the underside of your Volkswagen. By moving away from the traditional paper gasket system, JayCee has engineered a superior sealing solution that utilizes a high-quality Buna rubber O-ring, ensuring that your garage floor stays dry and your oil stays exactly where it belongsinside the case.

Beyond its leak-proof design, the true genius of the JayCee Mag-Plate lies in its integrated magnetic filtration system. Every unit comes equipped with a heavy-duty magnet secured by a robust snap-ring, positioned perfectly to capture microscopic ferrous metal particles before they can be recirculated through your oil pump and delicate engine bearings. This makes the Mag-Plate an essential inspection device during every oil change; by simply examining the magnet, you can catch potential internal engine wear or component failure long before it leads to a catastrophic breakdown. The inclusion of a flush-mount, Allen-head drain plug allows for quick, clean oil changes without the need to remove the entire plate every time. For the serious VW builder, this component represents the perfect marriage of form, function, and peace of mind, ensuring your Type 1, 2, or 3 engine lives a long and healthy life.

FITMENT

• Volkswagen Type 1: Beetle and Super Beetle (1954-1979)
• Volkswagen Type 1: Karmann Ghia (1956-1974)
• Volkswagen Type 2: Bus / Transporter / Kombi (1954-1971 with Type 1 based engines)
• Volkswagen Type 3: Squareback, Fastback, Notchback (1962-1973)
• Volkswagen Type 181: Thing (1973-1974)
• Engine Compatibility: Fits all 1200cc, 1300cc, 1500cc, and 1600cc based air-cooled engine cases (stock and aftermarket).

SPECS

• Material: High-grade 6061 T6 Billet Aluminum.
• Manufacturing Process: Precision CNC Machined.
• Finish: Vibrant Red Anodized for durability and style.

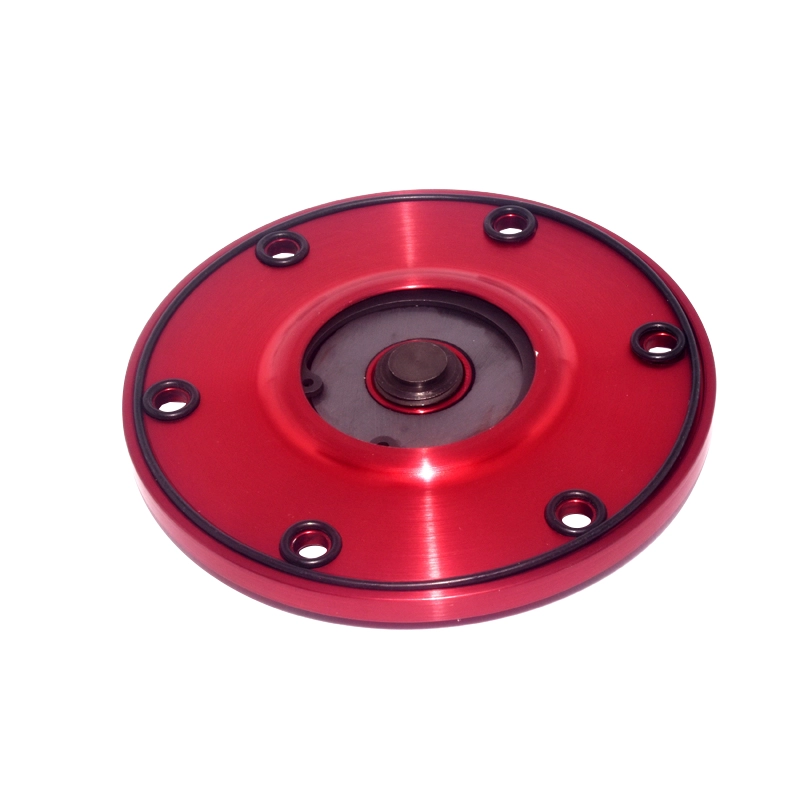

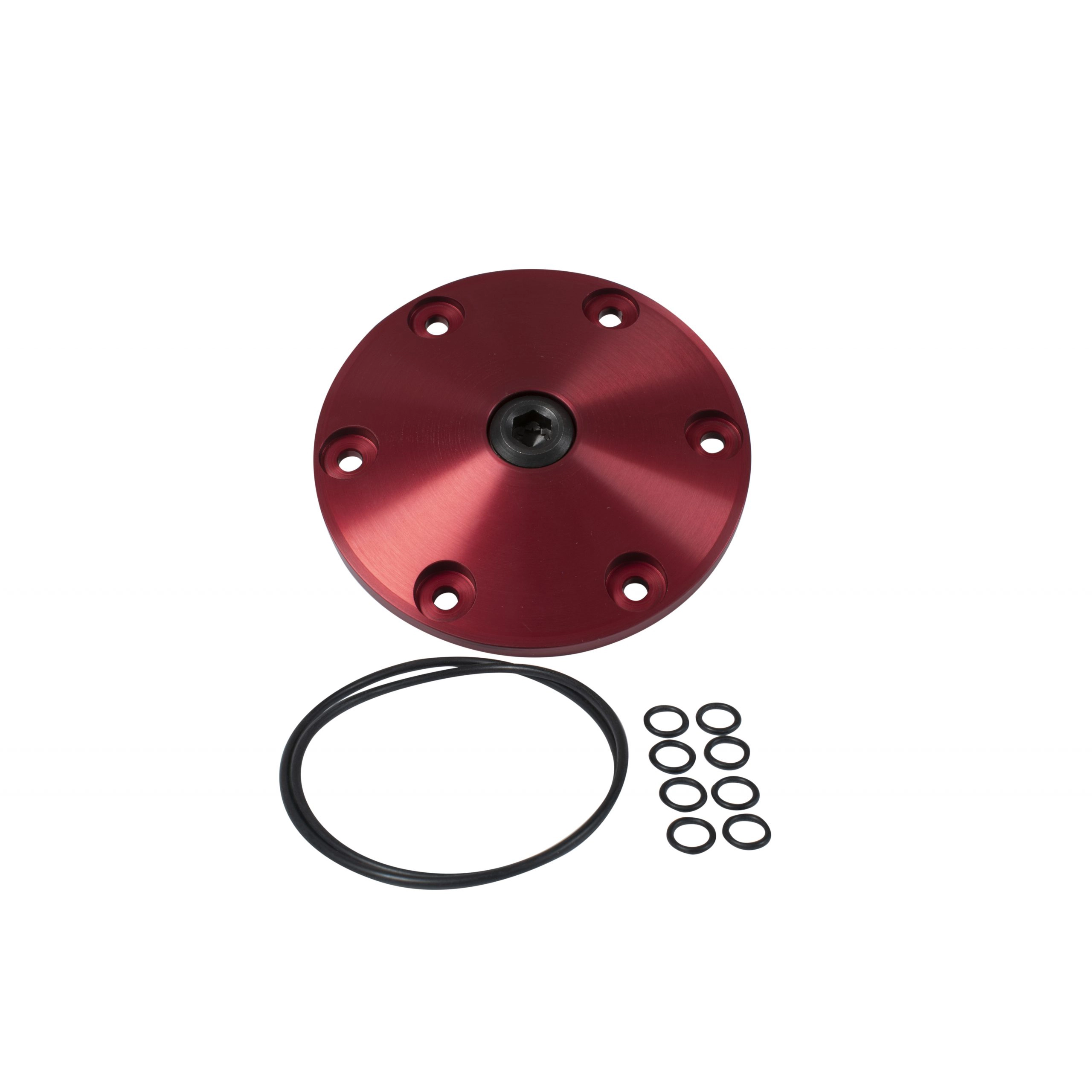

• Seal Type: Custom-fit Buna-N Rubber O-ring (Oil and Heat Resistant).

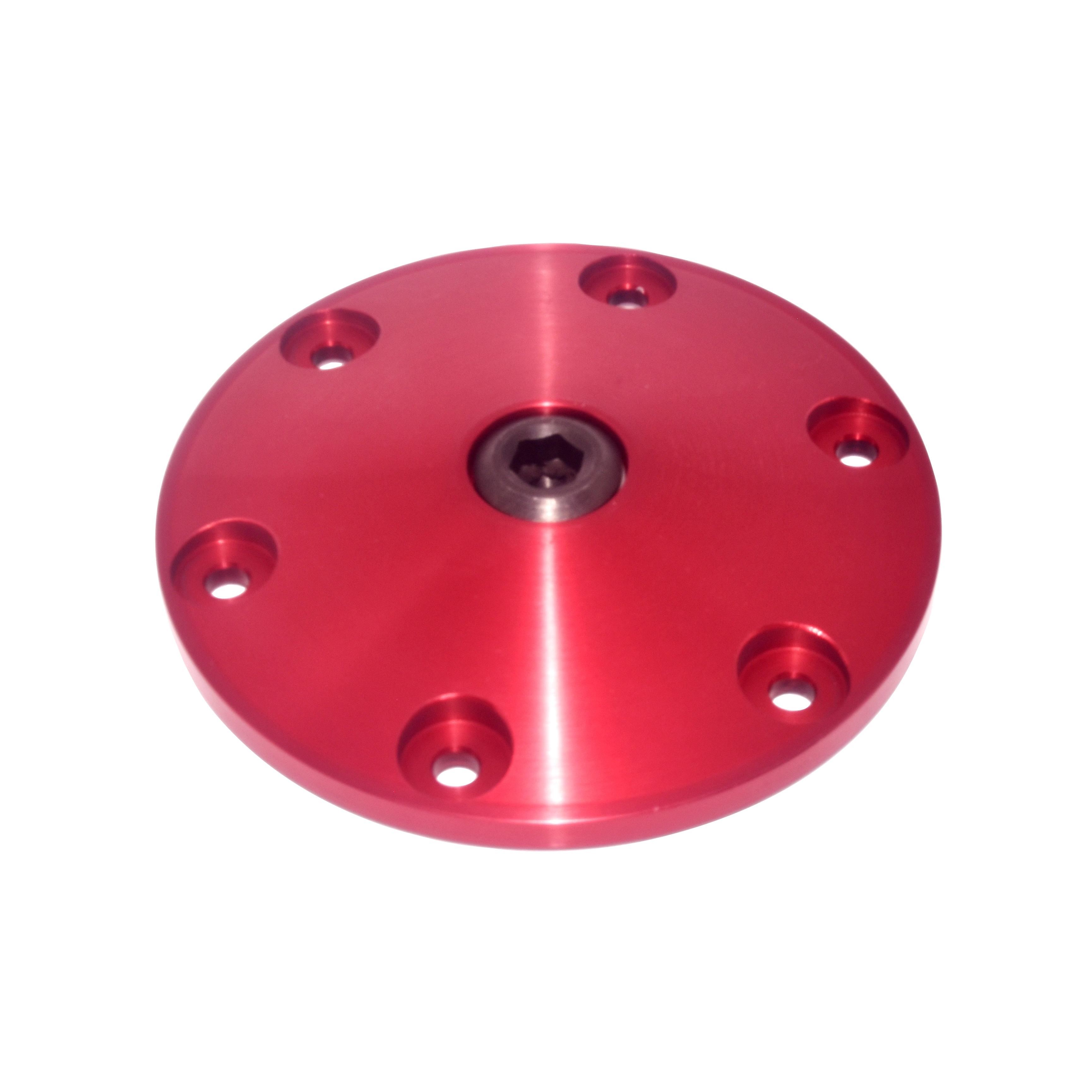

• Drain Plug: Low-profile, flush-mount Allen-head design.
• Magnet: High-strength rare earth magnet retained by a stainless steel snap-ring.
• Gasket Requirement: Eliminates the need for traditional paper gaskets.
• Origin: Proudly Made in the USA.

PRO TIPS

Tip 1: The "Fuzz" Factor Diagnostic

Treat your Mag-Plate as a window into your engine''s soul. During every oil change, carefully inspect the "fuzz" or metal paste collected on the magnet. A very fine, greyish silt is normal wear from rings and lifters bedding in. However, if you find larger flakes or "needles" of steel, it is an early warning sign of a failing camshaft or lifter. By catching these particles on the Mag-Plate, you prevent them from scoring your oil pump gears and destroying your main bearings. Always wipe the magnet completely clean with a lint-free rag before reinstalling the drain plug to ensure it is ready for the next service interval.

Tip 2: O-Ring Installation and Care

To achieve a perfect, leak-free seal, always apply a light film of clean engine oil or assembly lube to the Buna O-ring before installing the plate onto the engine case. This prevents the O-ring from binding or "rolling" as you tighten the nuts. Speaking of nuts, ensure your oil sump studs are in good condition; do not over-torque the 10mm nuts (standard 6mm studs). The O-ring provides the seal, not the crushing force of the plate, so a firm, even snugging in a star pattern is all that is required to keep your VW oil-tight for years to come.

Tip 3: Flush-Mount Clearance Benefits

The flush-mount Allen-head drain plug provided with the JayCee Mag-Plate is a significant upgrade for lowered Volkswagens or off-road Buggies. Unlike the stock 21mm hex head or aftermarket oversized bolts that protrude downward, this flush design minimizes the risk of the drain plug catching on a speed bump, rock, or debris. If you are running a deep sump, this plate is even more critical as it keeps the bottom profile of your engine as smooth as possible. We recommend keeping a dedicated 6mm or 8mm (depending on current plug revision) Allen socket in your glovebox tool kit for easy access during road-trip maintenance.
