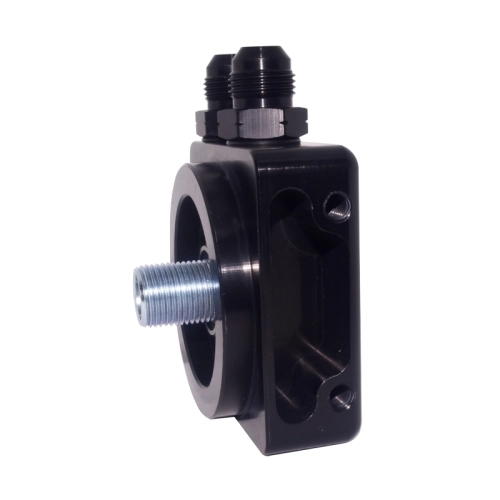

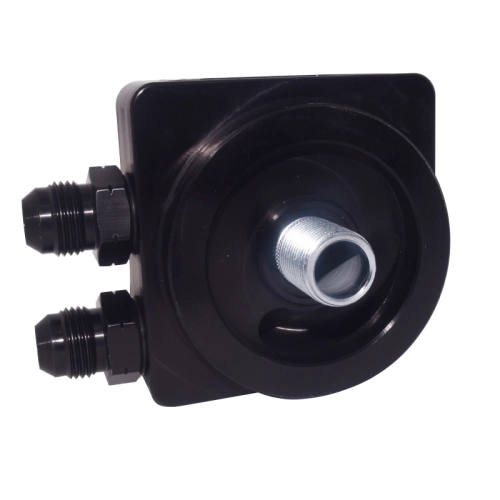

JayCee Billet Oil Manifold, Black

OVERVIEW

When it comes to protecting your high-performance air-cooled engine, oil flow and filtration are the two most critical factors in ensuring longevity and peak power output. The JayCee Billet Oil Manifold in sleek black anodized finish represents the pinnacle of engineering for the Volkswagen performance market. This isn''t just another static mounting block; it is a precision-engineered component that has undergone an extensive ultra-high-flow machining process. By utilizing a specialized tapered inlet, this manifold directs oil more efficiently around the entire circumference of the filter screen, preventing localized pressure drops and ensuring that every square inch of your filter media is working for you. Whether you are building a high-revving street car or a dedicated drag racer, this manifold provides the reliability and flow capacity that standard cast-iron or low-grade aluminum adapters simply cannot match.

Manufactured in-house by the legends at JayCee using aircraft-grade 6061 billet aluminum, this manifold is built to withstand the extreme vibrations and thermal cycling common in air-cooled VW environments. JayCee has recently put this unit on a diet, removing excess internal material to reduce weight while maintaining the structural integrity and the iconic "JayCee" aesthetic that enthusiasts crave. The deep black anodized finish not only looks professional in any engine bay but also provides a hard layer of protection against corrosion and road debris. To ensure a leak-free and high-volume installation right out of the box, this kit includes a pair of JayCee high-flow #8 AN aluminum fittings equipped with premium o-rings. If you are serious about your oiling system, this billet manifold is the foundation upon which a bulletproof lubrication circuit is built.

FITMENT

This manifold is designed for use with universal remote oil systems and requires a "Full Flow" modified engine case or a high-flow oil pump with an outlet. It is a standard upgrade for the following models:

• Volkswagen Type 1: Beetle, Bug, and Super Beetle (All Years)
• Volkswagen Type 2: Bus, Transporter, Kombi, and Microbus (1950-1971)
• Volkswagen Type 3: Fastback, Squareback, and Notchback
• Volkswagen Type 181: The Thing
• Karmann Ghia: All Years
• Custom Applications: Dune Buggies, Sand Rails, Baja Bugs, and Kit Cars using VW-based air-cooled flat-four engines.

SPECS

• Material: CNC Machined 6061-T6 Billet Aluminum.
• Finish: Hard Anodized Black for superior corrosion resistance.
• Inlet/Outlet Port Size: Designed for #8 AN high-flow fittings.
• Fittings Included: Two (2) JayCee high-flow #8 AN aluminum fittings with o-rings.
• Internal Design: Tapered inlet for 360-degree oil distribution around the filter.
• Weight Reduction: Internally relieved to minimize weight without compromising strength.
• Filter Compatibility: Works with JayCee Billet Filters or standard spin-on filters with matching thread patterns.
• Origin: Proudly manufactured in the USA.

PRO TIPS

1. Optimize Placement for Cooling and Serviceability

When mounting your JayCee Billet Oil Manifold, position it in a location that balances airflow and ease of maintenance. Many builders mount the manifold in the rear wheel well or on the frame horn. While these are great for keeping the filter away from engine heat, ensure the lines are routed away from the exhaust system. If you must route lines near the heater boxes or headers, use thermal fire-sleeving to prevent the oil from picking up extra heat before it even reaches the engine. Always mount the manifold so the filter is easily accessible for mess-free oil changes.

2. Use High-Quality Braided Lines

The JayCee manifold is designed for high-flow #8 AN fittings, and your oil lines should match that performance. We strongly recommend using high-quality stainless steel or nylon braided AN lines. Avoid using cheap rubber "push-on" hoses with worm-gear clamps for full-flow systems. The oil pressure in a performance VW engine can spike significantly when the oil is cold, and a burst line can lead to catastrophic engine failure in seconds. The included O-ring fittings on the JayCee manifold provide a superior seal compared to NPT threads, so do not use Teflon tape on the AN fitting side.

3. Prime the System Before Initial Startup

Whenever you install a new remote manifold and filter, you are adding a significant amount of volume to your oiling system that is currently filled with air. Before firing up the engine for the first time, fill the oil filter with fresh oil as much as possible before spinning it onto the manifold. Additionally, we recommend pulling the spark plugs and cranking the engine over until you see oil pressure register on your gauge. This ensures that the new lines and the JayCee manifold are fully charged with oil, preventing a "dry start" that could damage your rod and main bearings.
