Spiral Wire Loom 1/4in x 10ft

OVERVIEW

In the world of air-cooled Volkswagens, wiring management is often the difference between a reliable daily driver and a roadside breakdown. This Allstar Performance 1/4-inch Spiral Wire Loom is the ultimate solution for enthusiasts who demand a clean, professional finish under the hood or behind the dashboard. Unlike standard corrugated tubing that can be bulky and difficult to manage in tight spaces, this spiral wrap allows for maximum flexibility, making it perfect for navigating the complex contours of a classic VW Beetle engine bay or the exposed chassis of a custom Sand Rail. The open-spiral design ensures that your wiring harness remains bundled securely while providing the essential abrasion resistance needed to protect against the constant vibration inherent in high-performance flat-four engines. Whether you are rewiring a vintage Type 1 or building a ground-up Dune Buggy, this 10-foot section of loom provides ample coverage to keep your electrical system organized and protected from the elements.

One of the most significant advantages of using this spiral loom over traditional solid-wall tubing is its ability to shed moisture and debris. In the harsh environments where many air-cooled Volkswagens thrivefrom dusty off-road trails to humid coastal roadstrapped moisture inside a wire loom can lead to terminal corrosion and mysterious electrical shorts. The open design of this high-density polyethylene wrap allows the wires to breathe and prevents the accumulation of dirt that can act like sandpaper against wire insulation. Furthermore, this product is a dream for the "ever-evolving" project car; because it wraps around the wires rather than requiring them to be threaded through, you can easily add a new gauge wire or remove an old circuit without having to disassemble your entire harness. Rated for temperatures ranging from -30 F to 165 F, it is robust enough to handle the thermal demands of a VW engine compartment while maintaining its structural integrity and sleek black appearance.

FITMENT

This 1/4-inch Spiral Wire Loom is a universal component designed to fit a wide range of air-cooled Volkswagen models and custom applications, including but not limited to:

• VW Type 1 Beetle: 1946 through 1979 (Standard and Super Beetle)
• VW Type 2 Bus / Transporter: 1950 through 1979 (Split Window and Bay Window)
• VW Type 3: 1961 through 1973 (Squareback, Fastback, and Notchback)
• VW Karmann Ghia: 1955 through 1974
• VW Type 181 Thing: 1973 through 1975
• VW Type 4: 1968 through 1974 (411 and 412 models)
• Custom Off-Road Vehicles: Meyer''s Manx, Sand Rails, and tube-chassis Dune Buggies
• Baja Bugs: Ideal for protecting exterior light bar wiring and exposed engine components
• Kit Cars: Bradley GT, Sterling, and other VW-based fiberglass bodies

SPECS

• Brand: Allstar Performance
• Part Number: ALL76600
• Diameter: 1/4 Inch (Nominal)
• Length: 10 Feet
• Material: High-Density Polyethylene (HDPE)
• Color: Black
• Temperature Rating: -30 Degrees F to 165 Degrees F
• Style: Spiral Wrap / Open Design
• Resistance Properties: Abrasion resistant, chemical resistant, and moisture shedding
• Expandability: Can expand slightly to accommodate thicker bundles or multiple wire gauges

PRO TIPS

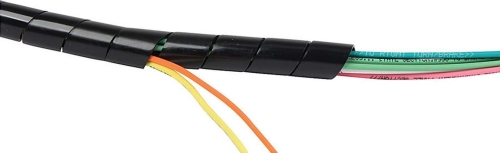

Pro Tip 1: Master the Branch-Out Technique. When wiring a custom VW dash or an engine harness, you often need a single wire to "exit" the main bundle to reach a sensor or a switch. The beauty of this spiral loom is that you don''t need to cut the material to create an exit point. Simply pull the specific wire through the natural gap in the spiral. To ensure the exit point stays secure and doesn''t slide, wrap a small piece of heat-shrink tubing or a high-quality electrical tape around the loom at the point where the wire branches off. This keeps your harness looking factory-made and prevents the spiral from shifting during high-vibration off-road use.

Pro Tip 2: Stagger Your Starts for a Tighter Wrap. If you are bundling several small wires, start the wrap by overlapping the first two turns tightly. As you progress down the length of the harness, maintain a slight tension on the spiral material. This "pre-loads" the plastic, causing it to grip the wires more firmly. In the tight confines of a VW Beetle''s luggage compartment or behind the fuel tank, a tightly wrapped loom takes up less space and prevents the wires from "bird-nesting" inside the wrap, which is critical for maintaining a clean aesthetic in show-winning builds.

Pro Tip 3: Cleanliness Before Coverage. Before installing the spiral loom, ensure your wires are clean and free of any oil or old adhesive residue from previous tape jobs. In an air-cooled engine bay, oil mist can sometimes settle on wiring. If you wrap dirty wires, the grime gets trapped against the insulation. Use a mild degreaser or electronics cleaner on the wires first. Once the loom is installed, you can occasionally spray the exterior of the loom with a UV-protectant dressing to keep the black polyethylene from fading or becoming brittle due to the intense heat and sunlight exposure common in open-engine Dune Buggy applications.
