Battery Disc Panel for Alternator ALL80159

OVERVIEW

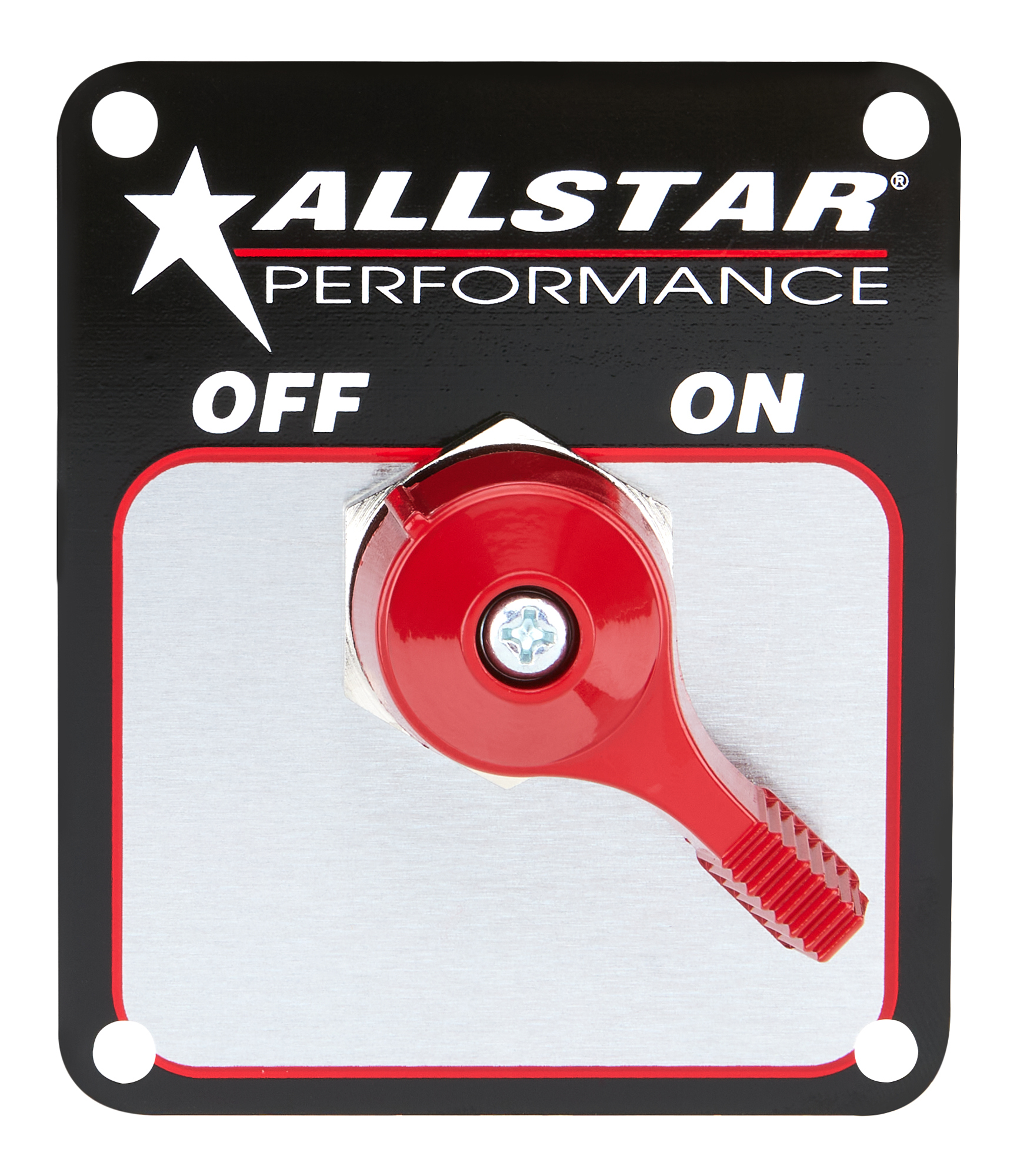

In the world of high-performance air-cooled Volkswagens, safety and electrical integrity are paramount, especially when you are pushing the limits on the track or the dunes. The Allstar Performance Battery Disconnect Panel with Alternator Circuit (ALL80159) is the professional-grade solution for enthusiasts who need a reliable way to completely kill their vehicle''s electrical system. Unlike standard two-terminal switches that only disconnect the battery, this specialized four-terminal unit includes a dedicated circuit to shut down the alternator simultaneously. This is a critical feature for any VW equipped with a modern alternator conversion, as it prevents the engine from continuing to run on the alternator''s internal field current even after the battery connection is severed. This "run-on" can be dangerous in an emergency and can lead to electrical fires or damaged components if not properly managed.

Crafted for durability and a professional finish, this kit includes a high-impact, heavy-duty rotary switch mounted to a rugged aluminum panel. The panel features bright, high-contrast screen-printed "ON" and "OFF" markings, ensuring that there is no guesswork during a high-stress situation or technical inspection. Whether you are building a dedicated NHRA-spec Beetle, a rugged Baja Bug, or a high-end Sand Rail, this disconnect panel provides the peace of mind that comes with knowing your electrical system is fully controllable. The aluminum mounting plate adds a finished, race-ready look to your dashboard or custom center console, while the robust internal contacts of the switch are designed to handle the high-amperage draws typical of performance starter motors and high-output charging systems found in custom air-cooled builds.

FITMENT

This battery disconnect panel is a universal performance component designed for 12-volt systems, making it ideal for the following Volkswagen and off-road applications:

• Volkswagen Beetle: 1950 through 1979 (Standard and Super Beetle)
• Volkswagen Karmann Ghia: 1955 through 1974
• Volkswagen Bus / Transporter: 1950 through 1979 (Type 2)
• Volkswagen Type 3: 1961 through 1973 (Fastback, Squareback, Notchback)
• Volkswagen Thing: 1973 through 1974 (Type 181)
• Custom Off-Road: Dune Buggies, Sand Rails, Manx Clones, and Woods Buggies
• Racing Applications: NHRA, SCORE, and SCCA sanctioned VW racing vehicles

SPECS

The Allstar ALL80159 is engineered to meet the demands of rigorous automotive environments. Below are the technical specifications for this unit:

• Part Number: ALL80159
• Switch Type: Master Battery Disconnect with Alternator Field Cut-off
• Terminal Count: 4-Terminal Design (Two large for battery, two small for alternator)
• Panel Material: Lightweight, High-Strength Aluminum
• Panel Finish: Natural Aluminum with Screen-Printed Graphics
• Amperage Rating (Main): 175 Amps Continuous / 1000 Amps Momentary Surge
• Amperage Rating (Alternator): 20 Amps Continuous
• Mounting Style: Panel Mount with Pre-drilled Holes
• Operation: Manual Rotary Knob (Turn to Kill)
• Compatibility: Compatible with 12V and 16V Electrical Systems

PRO TIPS

1. Prevent Engine Run-On with Proper Wiring

When installing the ALL80159 on a VW with an alternator, it is essential to utilize the two smaller terminals. These terminals are designed to break the circuit to the alternator''s field wire or the ignition coil trigger. If you only disconnect the heavy battery cable, the alternator will continue to produce power as long as the engine is spinning, which keeps the ignition system alive and the engine running. To ensure a true "dead" vehicle, wire the ignition feed through the small terminals so that when the knob is turned to "OFF," the spark is instantly killed along with the battery power. This is a requirement for most racing tech inspections and a vital safety measure for any custom build.

2. Optimize Placement for Emergency Access

For Dune Buggies and Sand Rails, mounting the disconnect panel in a location accessible to both the driver and someone standing outside the vehicle is highly recommended. Many builders mount this on the main dash rail or a center console near the shifter. Ensure that the heavy-gauge battery cables (typically 2-gauge or larger) have enough slack to reach the terminals without being under tension, and use high-quality heat-shrink ring terminals to prevent corrosion. Since air-cooled Volkswagens often have the battery located under the rear seat or in a rear compartment, you may need to run long cable lengths; always use a high-strand count copper cable to minimize voltage drop across the distance.

3. Weatherproofing for Open-Cockpit Vehicles

While the Allstar Performance switch is incredibly durable, air-cooled VWs in off-road environments are often exposed to dust, mud, and moisture. If you are mounting this panel in an open-body Dune Buggy or a Baja Bug that sees heavy trail use, we recommend applying a small amount of dielectric grease to the terminals after tightening the nuts. This prevents oxidation and ensures a solid electrical path over time. Additionally, ensure the aluminum panel is securely grounded if you are using it as a reference point for other dash gauges, though the switch itself operates as an in-line interrupt and does not require a ground to function.
