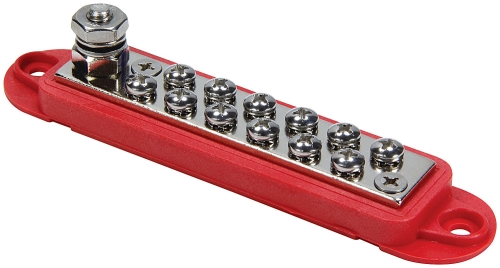

Red 12 Point Busbar 57-801

OVERVIEW

When you are building a high-performance air-cooled Volkswagen or a custom off-road sand rail, the wiring harness often becomes the most overlooked yet critical component of the entire build. Most vintage VW owners are all too familiar with the dreaded ''rat''s nest'' of tangled wires behind the dashboard or tucked into the engine bay corners. The QuickCar Racing Products Red 12 Point Busbar (Part #57-801) is the professional-grade solution to this chaos. Designed to provide a clean, centralized distribution point for your electrical system, this busbar allows you to eliminate messy piggyback connectors and unreliable T-taps. Whether you are powering a modern array of VDO gauges, high-intensity LED off-road lights, or a high-pressure electric fuel pump, this terminal block ensures that your electrical current is delivered consistently and safely across your entire 12-volt system.

Built with the rigorous demands of racing in mind, this busbar is not your average hardware store electrical strip. QuickCar has engineered this unit with a heavy-duty red base, specifically color-coded for positive (+) power distribution to prevent accidental grounding and short circuits during maintenance. The unit features one massive 1/4-inch inlet post that accepts heavy-gauge battery cables or main power feeds, which then distributes that energy to twelve individual #8-32 stainless steel terminal posts. Each of the twelve secondary posts is rated to handle 15 amps of continuous load, making it the perfect hub for managing the complex electrical needs of a Baja Bug, a street-legal Manx-style buggy, or a fully restored Type 1 Beetle. By consolidating your power leads into one rugged, organized location, you significantly reduce the risk of vibration-induced wire fatigue and electrical fires that often plague air-cooled classics.

FITMENT

While this is a universal high-performance electrical component, it is specifically recommended for the following air-cooled Volkswagen and custom applications:

• Volkswagen Type 1 Beetle: 1946 through 1979 (All models).
• Volkswagen Type 2 Bus/Transporter: 1950 through 1979 (Split Window and Bay Window).
• Volkswagen Type 3: 1961 through 1973 (Squareback, Fastback, Notchback).
• Volkswagen Karmann Ghia: 1955 through 1974.
• Volkswagen Thing (Type 181): 1973 through 1975.
• Custom Off-Road Builds: Sand Rails, Dune Buggies, Baja Bugs, and Chenowth-style frames.
• Racing Applications: Drag Beetles, Formula Vee, and Autocross VWs requiring centralized power management.

SPECS

• Manufacturer: QuickCar Racing Products.
• Part Number: 57-801 (QRP57-801).
• Primary Inlet Post: Single 1/4-inch (accepts 1/4-inch ring terminals).
• Secondary Distribution Posts: Twelve (12) #8-32 stainless steel threaded posts.
• Amperage Rating: 15 Amps continuous per small post.
• Base Material: High-impact, non-conductive reinforced polymer.
• Color: Bright Red (Industry standard for positive/hot leads).
• Hardware Included: Stainless steel locking washers for every post to prevent nut loosening from engine vibration.
• Mounting Holes: Two 1/4-inch diameter mounting holes for secure attachment to any flat surface.
• Dimensions: Compact footprint designed for tight spaces under the dash or inside an electronics box.

PRO TIPS

1. Use Quality Terminals and Heat Shrink

To truly get the most out of your QuickCar Busbar, never use cheap plastic-insulated crimp connectors. As an air-cooled specialist, I always recommend using non-insulated seamless copper ring terminals. Once you have made a solid mechanical crimp, slide a piece of marine-grade adhesive-lined heat shrink over the connection. This prevents moisture from wicking up the copper wire and ensures that the vibration of a high-revving VW engine won''t cause the wire to pull out of the terminal. The red base of the 57-801 makes it easy to identify your hot leads, so keep your wiring clean and professional to match the quality of the busbar.

2. Mount to a Non-Conductive Surface or Use Stand-offs

While the base of the QuickCar busbar is made of high-quality insulating material, I always suggest mounting it to a sturdy, flat surface away from direct heat sources like the exhaust or cylinder heads. In a race car or a sand rail with a metal chassis, ensure your mounting bolts are tight and won''t vibrate loose. If you are mounting this inside the trunk area of a Beetle, consider placing it on a piece of HDPE plastic or a dedicated electrical panel. This adds an extra layer of safety and makes it easier to route your wires in a loom before they reach the terminal posts, keeping your build looking like a pro-shop project.

3. Always Fuse the Main Feed

The 1/4-inch main inlet post is designed to handle significant current, but remember that the busbar itself is not a fuse block. You must install a high-amp circuit breaker or a Mega-fuse between your battery (or starter solenoid) and the busbar''s main inlet. This protects the entire busbar and your downstream accessories in the event of a catastrophic short. For a standard street VW with several accessories, a 50-amp to 80-amp main fuse is usually sufficient. By fusing the source, you ensure that the QuickCar 57-801 remains a safe, reliable hub for all twelve of your auxiliary circuits without risking your entire wiring harness.
