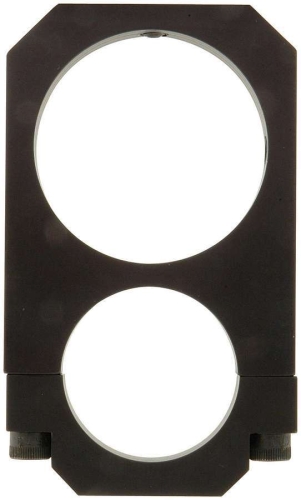

Fuel Filter Bracket 1.375in ALL40227

OVERVIEW

In the world of air-cooled Volkswagens, vibration is a constant reality that can wreak havoc on fuel delivery systems. The Allstar Performance Fuel Filter Bracket (1.375-inch) is the professional solution for securing your inline aluminum fuel filter to prevent line fatigue, fuel leaks, and the dreaded fire hazards associated with loose components. Designed with precision and durability in mind, this bracket provides a rock-solid mounting point on any flat surface, such as a firewall or frame rail. For high-performance Beetle, Ghia, or off-road Manx builds, simply letting a heavy aluminum fuel filter hang by the rubber hoses is a recipe for disaster. This bracket ensures that your fuel system remains stationary, even when navigating the harshest washboard roads or high-RPM street pulls.

Crafted for enthusiasts who demand a clean and organized engine bay, the ALL40227 features a sleek, flush-mount design that integrates seamlessly into custom VW builds. The bracket utilizes a specialized locking set screw that firmly grips the filter body without causing deformation, providing peace of mind that your fuel supply line won''t shift or rub against sharp metal edges. Whether you are building a show-quality Cal-Look Bug or a rugged Baja Bug, the ability to rigidly mount your 1.375-inch diameter filter is a critical step in professional plumbing. At Appletree Automotive, we understand that it''s the small details like proper component clocking and secure mounting that separate a reliable daily driver from a project that leaves you stranded on the side of the road.

FITMENT

This bracket is designed for universal application on vehicles using 1.375-inch diameter inline fuel filters. It is particularly recommended for the following Volkswagen and off-road applications:

• Volkswagen Beetle: All years and models (Standard and Super Beetle).
• Volkswagen Karmann Ghia: All years and models.
• Volkswagen Bus / Type 2: Split Window and Bay Window models.
• Volkswagen Type 3: Notchback, Squareback, and Fastback.
• Volkswagen Thing (Type 181): All years.
• Custom VW Rails: Sand rails, tube chassis drag cars, and woods buggies.
• Meyers Manx: And all similar fiberglass dune buggy bodies.
• Baja Bugs: Ideal for high-vibration off-road environments.

SPECS

• Brand: Allstar Performance
• Part Number: ALL40227
• Clamp Inner Diameter: 1.375 Inches (34.9mm)
• Mounting Style: Flush Mount for Flat Surfaces
• Material: High-Strength Aluminum
• Finish: Natural Machined Aluminum
• Hardware Included: Locking Set Screw for filter retention
• Application: Secures inline aluminum fuel filters to firewalls or frames
• Weight: Approximately 0.34 lbs

PRO TIPS

1. Ideal Placement for Thermal Protection

When mounting your fuel filter bracket on a VW engine, always prioritize a location on the firewall or the frame rail that is away from the direct heat of the exhaust headers or the cylinder heads. In an air-cooled engine bay, heat soak can lead to vapor lock issues. By using this bracket to mount the filter to the firewall, you provide a heat-sink effect and keep the fuel cooler than if the filter were resting against the engine block or the shroud. Always ensure that the fuel lines have enough slack to account for the natural movement and torque of the engine relative to the fixed bracket on the body.

2. Securing the Set Screw Correctly

The Allstar ALL40227 uses a locking set screw to hold the filter in place. It is vital that you do not over-tighten this screw, as many high-performance fuel filters are made of relatively thin-walled aluminum. Over-tightening can potentially crush the filter housing or interfere with the internal filter element. We recommend applying a small drop of blue (medium strength) thread-locking compound to the set screw threads. This ensures that the screw won''t back out due to engine harmonics while allowing you to keep the clamping pressure firm but safe for the filter body.

3. Plumbing for Maintenance Access

When choosing the orientation of the bracket, consider the ease of future maintenance. Position the bracket so that the filter ends are easily accessible with a wrench without having to remove the entire bracket from the firewall. This makes cleaning the internal mesh or replacing the paper element much faster during your regular service intervals. Additionally, ensure the bracket is mounted high enough to prevent any debris from hitting the filter if it is mounted under the vehicle on a frame rail, especially for Baja Bugs and off-road vehicles where ground clearance and impact protection are paramount.
