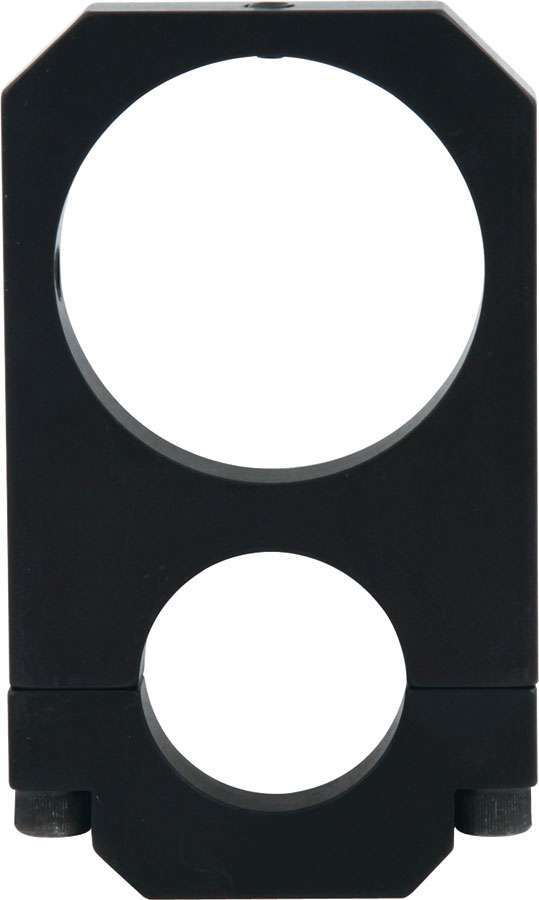

Fuel Filter Bracket 1.25in ALL40229

Secure Your Fuel System with the Allstar Performance 1.25-Inch Fuel Filter Bracket

In the world of high-performance air-cooled Volkswagens and off-road rail buggies, the difference between a podium finish and a breakdown often comes down to the smallest details. The Allstar Performance Fuel Filter Bracket (ALL40229) is designed for the enthusiast who understands that a zip-tie is never an acceptable mounting solution for a critical fuel component. Whether you are bouncing through the whoops in a Baja Bug or pulling high G-loads on the drag strip, keeping your inline fuel filter stationary is paramount. This bracket provides a rock-solid, vibration-resistant mount that ensures your fuel lines remain stress-free and your filter stays exactly where you installed it, preventing chaffing or accidental disconnection during extreme maneuvers.

Crafted with the precision that Allstar Performance is known for, this bracket is specifically engineered to clamp onto 1.25-inch round tubing, making it the ideal choice for custom chassis, roll cages, and engine cradles commonly found in the VW community. The CNC-machined aluminum construction not only offers incredible strength-to-weight ratios but also adds a professional, polished look to your engine bay or chassis. Featuring a split-clamp design with high-quality Allen head screws, the installation is straightforward and incredibly secure. If you are running an Allstar inline aluminum fuel filter or any filter with a matching 1.25-inch outer diameter, this bracket is the definitive way to finish your fuel system with racing-grade security and style.

Vehicle and Chassis Fitment Applications

This bracket is a universal-fit component for any vehicle utilizing 1.25-inch OD (Outer Diameter) tubing. In the air-cooled and off-road VW world, it is most commonly used on the following:

• Sand Rails & Dune Buggies: Perfect for mounting to 1.25-inch frame horns or roll cage supports.
• Baja Bugs: Ideal for attaching to custom tubular engine cages and rear bumpers.
• Meyers Manx & Kit Cars: Provides a clean mounting solution for custom chassis rails.
• Drag Racing Volkswagens: Securely mounts fuel filters to NHRA/IHRA spec roll bars and chassis stiffeners.
• Custom VW Trikes: Fits 1.25-inch frame tubing for a clean, custom look.
• Universal Off-Road Use: Compatible with any 1.25-inch round tube chassis or support brace.

Technical Specifications and Materials

Engineered for the rigors of racing, the ALL40229 bracket meets the highest standards of durability and precision. Here are the technical details for your build planning:

• Tubing Compatibility: Designed specifically for 1.25-inch (1-1/4") Round Tubing.
• Filter Diameter Compatibility: Fits Allstar inline aluminum fuel filters and other brands with a 1.25-inch body diameter.
• Material: High-grade CNC Machined Billet Aluminum.
• Finish: Natural Aluminum for a clean, professional aesthetic.
• Hardware Included: Features zinc-plated Allen head cap screws for maximum clamping force.
• Mounting Style: Two-piece split clamp design for easy installation without removing chassis components.
• Weight: Lightweight design to minimize additional mass on the chassis.
• Part Number: ALL40229.

Pro Tips from the Appletree Garage

Pro Tip 1: Clocking Your Filter for Optimal Flow

When installing the Allstar Fuel Filter Bracket, pay close attention to the orientation of your fuel filter''s inlet and outlet. In air-cooled VW applications, especially those with mechanical fuel pumps, you want to minimize the length of the hose runs and avoid sharp 90-degree bends. Before tightening the Allen screws completely, ''''clock'''' the filter within the bracket so that the fuel lines have a natural, sweeping path to the carburetor or fuel pump. This reduces strain on the hose ends and prevents fuel starvation issues caused by kinked lines during high-vibration off-road use.

Pro Tip 2: Protect the Finish with a Buffer

While this bracket is designed for a precision fit, the vibrations inherent in a flat-four VW engine can lead to minor surface marring over thousands of miles. If you are using this on a show-quality buggy or a freshly powder-coated chassis, we recommend applying a single wrap of thin electrical tape or a sliver of clear heat-shrink tubing to the chassis tube before clamping the bracket down. This creates a high-friction interface that prevents the bracket from rotating while protecting the underlying finish from scratches or metal-to-metal contact.

Pro Tip 3: Prevent Hardware Galling and Back-Out

In the high-vibration environment of a VW engine bay, hardware has a tendency to work its way loose. When assembling your Allstar bracket, we highly recommend applying a small drop of blue (medium-strength) thread locker to the Allen head screws. Additionally, because you are threading steel bolts into an aluminum body, a tiny amount of anti-seize or even a drop of oil can prevent galling of the threads during the initial torque-down. Ensure you tighten the screws evenly in a staggered pattern to provide uniform clamping pressure around the tubing and the filter body.
