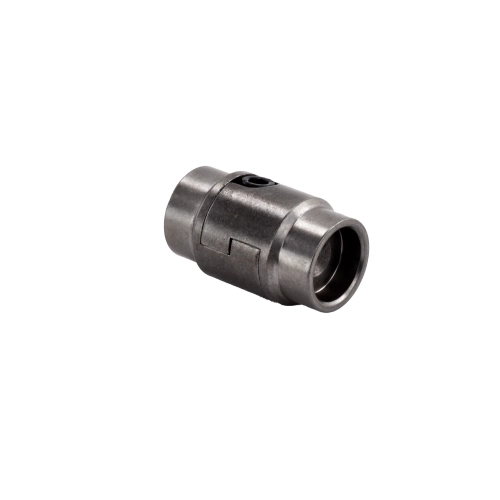

Tubing Connector 1-1/4 .095

OVERVIEW

When you''re deep in a custom air-cooled build, modularity isn''t just a luxury; it''s a necessity for maintenance and long-term versatility. The Latest Rage 1-1/4 inch .095 Wall Tubing Connector is the ultimate solution for fabricators who need to create removable sections in their chassis or roll cage without sacrificing structural integrity or aesthetics. Unlike bulky, unsightly flange plates that can snag on debris or ruin the clean lines of your rail, these weld-on connectors provide a sleek, streamlined appearance. They are specifically engineered to allow for the easy removal of rear cages, engine bars, or tire carriers, making it significantly easier to pull an engine or perform major transmission repairs on your Baja Bug or Sand Rail without cutting into your hard work.

Crafted from high-quality steel, these non-interlocking connectors are designed to slip perfectly into 1-1/4 inch tubing with a .095 wall thickness. The precision-machined insert section ensures a snug fit that minimizes "slop" once bolted together, providing a solid feel that off-roaders demand. Whether you are building a custom Manx-style buggy, a full-tube race chassis, or simply adding a removable brush guard to your favorite woods buggy, these connectors offer a professional-grade finish. By utilizing a single-bolt design, they allow for quick disassembly in the shop while maintaining a low-profile footprint that looks like a permanent part of the frame once painted or powder-coated. This is an essential component for any builder who values both form and function in a high-performance off-road environment.

FITMENT

This is a universal fabrication component designed for custom tube chassis applications. It is commonly used on the following air-cooled VW and off-road platforms:

• Sand Rails & Dune Buggies: All makes including Chenowth, Berrien, and custom-built frames.
• Baja Bugs: Perfect for removable rear engine cages and bumper assemblies.
• Meyers Manx & Kit Cars: Ideal for hidden support structures and roll bar extensions.
• Rail Buggies: Essential for removable top sections or rear-end protection bars.
• Custom Off-Road Chassis: Any vehicle utilizing 1-1/4 inch OD tubing with a .095 wall thickness.

SPECS

Technical specifications and dimensions for the AC702001-095 tubing connector:

• Material: High-strength Carbon Steel.
• Compatible Tubing Diameter: 1-1/4 Inches (1.250").
• Compatible Wall Thickness: .095 Inches.
• Total Length: 1.70 Inches.
• Center Section Length: 1.043 Inches.
• Insert Section Diameter: 1.056 Inches.
• Design Type: Non-Interlocking, smooth profile.
• Connection Style: Weld-on sleeves with a through-bolt fastening point.
• Finish: Raw steel (requires painting or coating after welding).

PRO TIPS

Pro Tip #1: Proper Welding Preparation is Vital. Before you strike an arc, ensure that the inside of your 1-1/4 inch tubing is completely free of burrs, scale, or rust. Use a small flap wheel or a deburring tool to clean the inner diameter where the insert section will sit. Because these are critical structural points, we recommend a slight bevel on the end of your main tubing to allow for maximum weld penetration into the connector body. Always weld these with a high-quality MIG or TIG process to ensure the joint is as strong as the tubing itself.

Pro Tip #2: Prevent Binding with a Dummy Bolt. When you are tack-welding the two halves of the connector into your chassis, it is a master-tech secret to have the two halves bolted together using a "dummy bolt." This ensures that the alignment remains perfect as the metal expands and contracts from the heat of the weld. If you weld them separately without being joined, you may find that the bolt holes don''t line up perfectly later, or the insert becomes difficult to slide in and out. Once the final welds have cooled completely, remove the dummy bolt and replace it with a fresh Grade 8 fastener for final assembly.

Pro Tip #3: Don''t Forget the Anti-Seize. Off-road environments are brutal, often involving mud, water, and salt. Before final assembly, apply a light coating of high-quality anti-seize or a thin layer of waterproof grease to the insert section of the connector and the threads of the mounting bolt. This prevents the steel-on-steel connection from "rust-welding" itself together over time. This small step ensures that when you actually need to remove your engine cage in two years, the connector slides apart effortlessly rather than requiring a sledgehammer and a torch.
